Product Description

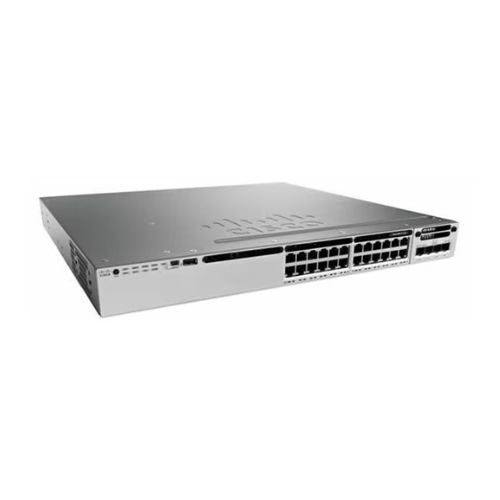

Cisco C9300-24T-E Catalyst 9300 Series Managed Switch is an enterprise network switch that is designed to be highly scalable, secure, and energy-saving with high performance. Created in advance of modern IT infrastructures, it forms the basis of secure, software-defined campus networks that are unmatched in reliability and flexibility of enterprise and mid-size businesses.
The switch has 24 Gigabit Ethernet ports and offers advanced routing of Layer 3, as well as a clear connection to wired devices. It uses Unified Access Data Plane (UADP) 2.0 ASIC created by Cisco, which provides better programmability, high performance, and reduced latency. The switch has the provision of modular uplink options, which enable the network administrators to increase bandwidth with business requirement variability.
The C9300-24T-E is configured to run on Cisco IOS XE, which is an open and programmable operating system that provides predictable security, automation, and analytics features. Cisco StackWise-480 technology is integrated to offer a total bandwidth of 480 Gbps, enabling several switches to act as a single, standard system to make it easier to manage and provide redundancy.
This switch is ideal in the digital transformation setting since it promotes operational efficiency, advanced energy management, end-to-end encryption, and Zero Trust security. It is designed with business-critical applications, which would make it highly available, low-latency, and manage traffic.
Key Features
-
24x 10/100/1000 Ethernet Ports: Provides a high-speed and dependable connection to enterprise networks.
-
Layer 3 Routing Features: Provides dynamic routing, multicast and policy-based networking.
-
Cisco UADP 2.0 ASIC: Guarantees efficient, secure and programmable performance.
-
Cisco StackWise-480 Support: The high scalability is up to 480 Gbps stacking bandwidth.
-
IOS XE Operating System: Modular, secure, and automation-compatible network software.
-
Better security: MACsec encryption and segmentation with TrustSec.
-
Energy Efficient Ethernet: Energy-efficient Ethernet does not sacrifice throughput.
-
Flexible Uplink Modules: 1G, 10G, or 25G connectivity can be optional.
-
Advanced QoS: Guarantees the best performance of applications that have high latency requirements.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model / Part Number |
C9300-24T-E |
|
Series |
Catalyst 9300 Series |
|
Switching Capacity |
Up to 208 Gbps |
|
Forwarding Rate |
Up to 154.76 Mpps |
|
Ports |
24 × 10/100/1000 Ethernet Ports |
|
Uplink Module Slots |
1 × Network Module Slot (Optional 1G/10G/25G) |
|
Layer Support |
Layer 3 |
|
Stacking Bandwidth |
Up to 480 Gbps (StackWise-480) |
|
DRAM |
8 GB |
|
Flash Memory |
16 GB |
|
MAC Address Table |
32,000 entries |
|
VLANs Supported |
Up to 4094 |
|
Operating System |
Cisco IOS XE |
|
Security Features |
MACsec, TrustSec, DHCP Snooping, Port Security |
|
Power Supply |
Dual redundant, hot-swappable |
|
Mount Type |
Rack-mountable (1U) |
|
Dimensions (W × D × H) |
17.5" × 17.5" × 1.73" |
|
Weight |
Approx. 7.4 kg |
|
Environment |
Operating Temp: 0°C to 45°C |
|
Warranty |
Limited Lifetime Hardware Warranty |
