Product Overview

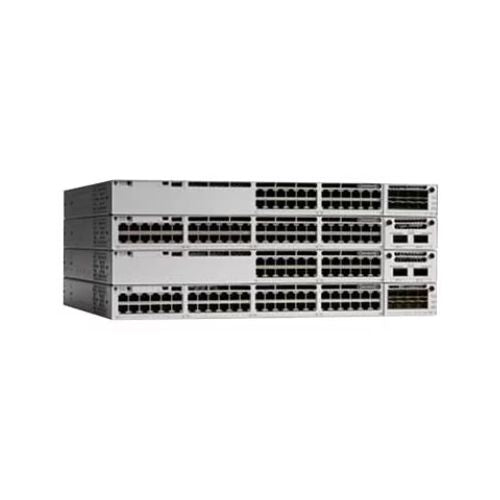

Cisco C9300-48u-e Catalyst 9300 series switch is the next generation of enterprise stackable access layer switches. This model provides high-performance, secure and scalable network connectivity with 48 Gigabit Ethernet UPUe ports, which offer incredible power and data access features to the current high-density settings.
The Catalyst 9300-48U-E is developed based on the data plane of unified access (UADP) 2.0 architecture of Cisco, which is designed to deliver high-performance, programmability, and flexibility to the operations of the digital transformation initiatives. It is also compatible with UPE (Universal Power over Ethernet), which enables it to power advanced devices like IP phones, wireless access points, cameras, and IoT devices without having to use more than one Ethernet cable.
This switch comes with Network Essentials software that offers powerful Layer 2 and Layer 3 features, security, and automation features. It also has a modular uplink and supports up to 480 Gbps, and redundant power supplies to achieve maximum uptime. The C9300-48U-E is designed to be scaled in the future, and it is ideally suited to enterprise, campus, and branch deployments that need to go intelligent and resilient in switching.
Key Features
-
48 Gigaflex Ethernet UPUE Ports: Provides power and data connectivity to high-demand devices and environments.
-
High Stacking Bandwidth: Cisco StackWise-480 technology supports 480 Gbps stack bandwidth.
-
Layer 3 Performance: Has Network Essentials software for dynamic routing, multicast and security.
-
UADP 2.0 Architecture: Provides better programmability, better performance, and software-defined capabilities.
-
Advanced Power Delivery: Delivers up to 60W in each port with Universal Power over Ethernet (UPOE).
-
Increased Security: It has TrustSec, MACsec encryption and segmentation that secure network data.
-
Scalability with Flexible Uplink Options: 1G, 10G, 25G or 40G uplink interface.
-
High Availability: There are redundant power supplies and fans that make sure that the network is operational all the time.
-
Energy Efficient: Pared down to power and cooling efficiency to save on the cost of operation.
-
Ideal for Enterprises: Ideal for enterprise and campus wireless and wired convergence.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco Systems |
|
Model |
C9300-48U-E |
|
Series |
Cisco Catalyst 9300 Series |
|
Port Configuration |
48 x Gigabit Ethernet (UPOE) |
|
Uplink Modules |
Modular (Supports 1G/10G/25G/40G) |
|
Switching Capacity |
Up to 208 Gbps |
|
Stacking Bandwidth |
Up to 480 Gbps (StackWise-480) |
|
Network Layer Support |
Layer 2 and Layer 3 |
|
Power Over Ethernet |
UPOE (Up to 60W per port) |
|
Software Type |
Network Essentials |
|
MAC Address Table |
32,000 entries |
|
VLAN Support |
4096 VLANs |
|
Redundancy |
Dual hot-swappable power supplies and fans |
|
Management Interfaces |
Console, USB, Ethernet management port |
|
Security Features |
TrustSec, MACsec, DHCP Snooping, Dynamic ARP Inspection |
|
Energy Efficiency |
Energy Efficient Ethernet (EEE) |
|
Form Factor |
Rack-mountable (1U) |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 17.5 in (approx.) |
|
Weight |
~17.5 lbs |
|
Operating Temperature |
0°C to 45°C |
|
Warranty |
Limited Lifetime Warranty |
