Product Overview

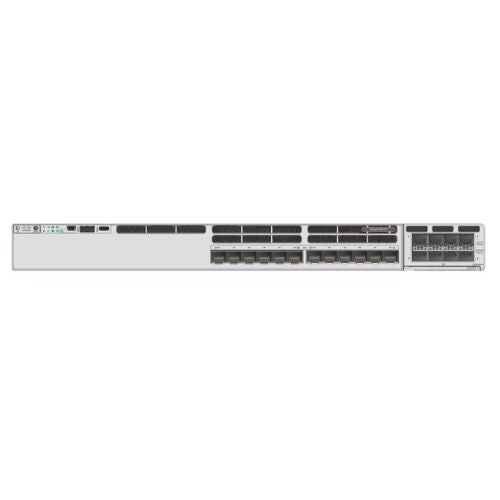

Cisco C9300X-12Y-E is a high-speed Layer 3 controlled switch belonging to the Catalyst 9300X Series which is intended to support enterprise-level networks which require fast data connection, scalability and security. This switch has 12 ports of SFP28 with 1G, 10G and 25G speeds that provide an unprecedented flexibility and performance to suit modern and data-intensive applications and high-bandwidth contexts.
The Cisco C9300X-12Y-E as a part of the industry leading Catalyst 9000 family is constructed on the capabilities of Cisco UADP 2.0 architecture, fundamentally guaranteeing high levels of programmability and software-defined networking (SDN) functionality. It offers greater network insight, division, and automation with Cisco DNA Center and Software-Defined Access (SD-Access).
This switch provides redundancy of its operation through hot-swappable power supplies and fans and provides continuous availability. It is capable of policy-based access control, connectivity, encryption (MACsec) and robust design to support TrustSec, which makes it useful in deploying enterprise, campus, and aggregation layers.
Key Features
-
High-Speed Uplink Flexibility: It has 12 SFP28 ports which are capable of 1G, 10G, and 25G connectivity.
-
Enterprise-Class Performance: Designed based on the Cisco UADP 2.0 architecture to create greater scalability and programmability.
-
Routing protocols: Routes routing protocols, such as OSPF, EIGRP, BGP, and VRF, to allow advanced network segmentation.
-
Greater Security: Includes MACsec encryption, TrustSec, and secure boot as protection of the network traffic and integrity.
-
Modular Power and Cooling: Hot-swerving, dual redundant power supplies and variable speed fans to maximize the uptime.
-
Software-Defined Ready: It is compatible with Cisco DNA Center to automate and analyze its networks.
-
High Reliability: Built to run 24/7 enterprise operations and hardware redundancy and resilient architecture.
-
Rack-Mountable Design: Small 1U size factor to fit in extremely dense systems.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
C9300X-12Y-E |
|
Series |
Catalyst 9300X Series |
|
Product Type |
Managed Layer 3 Network Switch |
|
Total Ports |
12 x SFP28 |
|
Supported Speeds |
1G / 10G / 25G |
|
Network Standard |
IEEE 802.3, IEEE 802.3ae, IEEE 802.3z |
|
Switching Capacity |
Up to 800 Gbps |
|
Forwarding Rate |
Up to 595 Mpps |
|
MAC Address Table |
32,000 entries |
|
Flash Memory |
16 GB |
|
System Memory (RAM) |
8 GB |
|
Layer Support |
Layer 3 |
|
Power Supply |
Dual redundant, hot-swappable |
|
Cooling |
Hot-swappable variable-speed fans |
|
Mounting Type |
Rack-mountable (1U) |
|
Security Features |
MACsec, TrustSec, Secure Boot |
|
Management Interface |
Cisco DNA Center, CLI, SNMP, Web UI |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
|
Dimensions (W x D x H) |
17.5 x 17.5 x 1.73 in (approx.) |
|
Weight |
7.3 kg (approx.) |
|
Warranty |
Limited Lifetime Warranty |
