Product Overview

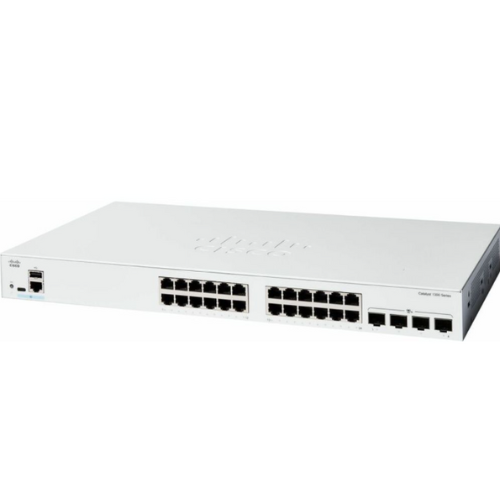

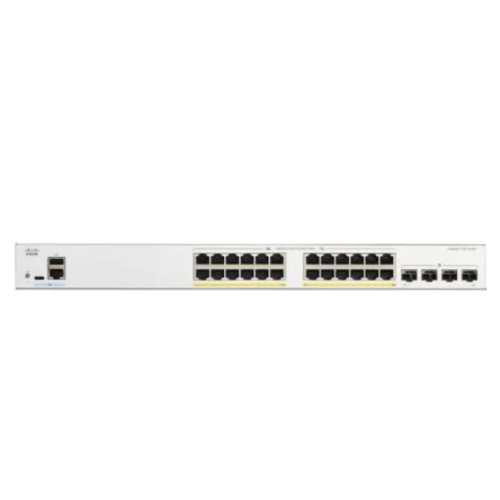

The Cisco Catalyst C1300-24T-4G is a managed Layer 3 switch that is designed to serve small and medium-sized businesses (SMBs) and enterprise branch offices. It provides affordable, performance, and state-of-the-art networking capabilities, thus a combination that is most appropriate to organizations with the need to have a reliable and secure solution for connectivity.
Key Features and Benefits
-
Extensive Port Density: C1300-24T-4G has 24 auto-sensing 10/100/1000BASE-T ports and 4 Gigabit SFP uplink ports.
-
Layer 3 Routing Capabilities: Layer 3 routing supports statistical routing, which allows efficient control of traffic across the VLANs and the improvement of network performance.
-
Intuitive Management Interface: The switch is controlled with the help of Cisco Business Dashboard and the mobile app that provides an easy-to-use interface to set up and maintain the network.
-
Fanless Design: The fanless design implies no noise production and therefore, can be used in sound-sensitive places.
-
Strong Security Interventions: Integrates the enhanced security measures to defend the business-sensitive transactions and data.
-
Energy-Saving Operation: It was constructed with power-saving properties to minimize the cost of operation and encourage sustainable business operations.
Technical Specifications
|
Feature |
Specification |
|
Ports |
24 x 10/100/1000BASE-T, 4 x Gigabit SFP |
|
Layer 3 Support |
Yes (Static Routing) |
|
Management Interface |
Cisco Business Dashboard & Mobile App |
|
Cooling |
Fanless |
|
Operating Temperature |
-5°C to 50°C |
|
Operating Humidity |
10% to 90% (non-condensing) |
|
Switching Capacity |
56 Gbps |
|
Forwarding Rate |
41.66 million packets per second (Mpps) |
|
Dimensions (W x D x H) |
445 x 240 x 44 mm |
|
Weight |
2.63 kg (5.80 lb) |
Product Information
Cisco Catalyst C1300-24T-4G is a fixed, managed, enterprise-class, Gigabit Ethernet Layer 3 switch that is targeted at SMBs and branch offices. It is based on a tailored Linux operating system with a user-friendly dashboard, which makes the networks easy to set up and manage. It has a fanless design that makes the switch operation silent, thus it can be used in sensitive noise environments. It has a switching capacity of 56 Gbps and a forwarding rate of 41.66 Mpps, which offers high performance to bandwidth-intensive applications. It also has enhanced security measures in the C1300-24T-4G to secure business-critical transactions and sensitive information and provide a secure networking environment.
The Cisco Catalyst C1300-24T-4G is suitable for small and medium-sized business settings, enterprise branch offices, and settings where non-audible operation is needed to fulfill the requirements of the current business operations.
