Product Overview

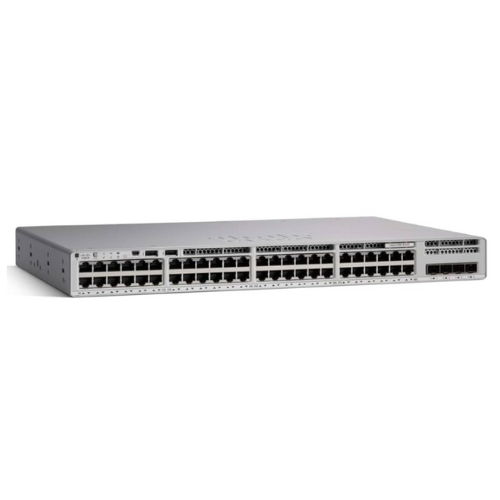

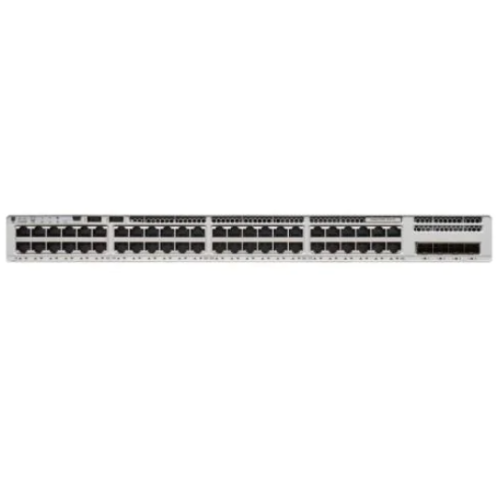

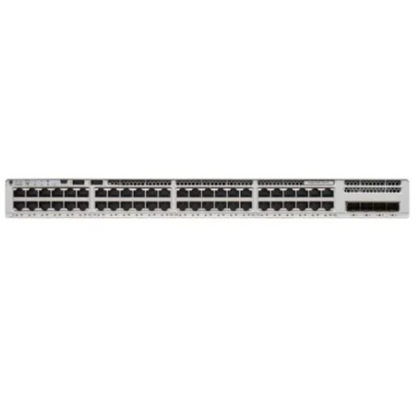

The Cisco Catalyst C9200L-48T-4X-E is a corporate-grade access switch that is designed to provide secure, resilient, and scalable connectivity to the current campus and branch networks. This model is developed as a component of the Catalyst 9200L family and has 48 Gigabit Ethernet data ports and four fixed 10-Gigabit SFP+ uplinks, which is why it is a perfect solution in high-density access deployment. The switch can perform high software with Cisco IOS XE and provide a simplified management operation under Cisco DNA at low costs.
Key Features and Benefits
High-Density Access
Support up to 48 end devices with complete Gigabit Ethernet speed, providing hassle-free connectivity to desktops, printers, and other networked devices.
Flexible Uplink Options
Use four built-in 10G SFP+ uplinks to combine the traffic to the distribution switch or the core switch to support high-speed backbone connectivity.
StackWise-160 Support
Bring together several switches into one logical node, which makes managing it easier, increases scalability, and introduces redundancy in case of hardware malfunctions.
Simplified Software Licensing
The switch is included with the Network Essentials license and provides core Layer 2 and Layer 3 services required in the majority of enterprise access environments.
Operational Efficiency
Take advantage of reduced power usage and a small 1RU form factor that is easy to install in wiring closets and requires less cooling.
Enterprise-Grade Reliability
It was designed to provide a stable performance, strong security capabilities, and long-term investment insurance as a part of the trusted Catalyst portfolio by Cisco.
Technical Specifications
|
Feature |
Specification |
|
Model |
Cisco Catalyst C9200L-48T-4X-E |
|
Downlink Ports |
48 × 10/100/1000 Mbps (RJ-45 data only, non-PoE) |
|
Uplink Ports |
4 × 10 Gigabit SFP+ fixed uplinks |
|
Switching Capacity |
104 Gbps |
|
Forwarding Rate |
77.38 Mpps (based on 64-byte packets) |
|
Stacking Support |
Cisco StackWise-160, up to 8 switches, 160 Gbps stack bandwidth |
|
Software License |
Network Essentials |
|
Power Supply |
Internal AC, maximum rated 125 W |
|
Dimensions (H × W × D) |
1.73 × 17.5 × ~13 in (44 × 445 × 330 mm) |
|
Weight |
Approx. 12.6 lb (5.7 kg) |
|
Operating Temperature |
–5°C to +45°C (23°F to 113°F) |
|
Operating Humidity |
5% to 90% non-condensing |
|
Rack Mounting |
1RU standard rack-mountable |
Product Information
The Cisco Catalyst C9200L-48T-4X-E provides the necessary network features that businesses require for secure and reliable access to the campus. The switch has 48 non-PoE Gigabit Ethernet ports; it is designed to be used in an environment that needs data connectivity without the burden of paying the extra money for PoE. Its four integrated 10G uplink ports make it easy to aggregate and perform backbone operations. However, its StackWise-160 technology improves resiliency and scalability capabilities by enabling more than one switch to operate as one.
This is a Cisco IOS XE-based model that is supplied with the Network Essentials software license, which offers core switching and routing capabilities that are appropriate in an enterprise access deployment. It has an efficient design that integrates high switching capacity and less power consumption, thus a good solution to any organization that wants cost-effective, space-saving, and reliable network infrastructure.
