Product Overview
The Cisco Catalyst 9500 Series Switches are the first enterprise and service provider switch line to be specifically designed with 100 Gigabit Ethernet in the industry. Catalyst 9500 Series was named as CRN 2017 Overall Network Product of the year, and it is designed to support security, IoT, and cloud, expanding upon the existing capabilities of the existing Cisco Catalyst 9000 Series to a table platform of a large scale.

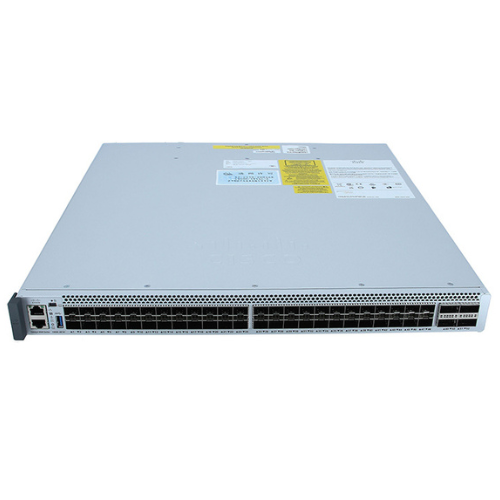

The C9500-48Y4C-A is a fixed-core switch that offers excellent performance, reliability and scalability at a low price in a 1U form factor, rack-mount format, which is an ideal building block to the next-generation, software-defined access and aggregation layer of the enterprise network.
Features & Benefits
Defense Across the Attack Continuum.
-
The Trustworthy Systems of Cisco do less with more with 256-bit if it is encrypted with MACsec.
-
Removed malware and on-the-fly threat containment help to protect your business prior to, during, and after an attack.
IoT Readiness
-
Features Image Line Audio Visual Bridging (AVB) and IEEE 1588 Precision Time Protocol.
-
Offers industrial, enterprise IoT profiling and secure onboarding of IoT devices.
Cloud Readiness
-
Network edge to digital applications Ready.
-
Simplifies the work of clouds and provides secure and scalable integration.
Foundational Technology
-
High-density of 100G, 40G and 25G Ethernet.
-
GIR and NSF/SSO to work continuously.
-
Enterprise RAID storage, redundant, platinum-rated, power supplies and fans contribute to its resilience.
Business Architecture Optimization Services.
-
Higher benchmarking and implementation, and incident trends analytics.
-
Enables optimum ROI and cost efficiency.
Technical Features
|
Feature |
Details |
|
Product Code |
C9500-48Y4C-A |
|
Product Type |
Layer 3 Switch |
|
Series / Line |
Cisco Catalyst 9500 Series |
|
Ports |
48 x 25 Gigabit Ethernet (SFP28) 4 x 100 Gigabit Ethernet (QSFP28 uplinks) |
|
Switching Capacity |
Up to 3.2 Tbps |
|
Forwarding Rate |
Up to 1 Bpps |
|
DRAM |
16 GB |
|
Flash Memory |
16 GB |
|
MAC Address Table |
Up to 82,000 |
|
IPv4 Routes |
Up to 212,000 (indirect + direct) Up to 90,000 host/ARP |
|
IPv6 Routes |
Up to 212,000 (indirect + direct) Up to 90,000 host entries |
|
QoS ACL Scale |
Up to 16,000 |
|
Security ACL Scale |
Up to 27,000 |
|
Flexible NetFlow Entries |
Up to 98,000 |
|
VLAN IDs |
4,000 |
|
Switched Virtual Interfaces (SVIs) |
4,000 |
|
Jumbo Frame Size |
9216 bytes |
|
Expansion Slots |
QSFP28 / SFP28 |
|
Power Options |
C9K-PWR-650WAC-R C9K-PWR-930WDC-R |
|
Power Consumption |
650 W |
|
Redundant Power Supply |
Supported |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 18.0 in (1RU) |
|
Weight |
21.96 lb |
|
Operating Temperature |
32° to 104°F (0° to 40°C) |
|
Storage Temperature |
-4° to 149°F (-20° to 65°C) |
|
Humidity (Operating) |
5% to 90% noncondensing |
|
Humidity (Non-operating) |
5% to 95% noncondensing |
|
Altitude |
Up to 13,000 feet (at 40°C) |
|
MTBF (hours) |
316,960 |
