Product Overview

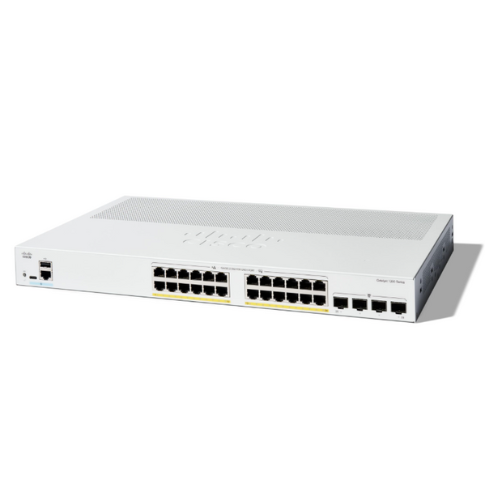

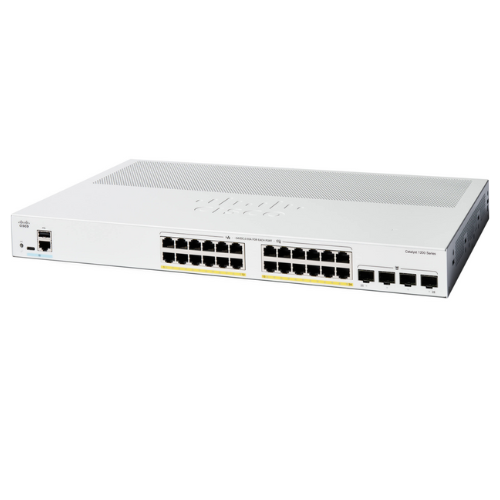

Cisco Catalyst C1200- 24P-4G is a trusted and business-level, clever switch that helps companies with secure and potent connectivity solutions in small and medium-sized companies. It has 24 Gigabit Ethernet PoE+ ports and 4 dedicated Gigabit SFP uplinks to provide the optimal power, performance, and simplicity combination. Having a small fanless size, the switch is very quiet and can perfectly fit in every office where noise and economy is important. With Layer 2 and Layer 3, which are critical features needed to support, the C1200-24P-4G offers the scalability to partition networks, offer additional security, and simplify operations, all with an easily usable management system.
Key Features and Benefits
-
Power devices comply with PoE+ - Excel play up to 195W of PoE+ power on 24 Gigabit ports, air nas, camera and wireless access point without further adapters.
-
Flexible uplink configurations - The device is configurable with four dedicated Gigabit uplink SFPs to provide stable connections with aggregation switches or a fiber backbone.
-
Designed to scale to SMB networks - Integrates into innovative Layer 2 function and provides fixed Layer 3 routing, facilitating easy administration of traffic, VLAN, and enhanced network performance.
-
Silent yet efficient operation - There is no fan and therefore there is no noise, so quietness is very important where noise is crucial as in offices and branches.
-
Thick security base - 802.1X authentication and access control lists (ACLs) are some of the features used to ensure the network is secure.
-
Efficient management - Provides a web-based GUI, CLI, and SNMP that aids those people or organizations in setting up and managing networks with simplicity.
-
Small perceived size - Occupies less space but retains enterprise levels of functionality.
Technical Specifications
|
Feature |
Specification |
|
Product Model |
Cisco Catalyst C1200-24P-4G |
|
Downlink Ports |
24 × 10/100/1000 Gigabit Ethernet (PoE+) |
|
Uplink Ports |
4 × Gigabit SFP |
|
PoE Power Budget |
195 W total (PoE+) |
|
Switching Capacity |
56 Gbps |
|
Forwarding Rate |
41.66 Mpps (64-byte packets) |
|
Packet Buffer |
1.5 MB (shared) |
|
Power Supply |
Internal PSU |
|
Cooling |
Fanless design |
|
Dimensions (H × W × D) |
44 × 445 × 299 mm (1.73 × 17.5 × 11.77 in) |
|
Weight |
3.53 kg (7.78 lb) |
|
Operating Temperature |
–5°C to 50°C (23°F to 122°F) |
|
Management Options |
Web-based GUI, CLI, SNMP |
|
Layer 3 Capabilities |
Static routing |
|
Security Features |
802.1X authentication, ACLs |
|
Form Factor |
Rack-mountable (1RU) |
Product Information
Cisco Catalyst C1200-24P-4G is a reliable and high-performance entry business-grade switch for small to medium organizations to utilize in their power infrastructure to power the modern workplace environment. It also supports 24 PoE+ ports, efficiently serving end points like VoIP telephones, wireless LAN access points and surveillance cameras without the added power injectors. The 195W PoE low-end is a specifically crafted, cost-effective purchase that is flexible in the amount of power it provides to the SMB setting.
Four Gigabit SFP uplink ports would provide high-speed connectivity to core/distribution networks and would facilitate free traffic as well as increase the network's capacity. The switch provides a robust enterprise-quality system, featuring VLAN support capabilities, static Layer 3 routing capabilities, ACL-based traffic control characteristics, and 802.1X network access control.
It is quite designed in the fanless architecture, making it suitable for offices, classrooms, and retail shopping areas that care about noise. The 1RU rack mount form is also a rack mountable unit that makes this unit very effective in terms of space utilization in the server rooms or network closets.
The C1200-24P-4G provides administrators with the confidence to deploy and run networks through a range of simple management options, which include a user-friendly web GUI, command-line interface, or SNMP. It is a powerful and reliable way for companies to use the Internet in a cost-effective, secure and energy-efficient manner.
