Product Description

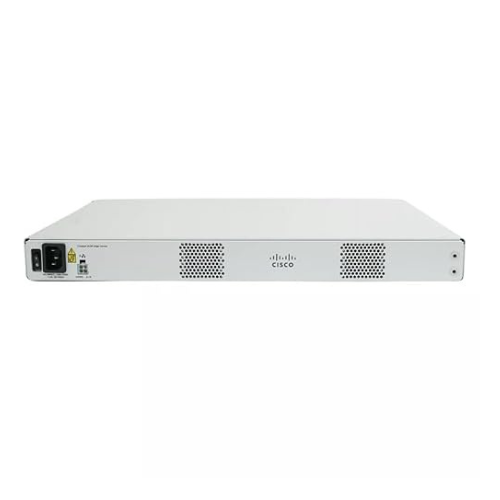

Cisco Catalyst C8200L-1N-4T is a secure edge router with high performance that targets small and medium-sized branch offices with the need for a dependable and scale-friendly WAN usability. This model, a component of Cisco Catalyst 8200 Series Edge Platforms, integrates SD-WAN, routing, and enhanced security applications into one compact format designed to support cloud-first networks.
The C8200L-1N-4T, based on the Cisco IOS XE, delivers a throughput of up to 500 Mbps of IPsec and SD-WAN, which makes it an ideal candidate within a distributed organization that wants to have reliable throughput and performance with secure delivery in all sites. It has four integrated Gigabit Ethernet WAN ports and one slot called NIM in case of expanding the interface, so the business is allowed to expand its needs based on the remaining capacity of the network requirement.
This router is practiced in an enterprise-level reliability, complete stack network services, deployed VPN and encrypted VPN connections, as well as intelligent distribution of traffic, and is intended for mission-critical operations that are destined to be performed at their best, whether situated in the information centre, branch, or on the cloud.
Key Features
-
4 x 1-Gigabit WAN interfaces to provide a versatile connection.
-
1 NIM slot for expansion and scalability.
-
500 Mbps IPsec/SD-WAN, optimized for secured branch implementation.
-
Integrated hardware features encryption of data fast and safely.
-
Cisco IOS XE Unified routing, automation, and programmability software.
-
Remote Layer 3 VPN, Quality of service, and visibility of traffic in much better formats.
-
Small 1U rackmount casing that is suitable in space-sensitive branch offices.
-
Quite low power consumed energy efficient with a majority of the cooling facilities.
Technical Specifications
|
Category |
Specification |
|
Model Number |
C8200L-1N-4T |
|
Product Type |
Secure Edge Router / SD-WAN Branch Platform |
|
Form Factor |
1U rackmount |
|
Processor |
4-core Intel x86 architecture |
|
Default Memory (DRAM) |
4 GB |
|
Maximum Memory |
Up to 32 GB |
|
Flash Storage |
Internal flash storage (expandable) |
|
WAN Interfaces |
4 × 1-Gigabit Ethernet ports (RJ-45/SFP combo) |
|
Expansion Slot |
1 × NIM (Network Interface Module) |
|
Maximum Throughput |
Up to 500 Mbps (IPsec/SD-WAN) |
|
Routing Protocols |
Static, OSPF, BGP, EIGRP, RIP, IPv4/IPv6 |
|
VPN Support |
IPsec, DMVPN, FlexVPN, SSL VPN |
|
Security Features |
Zone-based firewall, ACLs, 802.1X, encryption acceleration |
|
QoS and Policy Control |
Application-aware traffic shaping and prioritization |
|
Software Platform |
Cisco IOS XE with SD-WAN and routing feature set |
|
Power Supply |
Internal fixed AC |
|
Operating Temperature |
0 °C – 40 °C |
|
Storage Temperature |
–40 °C – 70 °C |
|
Humidity Range |
5 % – 85 % non-condensing |
|
Dimensions (H × W × D) |
1.73 × 17.25 × 11.8 in (4.39 × 43.81 × 29.97 cm) |
|
Weight |
Approx. 10 lb (4.54 kg) |
|
Certifications |
CE, FCC, UL, RoHS |
|
Warranty |
Cisco Limited Lifetime Warranty (varies by region) |
Why Choose the Cisco Catalyst C8200L-1N-4T?
C8200L-1N-4T helps organizations to achieve ease in the control of the WAN, at the same time ensuring the security of the performance demanded by the enterprise companies. It combines SD-WAN and processing in a single appliance, owing to which it lowers the deployment of numerous appliances, decreases the overall cost of ownership, and simplifies operations due to centralized orchestration tools of Cisco.
Its design is modular, it is highly available and uses encrypted performance, which makes it a dependable base to have its branch networks attached to the distributed cloud in such a way that they can provide strong reliability. Your business is growing, or switching to the hybrid model of work or to the SASE architecture, the C8200L-1N-4T can provide flexibility and defense to the new network's competitive advantage.
