Product Overview

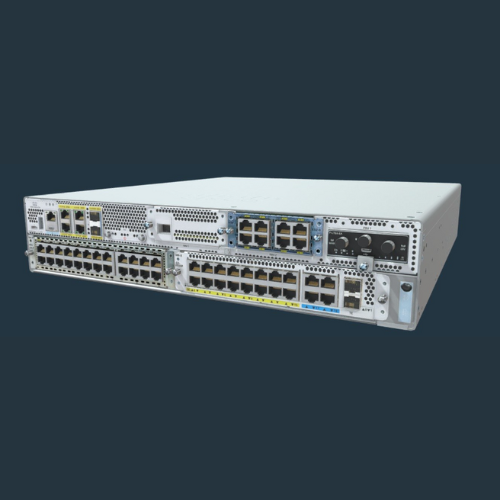

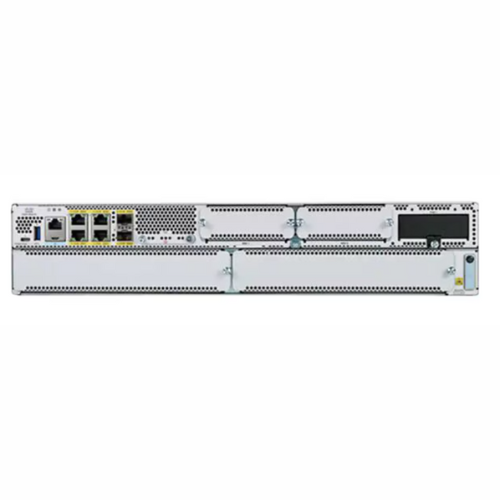

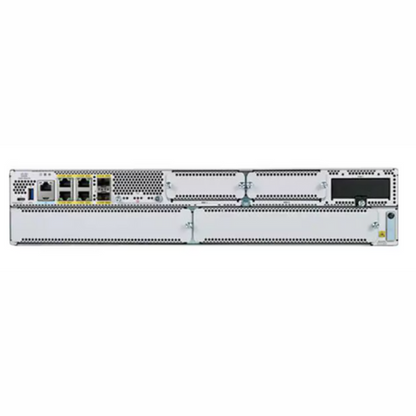

The Cisco Catalyst C8300-2N2S-4T2X Edge Platform is meant to support secure and high-performance WAN connectivity in enterprise branches and distributed networks. Based upon the enhanced IOS XE software of Cisco, this 2RU modular router provides the scalability, stability, and built-in security necessitating the current SD-WAN implementation. It has a flexible slot architecture as well as two 10-gigabit uplinks and redundant power offerings, which assure future-proof performance to organizations that require agility, reliability, and visibility at the network edge.
Key Features and Benefits
-
High-Performance Edge Routing: Achieve maximum forwarding and encrypted throughput of 19.7 Gbps and 18 Gbps, respectively, and support the delivery of applications in the most heavily trafficked loads.
-
SD-WAN-Optimized: The platform is made to simplify hybrid WAN connectivity, and it comprises secure and application-aware routing and advanced policy enforcement.
-
It provides Flexible Modularity Two Service Module (SM), two Network Interface Module (NIM) slots, and one Pluggable Interface Module (PIM) slot to change when WAN, LAN, and voice requirements change.
-
Scalable Uplink: Scaling to 10 GbE WAN ports and four 1 GbE RJ-45 interfaces. Support 10 GbE and 1 GbE WANs: Hybrid branch deployments. Support 10 GbE and 1 GbE fiber and copper connections.
-
Enterprise-Grade Reliability: Dual power supply is used and a field replaceable fan is implemented to provide high availability, which is an essential attribute in edge applications that use mission-critical.
-
The security hardware, such as accelerated encryption, secure remote access VPNs, and secure site-to-site VPNs, is built in and ensures the security of information without affecting the performance.
-
Investment Protection: Scalable memory/storage and Modular design: Scaling can be added later without forklift upgrades.
Technical Specifications
|
Feature |
Specification |
|
Form Factor |
2RU chassis |
|
Slots |
2 × Service Module (SM), 2 × Network Interface Module (NIM), 1 × Pluggable Interface Module (PIM) |
|
Embedded Interfaces |
2 × 10 GbE WAN (SFP/SFP+), 4 × 1 GbE RJ-45 LAN/WAN |
|
Throughput (Forwarding) |
Up to 19.7 Gbps |
|
SD-WAN/IPSec Throughput |
Up to 18 Gbps (large packets), ~6–8 Gbps (IMIX traffic) |
|
Memory |
8 GB DRAM (expandable) |
|
Storage |
16 GB M.2 SSD (expandable) |
|
Power |
Dual redundant power supplies (AC, DC, HVDC, or NEBS compliant options) |
|
Cooling |
Multiple field-replaceable fans with redundancy |
|
Software |
Cisco IOS XE, supporting routing, SD-WAN, and security services |
Product Information
Cisco Catalyst C8300-2N2S-4T2X is designed with enterprises in mind that are updating their branch networks to use cloud-first architectures. This platform is a high-speed, integrated security, flexible service modules platform, unlike fixed-function branch routers, providing a single scalable platform. The bandwidth it supports is its two 10-gigabit uplinks, necessary to support applications with heavy data demands, and modular slots can be customized with WAN accelerators, voice modules, or expensive computer resources.
The platform, which Cisco IOS XE powers, provides consistent management, automation, and security to distributed environments. Regardless of whether it is implemented as a single-edge router or as a component of a complete Cisco SD-WAN fabric, the C8300-2N2S-4T2X offers businesses the computational power, flexibility, and durability they require to provide secure connectivity between users, applications, and data in every location.
