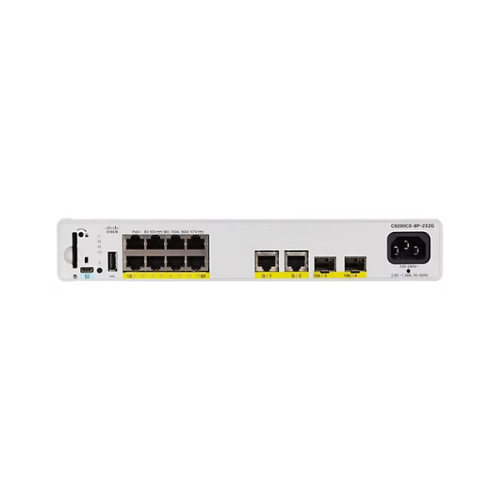

Product Overview
The Cisco Catalyst C9200CX-8P-2X2G-E is a small-sized enterprise-class switch that is designed to provide dependable connectivity in low-space-constrained settings. Specifically made to fit in branch offices, retail stores, small workspaces, or IoT-driven setups, it has a combination of quiet operation, often adaptable mounting, and enterprise-grade performance. The switch offers a multimix with 1G and 10G uplink information rates, which is compatible with a wide range of PoE information, and connects diverse wired and wireless connections simultaneously, settled within the framework of intelligent Cisco automation and assurance tools.
Key Features and Benefits
-
Small, Store-sized Implementation.
The switch is constructed with a light frame and without fans; it is suitable in any office environment, retail floor, and as a classroom where total silence is imperative.
-
Integrated PoE+ Support
Connect up to eight devices, including IP phones, access points, and cameras, directly to the switch without the need for a power adapter.
-
High-Speed Uplink Options
The switch, which is fitted with two 10G SFP uplinks and two 1G SFP uplinks, has the capacity to support growing network flows.
-
Enterprise-Grade Security
A superior set of functions, such as Cisco TrustSec, MACsec encryption, and secure segmentation, can withstand emerging threats to your network.
-
Streamlined Network administration.
The switch can be automated, managed by policy, and provide real-time assurance to enable ease of operation, managed by Cisco DNA Center.
-
Modern Operating System
Based on Cisco IOS XE, a programmable and modular operating system capable of model-driven telemetry, APIs, and other long-term software resilience.
Technical Specifications
|
Feature |
Specification |
|
Model |
Cisco Catalyst C9200CX-8P-2X2G-E |
|
Downlink Ports |
8 × 1G Gigabit Ethernet PoE+ ports |
|
Uplink Ports |
2 × 10G SFP+ ports 2 × 1G SFP ports |
|
PoE Budget |
Supports PoE+ (Power over Ethernet Plus) on all 8 downlink ports |
|
Switching Capacity |
56 Gbps |
|
Forwarding Rate |
41.66 Mpps |
|
Software Image |
Network Essentials (E) |
|
Operating System |
Cisco IOS XE |
|
Form Factor |
Compact, fanless design Supports wall-mount, rack-mount, or desktop use |
|
Management |
Cisco DNA Center, CLI, Web UI, SNMP |
|
Security Features |
Cisco TrustSec, MACsec encryption, segmentation |
Product Information
The Cisco Catalyst 9200CX Series, the C9200CX-8P-2X2G-E, is an extension of the power in challenging space-power-noise environments of the enterprise level of switching. It provides eight ports of PoE + downlink, which allows its smooth integration into the end devices system consisting of wireless access points, IP surveillance cameras, and collaboration endpoints.
The switch will have two 10 Gigabit uplinks (SFP+) and two 1 Gigabit uplinks (SFP) to provide high-speed, flexible connectivity to other layers of the core and distribution network. The fanless design makes it run silently, thus one can use it in an office, retail stores, or even in a branch where the working environment needs to be quiet.
The switch is based on Cisco IOS XE, offering programmability, model telemetry, and security upgrades, along with the adoption of Cisco DNA Center with end-to-end automation and monitoring. The C9200CX-8P-2X2G-E has strong security, excellent availability, and efficiency in its operations, which underlines the reliability of comfortable and secure access to the current digital-first organization.
