Product overview

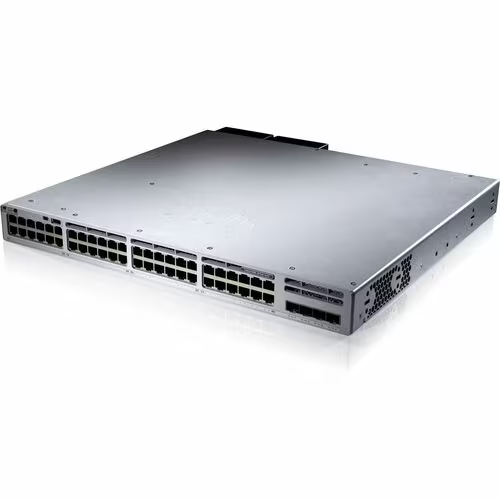

Cisco Catalyst C9300-48UN-M is a dense access switch that is designed to meet modern edge requirements of wireless and wired networks. Its 48 multigigabit copper ports automatically negotiate 1G/2.5G/5G/10G to avoid uplink bottlenecks with Wi-Fi 6/6E access points, high-throughput clients, and bandwidth-intensive IoT endpoints- and provide enhanced power over Ethernet operations to make installations simpler and reduce cabling clutter.
It was built on the Catalyst 9000 architecture and includes hardware-based security, abundant Layer 3 services, and automation-enable telemetry. Universal PoE support serves a big variety of devices such as APs, cameras, thin clients, and signage so you can expand, scale, and partition without any hesitation across campus and branch settings.
Key features
-
Multigig (1G/2.5G/5G/10G) copper access ports of high throughput edge devices.
-
To drive high-end points, simplified cabling is supported by Universal PoE (UPOE/UPOE+).
-
Portions of fast aggregation modular uplinks (10/25/40G, depending on the module) with flexibility.
-
Enterprise security based on 802.1X, policy-based segmentation, and MACsec (license/model-dependent).
-
Automation Self drive telemetry, model-driven, zero-touch onboarding.
-
Stacking support to scale, add resiliency, and have single-IP management.
-
Field-replaceable, redundant power and fans in a 1RU chassis with a quiet design that is very efficient.
Technical specifications
|
Category |
Details |
|
Model |
C9300-48UN-M |
|
Series |
Cisco Catalyst 9300 |
|
Access ports |
48 × 10/100/1000/2.5G/5G/10GBASE-T (multigig, auto-negotiation) |
|
PoE capabilities |
Universal PoE (UPOE/UPOE+); per-port power up to high-wattage levels (model/PSU dependent) |
|
PoE budget |
Large, shared budget; total available power varies by installed power supplies |
|
Uplinks |
Modular network module options (e.g., 4×10G SFP+, 4×25G SFP28, 8×10G, or 2×40G; module dependent) |
|
Stacking |
StackWise family stacking; multi-member stacks with high stack bandwidth |
|
Performance |
Non-blocking, wire-speed Layer 2/Layer 3 forwarding on all ports |
|
Security |
802.1X, DHCP Snooping, Dynamic ARP Inspection, ACLs; MACsec support (license/model dependent) |
|
QoS |
Hardware QoS with per-port classification, policing, and shaping |
|
Automation & APIs |
NETCONF/RESTCONF, gNMI, model-driven telemetry; programmable via open APIs |
|
Management |
Console and out-of-band Ethernet; CLI and GUI; SNMP |
|
Power supplies |
Dual, hot-swappable, load-sharing PSUs (redundancy supported) |
|
Cooling |
Field-replaceable fans with front-to-back airflow (model dependent) |
|
Form factor |
1RU rack-mount chassis |
|
Typical use cases |
High-density access for Wi-Fi 6/6E APs, PoE-powered IoT/AV, and performance-sensitive clients |
