Product overview

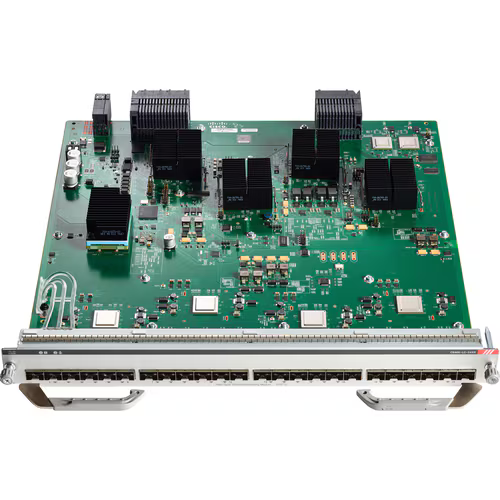

Cisco Catalyst C9400-LC-24XS= Cisco Catalyst 9400 late modular chassis high-density 10-Gigabit fiber line card designed to provide non-blocking performance at the core and distribution layers at the campuses. Having twenty-four SFP+ ports, with a wide compatibility environment of Cisco 10G optics- it provides flexibility in connecting the uplinks to the aggregation, server connections, and high speed inter switch connections without compromising on the resiliency or manageability.
It is a line card designed to be used in the architectural Catalyst 9400, and can be easily integrated into your existing fabric and supervisors to provide advanced Layer 2/Layer 3 services, segmentation, and policy frameworks as utilized in current enterprise networks. Security features anchored on hardware, telemetry, APIs that are automation-ready can enable you to scale with confidence and visibility and control.
Key features
-
High-speed aggregation and fiber uplinks 24 x 10G SFP+ ports.
-
Support of dual rates on select 1G SFP optics (port/optic dependent)
-
Hardware-based QoS throughput Non-blocking and deep buffers in bursty traffic.
-
Rich L2/L3 services: VLANs, routing, multicast, and policy services were in line with the Catalyst 9400.
-
Hardware border security such as ACLs and MACsec (license/optic dependant)
-
Consistency in operations with model-driven telemetry, programmability and automation capabilities.
-
Spare designation (=) denotes line card only, which is the ideal application in expansion or field replacement.
Technical specifications
|
Category |
Details |
|
Model |
C9400-LC-24XS= |
|
Product type |
24-port 10G SFP+ line card for Cisco Catalyst 9400 chassis |
|
Port types |
24 × SFP+ (supports 10G optics; backward compatible with select 1G SFP modules) |
|
Performance |
Wire-speed, non-blocking forwarding on all ports |
|
Features (L2/L3) |
VLANs, QoS, ACLs, routing (feature set depends on supervisor/software) |
|
Security |
Policy enforcement, ACLs; MACsec capability (license/optic dependent) |
|
Optics support |
Cisco 10G SFP+ and 1G SFP transceivers; copper/fiber options per approved list |
|
Compatibility |
Cisco Catalyst 9400 chassis with supported supervisors and software releases |
|
High availability |
Supports chassis-level redundancy and ISSU capabilities (system dependent) |
|
Management |
CLI, web UI, NETCONF/RESTCONF, model-driven telemetry, SNMP |
|
Cooling |
Chassis-integrated front-to-back airflow with field-replaceable fan trays |
|
Power |
Powered by chassis power supplies; consumption varies with optics population |
|
Operating environment |
Enterprise wiring closets and data rooms; temperature/humidity per chassis spec |
|
Form factor |
Modular line card; requires Catalyst 9400 chassis slot |
|
Bundle note |
“=” denotes spare SKU (no additional accessories included) |
|
Typical use cases |
Distribution/core uplinks, server aggregation, high-speed inter-switch links |
