Product Overview

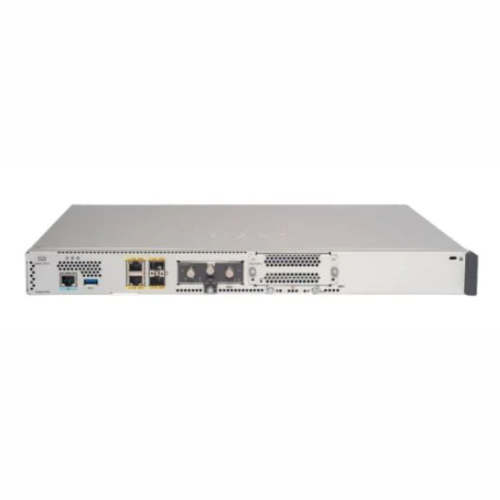

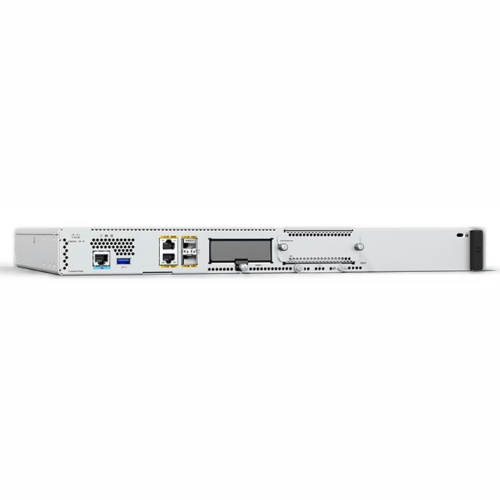

The Cisco Catalyst C8200-1N-4T is a single, compact form factor built on Cisco IOS XE software and powered by a multi-core architecture. It combines SD-WAN services with advanced routing and security services. The C8200-1N-4T provides the organization with a chance to simplify the operations of the branch, ready to grow in the future and meet the needs of new developments driven by the clouds with its modular design, flexible port, and hardware and software expansion options.
Key Features and Benefits
-
In-built SD-WAN and Routing: Enjoy the use of application-conscious routing, route-decision policies, and total integration to the SD-WAN fabric of Cisco.
-
Powerful Security: Protect branch traffic, powered by a next-generation firewall (NGFW), intrusion detection, URL filtering, and secure VPN service.
-
Connection Flexibility: The switch features four onboard WAN interfaces (two RJ-45 copper and two SFP fiber), allowing it to be deployed in various combinations.
-
High-Performance IPsec: This supports up to 1 Gbps IPsec throughput, which will deliver a secure and reliable WAN connection to the users of the branch.
-
Scalable Hardware: 8 GB DRAM and 16 GB is the standard memory and storage, and can be increased to 32 GB RAM and additional NvMe storage in cases where performance is required to satisfy the requirements of high-performance workloads.
-
Small and Simple Design: A 1RU rack-mount system that is available in AC with an efficient heat exchange was developed to be rapidly deployed in small places at the branch level.
Technical Specifications
|
Feature |
Specification |
|
Processor |
8-core Intel x86 CPU |
|
Default Memory |
8 GB DRAM (upgradeable to 16 GB / 32 GB) |
|
Default Storage |
16 GB M.2 USB (upgradeable with NVMe modules up to ~600 GB) |
|
Integrated WAN Ports |
4 × Gigabit WAN ports (2 × RJ-45, 2 × SFP) |
|
Expansion Slots |
1 × NIM slot, 1 × PIM slot |
|
IPsec / SD-WAN Throughput |
Up to 1 Gbps (depending on traffic profile) |
|
Routing Capacity |
~1.6M IPv4 routes with 8 GB DRAM (scalable to ~4M with 32 GB) |
|
Form Factor |
1RU rack-mountable (438 × 300 × 43 mm / 17.25 × 11.8 × 1.7 in) |
|
Power Supply |
AC input: 90–264 VAC, 47–63 Hz |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Product Information
Cisco Catalyst C8200-1N-4T is uniquely designed to be used in organizations that need secure, flexible, and future-proof WAN edge connectivity. Fundamentally, the device integrates SD-WAN and advanced routing solutions developed by Cisco, which help IT departments control application traffic intelligently between multiple WAN routes. Modular architecture enables growth through the addition of more interface cards, voice services, or 4G/5G LTE modules, as well as by providing long-term flexibility.
The platform provides four integrated WAN ports (two copper plus two fiber), which enable numerous network uplink configurations and leave the enterprises at liberty to implement on an assortment of infrastructures. The device's hardware capability, based on an 8-core Intel processor, offers scalable memory and storage options, ensuring consistent throughput and stability even in encrypted or busy traffic environments.
The C8200-1N-4T is developed to support branch offices and dispersed enterprises with the optimal balance between performance, security, and scalability, and simplifies operations, with SD-WAN control in the center. Its small 1RU size and low power consumption profile are what enable it to be a useful solution to space-constricted environments without having to sacrifice enterprise-class functionality.
