Product overview

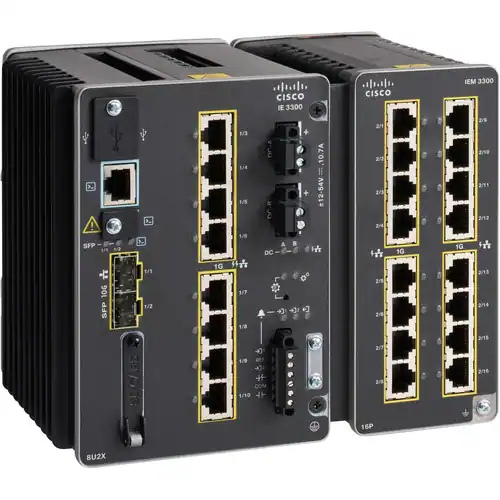

The Cisco Catalyst IE-3300-8U2X-E provides enterprise-scale switching with high wattage Power over Ethernet in a small hardened form. It has eight Gigabit copper ports with Universal PoE (UPOE/UPOE+) and two 1/10G SFP + uplinks and is capable of powering cameras, access points, sensors, and controllers as well as providing high-speed fiber backhaul to harsh and space-restricted environments like roadside cabinets, factory cells, utility sites, and sensors.
The IE-3300 family is based on Cisco IOS XE to ensure the operation of the entire IT to OT environment and integrate hardware-based security, policy-based segmentation, and industrial resiliency capabilities. There is a fanless, DIN-rail-mountable, IP30 rated metal chassis, higher temperature tolerance, and 2 DC power inputs that are designed to be used where 24/7 operations are required, dust, vibration and large temperature swings are the order of the day.
Key features
-
RJ-45 Rackmount, 10/100/1000 UPOE/UPOE+ with 8× 10/100/1000.
-
2x 1/10G SFP+ uplinks to use in high speed fiber backhaul or long reach.
-
Ruggedized: fanless, IP30 metal chassis, wall mount/DIN-rail, extended temperature.
-
Dual DC input redundant power; field friendly terminal block.
-
Industrial resiliency: fast ring recovery (REP/ERPS), MSTP/RSTP, hardware QoS, and storm control.
-
Time sync of OT: IEEE 1588v2 PTP(boundary/transparent clock).
-
Security & segmentation: With 802.1X, ACLs, DHCP Snooping, DAI, and MACsec (license/model dependent) support.
-
It has automatable operations, including IOS XE, model-driven telemetry, NETCONF/RESTCONF, CLI, and SNMP.
Technical specifications
|
Category |
Details |
|
Model |
IE-3300-8U2X-E |
|
Series |
Cisco Catalyst IE3300 (rugged, industrial Ethernet) |
|
Downlink ports |
8 × 10/100/1000BASE-T with UPOE/UPOE+ (per-port high wattage; shared budget) |
|
Uplink ports |
2 × SFP+ supporting 1G/10G |
|
PoE budget |
Shared platform budget; total available power depends on DC input capacity and configuration |
|
Software bundle |
Network Essentials (–E) |
|
Switching performance |
Wire-speed Layer 2/Layer 3 forwarding; hardware QoS, policing, and shaping |
|
Industrial features |
IEEE 1588v2 PTP, REP/ERPS, MSTP/RSTP, DHCP Option 82, Port Mirroring |
|
Security |
802.1X, MAB, IPv4/IPv6 ACLs, DHCP Snooping, Dynamic ARP Inspection; MACsec capable (license/model dependent) |
|
Management & automation |
Cisco IOS XE CLI, web UI, SNMP, NETCONF/RESTCONF, model-driven telemetry |
|
Power inputs |
Dual DC terminals (redundant) |
|
Cooling |
Fanless passive cooling |
|
Enclosure |
IP30 rated metal chassis; conformal coating options (model dependent) |
|
Mounting |
DIN-rail and wall-mount options |
|
Operating temperature |
–40 °C to +70 °C (typical IE3300 class) |
|
Humidity |
5–95% non-condensing (typical industrial spec) |
|
Use cases |
Roadside/transport cabinets, manufacturing cells, utilities/substations, oil & gas pads, outdoor enclosures |
