Product overview

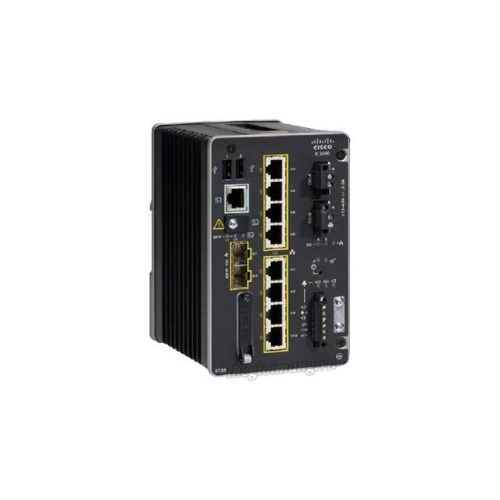

Cisco Catalyst IE-3400-8P2S-E is an enterprise-grade switching that has been designed to cater to demanding and space-constrained conditions. Its eight Gigabit copper ports provide PoE+ and two Gigabit SFPs to support fiber or long-run uplinks, power cameras, sensors, access points and controllers, and ensure deterministic and secure connections at the plant floor, roadside cabinets, or at remote utility locations.
The IE-3400 family is developed on the Cisco IOS XE platform to ensure uninterrupted operations IT to OT and offers the hardware-founded security and policy-managed segmentation as well as industrial resiliency. Its IP30, DIN-rail-mountable, fanless, metal chassis, wider operating temperature and two DC power inputs are designed with a foolproof 24/7 service in harsh environments.
Key features
-
8× 10/100/1000 RJ-45 with PoE+ to drive edge devices; 2× 1G SFP with fiber/long-reach uplinks.
-
Ruggedized design: Fanless, IP30 metal chassis, DIN-rail/wall mount, extended temp operation.
-
Dual DC inverting power redundancy; field-friendly terminal block.
-
Industrial resiliency fast ring recovery (REP/ERPS), MSTP/RSTP and per-port QoS.
-
Time sync OT: IEEE 1588v2 PTP (boundary/ transparent clock) support.
-
Security and segmentation: 802.1X, ACLs, DHCP Snooping, DAI, and MACsec (license/model dependent).
-
Operations that can be automated: IOS XE, NETCONF/RESTCONF, model-driven telemetry, CLI, and SNMP.
-
Edge-ready performance: non-blocking switching hardware, QoS, and storm control.
Technical specifications
|
Category |
Details |
|
Model |
IE-3400-8P2S-E |
|
Series |
Cisco Catalyst IE3400 (rugged, industrial Ethernet) |
|
Hardware ports |
8 × 10/100/1000BASE-T PoE+ (up to 30 W/port, shared budget) |
|
Uplinks |
2 × 1G SFP (fiber or copper SFPs; uplink or access as designed) |
|
PoE power budget |
Platform supports shared PoE+ budget; total available depends on DC input capacity and configuration |
|
Switching performance |
Wire-speed Layer 2/Layer 3 forwarding; hardware QoS, policing, and shaping |
|
Software bundle |
Network Essentials (–E) feature set |
|
Industrial features |
IEEE 1588v2 PTP, REP/ERPS, MSTP/RSTP, DHCP Option 82, Port Mirroring |
|
Security |
802.1X, MAB, IPv4/IPv6 ACLs, DHCP Snooping, Dynamic ARP Inspection; MACsec support (license/model dependent) |
|
Management |
Cisco IOS XE CLI, Web UI, SNMP, NETCONF/RESTCONF, model-driven telemetry |
|
Power inputs |
Dual DC terminals (redundant); input voltage range suitable for industrial DC sources (site dependent) |
|
Cooling |
Fanless passive cooling |
|
Enclosure |
IP30 rated metal chassis; conformal coating options (model dependent) |
|
Mounting |
DIN-rail and wall-mount options |
|
Operating temperature |
–40 °C to +70 °C (typical IE3400 class) |
|
Humidity |
5–95% non-condensing (typical industrial spec) |
|
Use cases |
Transportation cabinets, manufacturing cells, utilities substations, oil & gas pads, outdoor enclosures |
