Product Overview

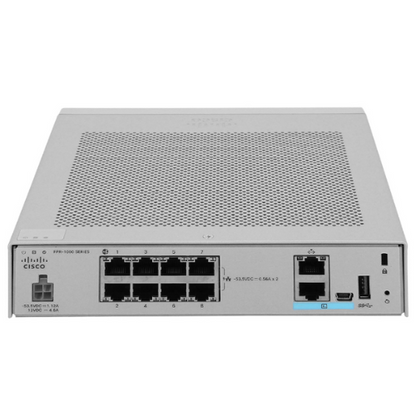

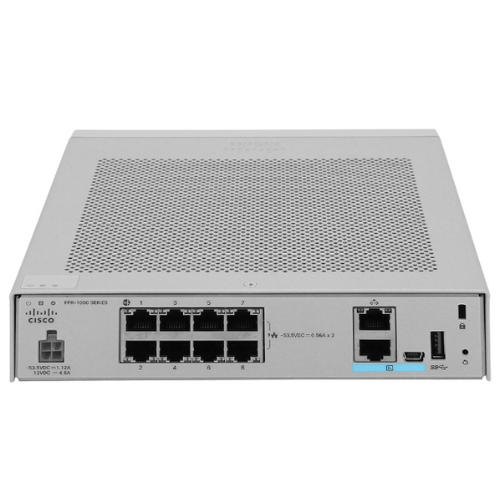

The Cisco Firepower 1010 ASA (FPR1010-ASA-K9) is a small-sized next-generation solution, which is set to ensure strong security for small to medium-sized businesses and branch offices. It utilizes the well-established Adaptive Security Appliance (ASA) software from Cisco, along with powerful Firepower Threat Defense (FTD) features, to provide comprehensive security against contemporary cyber threats, offering the flexibility to deploy it effectively. Its quietness and lack of fans in the design mean that it can be integrated smoothly into noise-sensitive locations and therefore can be trusted to be a secure and high-performance networking solution with a small form factor in organizations that require safe and high-performance networking.
Key Features and Benefits
-
Flexible Security Deployment: Supports both ASA and Firepower Threat Defense software, enabling organizations to tailor security capabilities to meet their specific operational needs.
-
Advanced Threat Protection: Recognizes and blocks malware, ransomware, phishing, and other sophisticated threats to protect business-critical information.
-
High-Performance Networking: Enables high throughput and connection management to ensure the network is performing well even with high traffic.
-
Silent, Fanless Design: Provides silent operation, which is required when the product is deployed in the office, branch outlets, or other noisy areas.
-
Increased Connections: With 8 Gigabit Ethernet ports, it is easy to connect a variety of devices through the network, and with ease.
-
Secure Remote Access: IPsec VPN will provide the capabilities of remote users and branch offices' communication security.
Technical Specifications
|
Feature |
Specification |
|
Form Factor |
Compact desktop (wall-mountable) |
|
Network Interfaces |
8 x 1000BASE-T (Gigabit Ethernet) |
|
Management Interfaces |
1 x 1000BASE-T, 1 x Serial console (RJ-45), 1 x USB 3.0 Type-A |
|
Power Supply |
External AC adapter (100–240V AC) |
|
Firewall Throughput |
2 Gbps (UDP), 1.4 Gbps (Multiprotocol) |
|
VPN Throughput |
500 Mbps (IPsec) |
|
Concurrent Connections |
100,000 |
|
New Connections per Second |
25,000 |
|
VPN Peers |
75 |
|
Storage |
200 GB SSD |
|
Dimensions (H x W x D) |
1.82 x 7.85 x 8.07 inches |
|
Weight |
2.2 kg (4.85 lbs) |
Product Information
The Cisco Firepower 1010 ASA (FPR1010-ASA-K9) is an advanced security solution that has a small footprint, making it user-friendly and providing enterprise-level protection in a desktop size. Organizations can capitalize on their dual software support, which can either be ASA or Firepower Threat Defense (FTD), to align their security features with the network specifications.

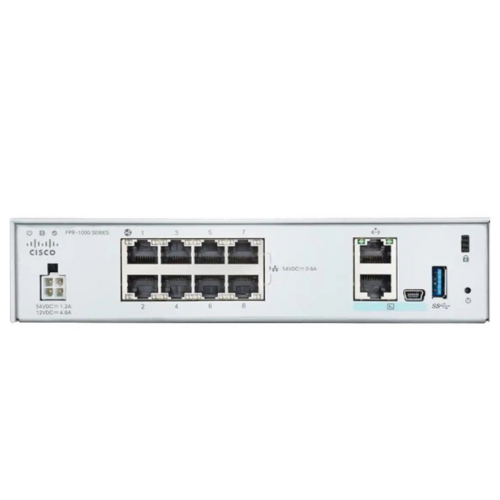

The device has 8 Gigabit Ethernet ports, which provide flexibility in the connection of small office and branch locations. It also has a high-speed firewall (2 Gbps UDP, 1.4 Gbps multiprotocol), IPsec VPN speeds (500 Mbps), which offers high traffic processing, and secure remote access. The Firepower 1010 ASA has the capacity to sustain 100,000 simultaneous connections and 25,000 new connections per second, and this is enough to make the network stable when the traffic is high.
The design of the architecture has been made fanless, thus giving it silent operations and allowing it to be installed in areas of low noise. A standardized power supply control is driven by an external AC power supply, allowing for flexible control of power through a power input with varying voltages. Generally, the FPR1010-ASA-K9 is an enhanced networking solution with excellent performance, an extensive range of coverage, and a security system in a small to medium-sized business and branch office installation.
