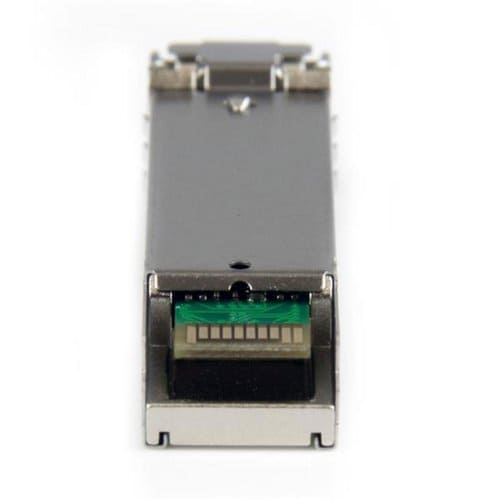

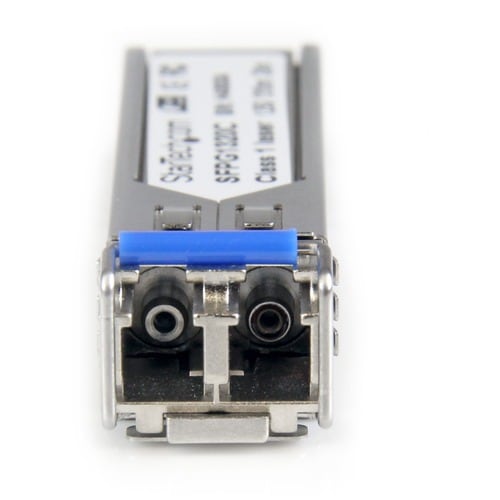

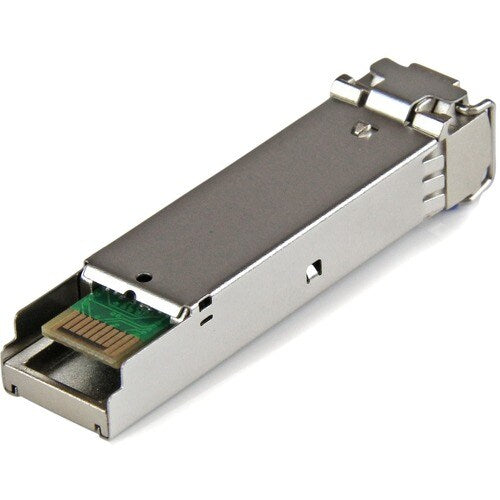

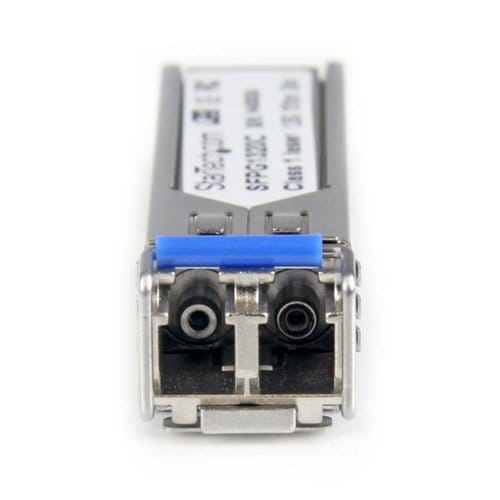

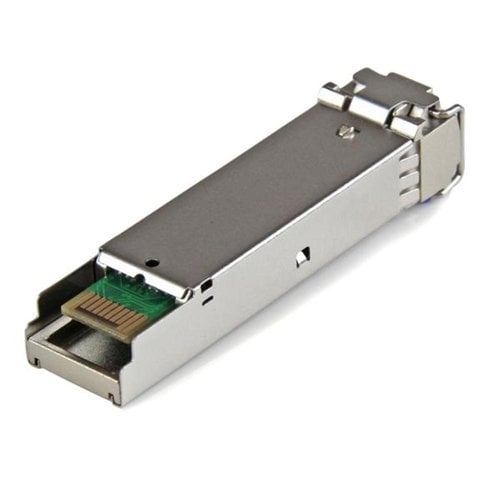

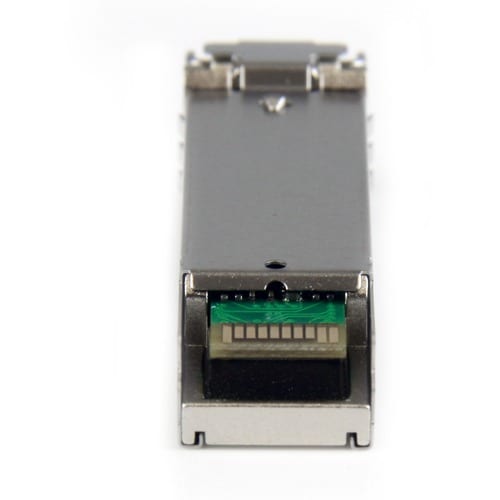

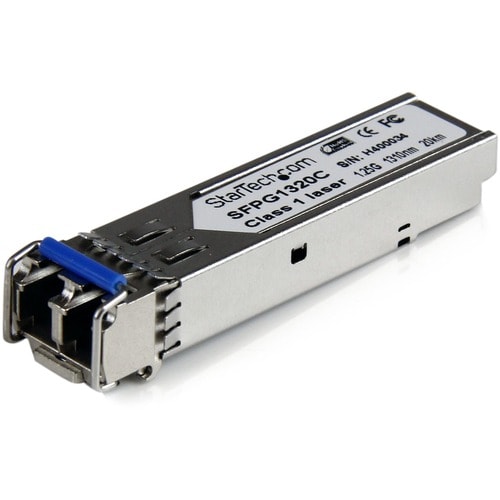

The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).
Technical Specifications:
- Wavelength: 1310nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 20 km (12.4 mi)
- MTBF: 2,722,277 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
More from the Manufacturer
Key Features
- 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, IE2000, IE4000, C9300, IE3000 and others
- TECHNICAL SPECS: 1000BASE-LH | 1 Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 20km (12.4mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Dimensions
| Height | 1.25 inches |
|---|---|
| Width | 4 inches |
| Length | 5 inches |
| Weight | 0.1 pounds |
| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable |
| Form Factor | Hot-pluggable |
| Network Technology | 1000Base-LH |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | SFPG1320C |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 1.25 Gbps Gigabit 1310nm GBIC SM LC Fiber SFP Transceiver w/ DDM - 20km |
| Brand Name | StarTech.com |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LH Network |
| Total Number of Ports | 1 |
| Network Technology | 1000Base-LH |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Additional Information |
|
| Compatibility |
Cisco Firepower Switches:
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Weight (Approximate) | 0.04 lb |
| Height | 0.4" |
| Width | 0.5" |
| Depth | 2.4" |
