Product Overview

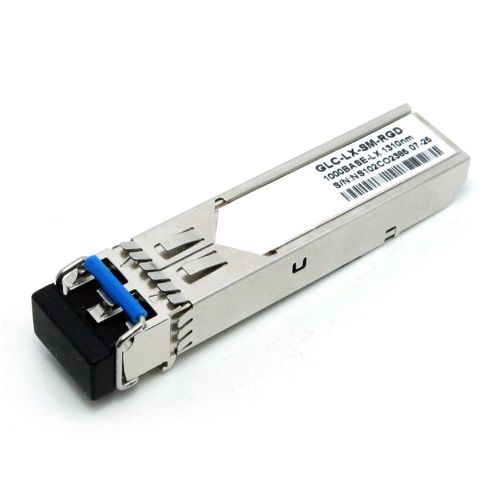

Cisco GLC-LX-SM-RGD is a 1000BASE-LX/LH Small Form-Factor Pluggable (SFP) transceiver module that can be used to provide a reliable connection in a harsh environment with gigabit Ethernet. This transceiver is designed to work in industrial and extended temperature environments, and it offers uniform performance under challenging environments like factory floors, outdoor installations, and transportation networks.
The module has a wavelength of 1310nm, and the module supports single-mode fibre (SMF) connection over a distance of up to 10 kilometres, which makes it the best module to be used in data transmission over a long distance. With the Digital Optical Monitoring (DOM) option, network administrators are able to measure optical parameters such as Temperature, voltage, and optical power in real time so that they can maintain the optimum level of network health and maintenance.
The Cisco GLC-LX-SM-RGD is rugged, compact, and fully compliant with IEEE 802.3z and SFP MSA standards, which provides high-quality connectivity with high reliability and is mission-critical.
Key Features
-
Rugged Design: Built for Extreme temperatures and severe environmental conditions.
-
Long-distance connectivity: Single-mode fibre (SMF) supports 10 km transmission.
-
Low Compatibility: Fully compatible with IEEE 802.3z 1000BASE-LX/LH standards and SFP MSA.
-
Digital Optical Monitoring (DOM): Provides real-time monitoring of optical performance measures.
-
Duplex LC Connector: Basic interface to simple set-up and stable connections of fibres.
-
Wide Temperature spread: -40 °C to +85 °C, works well in industrial applications.
-
Hot-Swappable Module: It is easy to replace without interfering with the operations of the system.
-
Optical Wavelength: This is used at 1310 nm, which is best suited for long-haul data transmission.
-
Low Power Consumption: Energy-efficient design. This will guarantee a low level of heat generation.
-
Cisco Quality Assurance: Supported by the extensive testing of Cisco on performance and reliability.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco Systems |
|
Model |
GLC-LX-SM-RGD |
|
Product Type |
SFP Transceiver Module |
|
Network Technology |
1000BASE-LX/LH Gigabit Ethernet |
|
Data Transfer Rate |
1 Gbps |
|
Wavelength |
1310 nm |
|
Fiber Type |
Single-Mode Fiber (SMF) |
|
Connector Type |
Duplex LC/UPC |
|
Maximum Transmission Distance |
10 km |
|
Digital Optical Monitoring (DOM) |
Supported |
|
Temperature Range |
-40°C to +85°C (Rugged/Industrial Grade) |
|
Form Factor |
Plug-in Module (SFP) |
|
Compliance Standards |
IEEE 802.3z, SFP MSA |
|
Power Consumption |
<1W |
|
Mounting Type |
Hot-Swappable |
|
Operating Voltage |
3.3V DC |
|
Application |
Industrial Networks, Transportation, Outdoor Systems |
|
Warranty |
Limited Lifetime Warranty |
