Product Overview

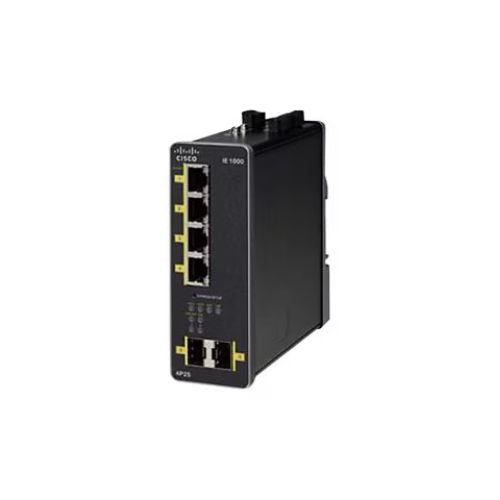

Cisco IE-1000-4P2S-LM is a rugged, small, and low-energy industrial Ethernet (IE) 1000 Series Switch made for alligator environments and mission-critical applications. This managed switch is designed to provide good network connectivity at the edge and operate with Gigabit and Fast Ethernet so that the transmission of data between the industrial networks is fast, smooth, and effective.
IE-1000-4P2S-LM provides copper and fiber connection opportunities and has four 10/100/1000BASE-T PoE ports and two SFP uplink slots. It also supports Power over Ethernet (PoE), up to 30W per port, which is appropriate to power IP cameras, wireless access, sensors in the industry, among others, without the need for adding extra power lines.
It includes a strong 4854 V DC power input and 128 MB RAM, which makes the switch capable of operating under heavy industrial conditions with no performance flutter. It is designed as an open case and fanless DIN-rail which offers silent operation and long-term stability even in extreme environments.
The switch takes the Cisco Industrial Ethernet Software that consists of easy management features, improved security, and network diagnostics. It is also compatible with the existing industrial networks and has a stable performance in such industries as manufacturing, transportation, and utilities.
Key Features
-
6-Port Industrial Switch: This has 4 Gigabit copper ports and 2 SFP uplink ports, which have fiber connectivity.
-
PoE Support: Powers are connected directly to Ethernet-connected devices such as IP cameras and wireless access points.
-
High-Speed Network: Provides Gigabit support of Ethernet to create a high-speed, reliable network.
-
Rugged Industrial Design: This design is meant to withstand extreme temperatures and be durable.
-
Small Size: DIN-rail style of small size to fit control cabinets and industrial panels.
-
Safe and Timely: It involves improved Cisco security and QoS of data integrity and traffic prioritization.
-
Flexible Power Operation: Its power source is industrial 48-54V DC.
-
Silent operation: Fanless design to be used to make it quiet and produce less noise.
-
Streamline Management: Enables Cisco industrial Ethernet Software, which is simple to monitor and set up.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
IE-1000-4P2S-LM |
|
Series |
Industrial Ethernet 1000 Series |
|
Ports |
6 Total (4 × 10/100/1000BASE-T + 2 × SFP) |
|
Port Type |
Gigabit Ethernet (Copper & Fiber) |
|
PoE Support |
Yes, up to 30W per port |
|
RAM |
128MB |
|
Flash Memory |
64MB |
|
Switching Capacity |
12 Gbps |
|
Forwarding Rate |
8.9 Mpps |
|
Power Input |
48–54V DC |
|
Mounting Type |
DIN-Rail Mountable |
|
Management |
Cisco Industrial Ethernet Software, Web GUI, CLI |
|
Operating Temperature |
-40°C to 75°C (-40°F to 167°F) |
|
Cooling System |
Fanless |
|
Power Consumption |
Max 65W |
|
Dimensions (H × W × D) |
5.4 × 4.5 × 2.3 in (137 × 115 × 58 mm) |
|
Weight |
2.2 lb (1 kg) |
|
Enclosure Rating |
IP30 |
|
Compliance |
IEEE 802.3, 802.3u, 802.3ab, 802.3af/at |
|
Warranty |
Limited Lifetime Warranty |
