Product Overview

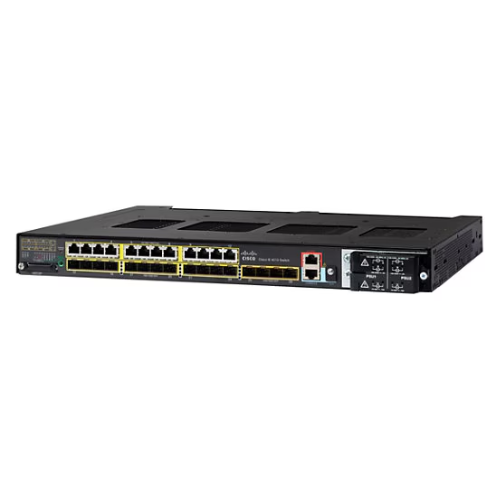

The Cisco IE-4010-16S12P Industrial Ethernet Switch of the Cisco IE 4000 series is developed to provide high-performance, steady, and reliable network connectivity to industrial and mission-critical settings. This switch has been designed with rugged reliability in harsh environments and advanced Layer 3 manageability, along with PoE/PoE+ capability with multiple ports, and is intended to be used in manufacturing, utilities, transportation, and intelligent city networks.
The IE-4010-16S12P is highly flexible with 16 Gigabit SFP and 12 Gigabit Ethernet copper ports (10/100/1000), allowing it to be used in mixed media deployments. Cisco IOS software guarantees features that are enterprise-class, like security, scalability, and network resiliency, and the software license of LAN Base provides necessary Layer 2 and Layer 3 features as well to manage traffic effectively.
The switch is designed with an industrial-level performance and has a long temperature operating range with a fanless DIN rail mounting capability, which makes it very reliable in extreme environments.
Key Features
-
Industrial-Grade Design Rugged and heavy-duty: It can work in extremely hot or cold temperatures and environments.
-
Large Port Density: 16 octet 1G SFP fiber and 12 octet 10/100/1000 copper setups of the network, so that they can be configured as needed.
-
Layer 3 Managed Switching: with advanced routing functions to control traffic efficiently.
-
LAN Base Software: Provides the basic switching and Layer 3 routing capabilities to industrial networks.
-
PoE/PoE+ Support: Powers industrial equipment such as IP cameras, sensors, and access points directly over Ethernet.
-
Scalable Performance: Supports high throughput, network expansion, and redundancy.
-
Increased Security: Supports IEEE 802.1X, ACLs, and DHCP snooping to ensure safe transit.
-
Operation Fanless: lets the cooler work in complete silence and with no dust.
Technical Specifications
|
Specification |
Detail |
|
Model |
Cisco IE-4010-16S12P |
|
Product Series |
Cisco IE 4000 Series |
|
Switching Capacity |
128 Gbps |
|
Forwarding Rate |
95.2 Mpps |
|
Total Ports |
28 Ports (16x SFP + 12x RJ-45) |
|
SFP Ports |
16 × 1G SFP |
|
Copper Ports |
12 × 10/100/1000 Mbps (PoE/PoE+) |
|
Layer Support |
Layer 2 and Layer 3 |
|
Software License |
LAN Base |
|
PoE Power Budget |
Up to 240W (depending on configuration) |
|
Redundancy Features |
Ring, MSTP, REP, HSRP |
|
Security |
802.1X, DHCP Snooping, Port Security, ACLs |
|
Mounting Type |
DIN Rail / Wall Mount |
|
Cooling System |
Fanless Design |
|
Operating Temperature |
–40°C to +75°C |
|
Input Voltage |
DC power input (redundant supported) |
|
Dimensions (Approx.) |
4.45 x 17.5 x 12.8 inches |
|
Weight (Approx.) |
9.7 lbs (4.4 kg) |
|
SKU / Part Number |
IE-4010-16S12P |
