Product overview

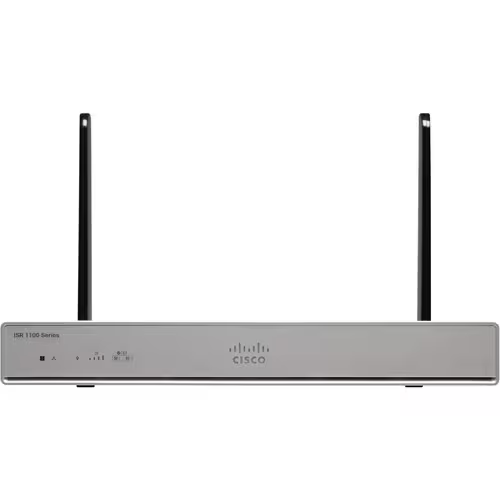

The Cisco ISR C1111-8P is a converged branch router with secure WAN connectivity, an 8 port PoE+ Gigabit switch, and is intended to be used in small offices, retail locations, and remote offices. It provides business-level routing, VPN, and application visibility in a small, silent enclosure, and drives phones, access points, cameras, and sensors directly in the LAN ports to make cabling simple and eliminate clutter.
The C1111-8P is designed based on Cisco IOS XE and supports SD-WAN policy-based, enhanced security, and rich telemetry to perform proactive operations. Flexible WAN systems allow the use of copper or fiber or optional cellular as a primary or secondary link and built-in hardware crypto engines ensure that IPsec VPNs are also responsive under load.
Key features
-
Built-in 8-port Gigabit PoE + switch (to 30 W per port; common budget) to APs, phones, and cameras.
-
Flexible WAN: RJ-45 and SFP options; is dual provider compatible and may be configured in failover.
-
SD-WAN prepared with application conscious routing, division and centralized policy.
-
In-house security: IPsec VPN, Zone-Based Firewall, ACLs and secure boot.
-
Visibility of applications and Quality of Service (Clearly voice/video) and business prioritization of traffic.
-
Small, low profile design with rack-mount option to be installed easily.
-
Day-2 amiable: model-driven telemetry, APIs and zero-touch provisioning alternatives.
Technical specifications
|
Category |
Details |
|
Model |
C1111-8P |
|
Platform |
Cisco ISR 1100 Series |
|
LAN switch |
8 × 10/100/1000BASE-T PoE+ (IEEE 802.3at; up to 30 W/port; shared PoE budget, PSU dependent) |
|
WAN interfaces |
1 × GE RJ-45 WAN; 1 × GE SFP (model/region dependent; can be used for fiber handoff) |
|
Cellular |
Optional LTE/5G via compatible variants or add-on (model dependent) |
|
Throughput class |
Enterprise branch performance with hardware crypto; actual throughput depends on features enabled |
|
Routing & services |
Static, RIP, OSPF, EIGRP, BGP (license dependent); NAT, DHCP, DNS proxy |
|
SD-WAN |
Policy-based fabric, app-aware routing, segmentation, centralized management |
|
Security |
Zone-Based Firewall, IPsec/IKEv2, GRE, DMVPN, ACLs, secure boot, image signing |
|
QoS & visibility |
NBAR-based app recognition, hierarchical QoS, performance monitoring |
|
USB/console |
USB console, RJ-45 console, USB 3.0 host (for image/config storage) |
|
Management |
IOS XE CLI, web UI, NETCONF/RESTCONF, SNMP, model-driven telemetry |
|
Power |
Internal AC supply; PoE budget varies by PSU option |
|
Cooling |
Quiet, small-office friendly acoustics |
|
Form factor |
Compact desktop; 1RU rack-mountable with optional kit |
|
Typical use cases |
Small office/retail, remote branch, POS networks, teleworker hubs |
