Product Overview

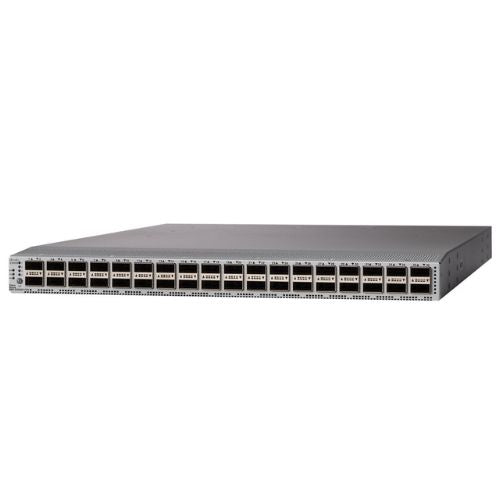

The Cisco N9K-C9336C-FX2 Nexus 9300-FX2 Series Switch is a fast, next-generation, Layer 3 managed switch optimally suited to current data center, cloud, and enterprise network architectures. This switch offers excellent scalability, flexibility and throughput of up to 36 ports of 100/40 Gigabit Ethernet (QSFP28) connections, and is designed to provide high throughput for high workload.
The N9K-C9336C-FX2 is part of the Cisco Nexus 9000 series and is based on Cisco NX-OS or ACI (Application Centric Infrastructure) to achieve optimal efficiency of the data center. It offers 36 fixed QSFP28 ports with 1x100G or 4x25G breakout and more port density and protection against investment. It is an ideal switch used in high-bandwidth aggregation and spine-leaf systems, provides uniform low-latency operations, and offers expanded programmability.
Constructed to excel in operations, it has hot-swappable parts, load-balanced power feeds, and front-to-back or back-to-front airflow thermal efficiency. Its 1RU size integrates well into current rack environments with outstanding reliability, automation, and network visibility.
Key Features
-
High-Speed connection: 36 QSFP28 sockets with 100G Ethernet / 40G Ethernet with options of 4x25G and 4x10G breakouts.
-
Layers 2 and 3 Support: These are complete switching and routing solutions to enterprise and data center networks.
-
The Programmable Infrastructure: It supports the NX-OS and ACI modes of Cisco to provide flexibility in deployment and automation.
-
Small and lean Design: 1RU rack-mount chassis front-to-back ventilation, which provides optimal cooling.
-
High-level security: Workloads' security and isolation.
-
Scalable Architecture: It is well adapted to spine-leaf topology and high-density aggregation.
-
Redundancy and Reliability: The highest level of up-time is offered by hot-swappable power supplies and fans.
-
High Performance: Provides low latency and wire-speed performance to high bandwidth workloads.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Part Number |
N9K-C9336C-FX2 |
|
Series |
Nexus 9300-FX2 Series |
|
Product Type |
Layer 3 Managed Switch |
|
Ports |
36 x QSFP28 (100/40 Gigabit Ethernet) |
|
Port Configuration |
100G, 40G, 4x25G, or 4x10G breakout support |
|
Switching Capacity |
Up to 7.2 Tbps |
|
Forwarding Rate |
Up to 2.5 Bpps |
|
Airflow |
Front-to-back or back-to-front |
|
Form Factor |
1RU Rack-Mountable |
|
Management Interface |
Cisco NX-OS or ACI mode |
|
Layer Support |
Layer 2 and Layer 3 |
|
Redundancy |
Hot-swappable power supplies and fans |
|
Mounting |
Rack-mountable |
|
Cooling |
Front and side to back airflow |
|
Network Standards |
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q |
|
Security Features |
ACLs, Role-based access control, Secure Boot |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Dimensions (H x W x D) |
1.73 x 17.3 x 22.6 in (approx.) |
|
Weight |
~22 lbs (10 kg) |
|
Warranty |
Limited Lifetime Hardware Warranty |
