Product Overview

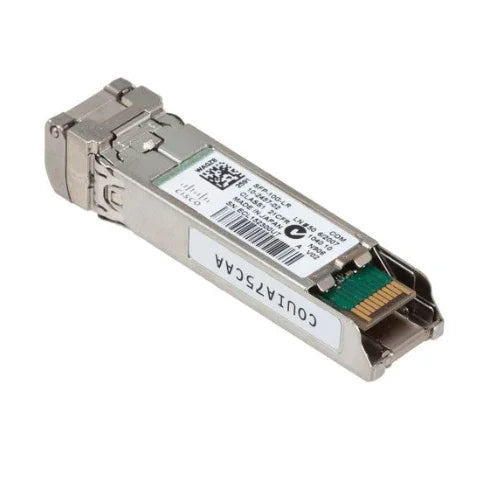

Cisco SFP-10G-LR is a high-performance, hot-swappable, Small Form-Factor Pluggable (SFP+) transceiver available to provide 10 Gigabit Ethernet (10GbE) transmission over single-mode fiber (SMF). It is ideal in the enterprise networks, data centers, and service provider environment where it supports long-distance data transmission of up to 10 kilometers, with low-latency, reliable and high bandwidth connectivity. It is compatible with Cisco networking devices without problems, which makes it integrate well with the existing network infrastructures.
Key Features and Benefits
-
High-Speed 10GbE Connectivity -Provides high-speed and efficient networks.
-
Single-Mode Fiber Support- The wavelength of SMF is 1310nm and it is used in long-distance transmission.
-
Long-Distance Support - Supports distances of up to 10 km, making it suitable for campuses, metro, and also for interconnecting data centres.
-
Hot-Pluggable Design- Can easily be installed or changed, but will not interfere with the operations of the network.
-
Digital Diagnostic Monitoring (DDM/DOM) - Offers real-time control of parameters of modules like optical power, voltage and temperature to support network management proactively.
-
Broad Cisco Compatibility - Is compatible with a variety of Cisco routers and switches to ensure it functions with all.
Technical Specifications
|
Feature |
Specification |
|
Data Rate |
10 Gbps |
|
Wavelength |
1310 nm |
|
Fiber Type |
Single-Mode Fiber (SMF) |
|
Connector Type |
LC Duplex |
|
Maximum Link Length |
Up to 10 km |
|
Power Consumption |
≤ 1.5 W |
|
Operating Temperature |
0°C to 70°C (Commercial) |
|
Digital Diagnostics |
Supported (DDM/DOM) |
|
Compliance |
MSA Compliant, RoHS Compliant |
Product Information
Cisco SFP-10G-LR transceiver is an efficient, high-performance long-distance connectivity single-mode fiber 10GbE. It is a hot-swapped product, which means that installation or replacement of the product will cause limited network downtime. Digital Diagnostics Monitoring (DDM/DOM) can be used to monitor temperature, voltage and optical signal performance live, allowing network engineers to actively control the optimal operation of a network.
The maximum supporting link distances of SFP-10G-LR are up to 10 km, thus it fits well in enterprise, campus and data center network designs in need of reliable and high-bandwidth connections. It has a broad Cisco compatibility that can integrate with all kinds of switches and routers; it offers a reliable and scalable solution that meets the latest networking requirements.
| Product Type | SFP+ |
| Form Factor | Hot-swappable |
| Network Technology | 10GBase-LR |
| Brand Name | AddOn |
| Country of Origin | United States |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| TAA Compliant | Yes |
| Product Type | SFP+ |
| Manufacturer Part Number | SFP-10G-LR-I-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | Cisco SFP+ Module |
| Brand Name | AddOn |
| Interfaces/Ports Details | 1 x LC 10GBase-LR Network |
| Total Number of Ports | 1 |
| Network Technology | 10GBase-LR |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Country of Origin | United States |
| TAA Compliant | Yes |
