Product Overview

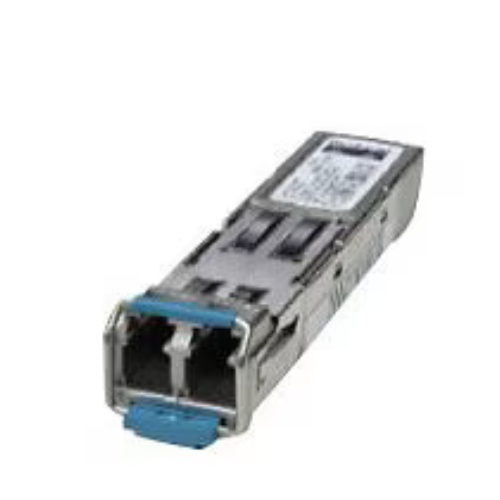

The Cisco SFP-10G-SR-S= 10GBASE-SR SFP+ Transceiver Module offers high-speed and short-range 10 Gigabit Ethernet over multimode fiber (MMF). Designed for data centers and enterprise networks, this transceiver is compact, hot-swappable, and is capable of providing data rates of up to 10Gbps over a wavelength of 850nm, surpassing speeds of 1 gigabit and support intra-building applications while also providing superior performance and support reliability.
The transceiver is rated for short-range fiber links and operates seamlessly with Cisco networking and removes the link between throughput and power. The SFP+ form factor allows for easy installation and replacement suited to the hot-swappable media. Digital Optical Monitoring (DOM) enables real-time monitoring of power, temperature, and voltage.
Key Features
-
High-Speed Connectivity: Up to 10 Gbps data transmission capabilities in demanding enterprise service delivery environments.
-
Short-Range Fiber Support: Supports multimode fiber (MMF) link distance of up to 400 meters on OM4 fiber.
-
Compact SFP+ Design: Maximizes investment and space through hot-swappable modules to update hardware over litter intervention during service updates and daily updates.
-
850nm Wavelength: Short-range optical communication when designed for efficiency.
-
Digital Optical Monitoring: Real-time diagnostics and monitoring of link performance.
-
Cisco Compatibility: Leading hardware manufacturing capability made for purpose with Cisco switches, routers, and network interfaces.
-
Reliable Performance: Cisco will consistently deliver throughput and low-latency performance over 10G base links.
-
Energy Efficient: A high degree of minimum power consumption with sustainable operation.
-
Durable Construction: Built to meet enterprise-grade reliability and uptime standards.
-
Plug-and-Play Operation: Simplifies deployment without additional configuration.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Cisco |
|
Model |
SFP-10G-SR-S= |
|
Product Type |
10GBASE-SR SFP+ Network Transceiver Module |
|
Data Transfer Rate |
10 Gbps |
|
Wavelength |
850 nm |
|
Fiber Type |
Multimode Fiber (MMF) |
|
Maximum Distance |
Up to 300m (OM3) / 400m (OM4) |
|
Connector Type |
LC Duplex |
|
Form Factor |
SFP+ |
|
Interface Type |
Plug-in module |
|
Cable Type Supported |
50/125 µm OM3 or OM4 MMF |
|
Digital Optical Monitoring (DOM) |
Supported |
|
Operating Temperature Range |
0°C to 70°C (32°F to 158°F) |
|
Power Consumption |
<1W (Typical) |
|
Network Technology |
10 Gigabit Ethernet |
|
Compatibility |
Cisco switches, routers, and transceivers |
|
Dimensions (H x W x D) |
0.53 x 0.48 x 2.2 in (13.5 x 12.3 x 56.5 mm) |
|
Weight |
0.02 lbs (9 g) |
|
Certifications |
MSA Compliant, RoHS |
|
Warranty |
1-Year Manufacturer Warranty |
