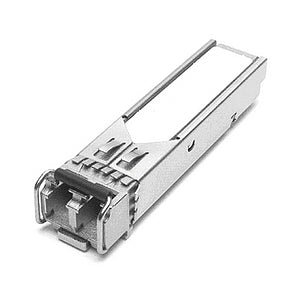

The Cisco SFP-10G-ZR is a multirate 10GBASE-ZR, 10GBASE-ZW, and OTU2/OTU2e module. It supports link lengths of up to about 80 kilometers on standard single-mode fiber (SMF, G.652). This interface is not specified as part of the 10 Gigabit Ethernet standard and is instead built according to Cisco specifications.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 3149606.3" (80000 m) |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Cabling technology | 10GBASE-ZR, 10GBASE-ZW |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | ZR |
| Hot-Plug support | Yes |
| Features | |
| Hot-Plug support | Yes |
| Certification | MSA |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 32 - 158 °F |
| Network | |
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | LC |
| Cabling technology | 10GBASE-ZR, 10GBASE-ZW |
| Weight & dimensions | |
| Width | 0.528" (13.4 mm) |
| Depth | 2.22" (56.5 mm) |
| Height | 0.335" (8.5 mm) |
| Weight | 2.65 oz (75 g) |
