Product Overview

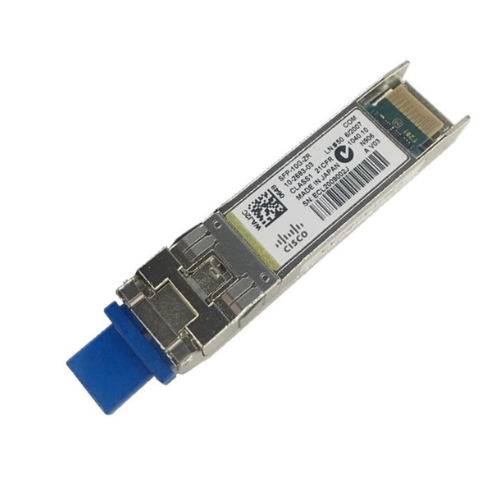

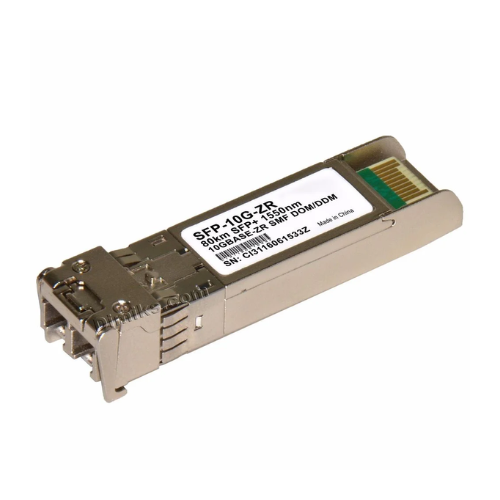

The Cisco SFP-10G-ZR is a high-performance, hot swappable, small form factor (SFP+) transceiver product that supports 10 Gigabit Ethernet (10GbE) over single-mode fiber (SMF) to support long-range applications. This module is designed to support 80 kilometers of distance on enterprise networks, service providers, and data center interconnects with high-bandwidth, low-latency and reliable performance. It is compatible with Cisco networking devices and this aspect facilitates easy deployment in a large-scale, high-performance network.
Key Features and Benefits
-
Ultra-Long-Range 10GbE Connectivity – Provides connections over a distance of 80km over a single-mode fiber in connecting campuses, metro and interconnections between data centers.
-
Single-Mode Fiber Support- This uses a wavelength of 1550 nm, which is best when there is a long distance to be covered.
-
Fast speed performance -Provides consistent 10 Gigabit Ethernet throughput where needed in demanding network applications.
-
Hot-Pluggable Design - This is an easy-to-install or replace without necessarily closing down network systems and will thus cause minimal downtime.
-
Digital Diagnostics Monitoring (DDM/DOM) - Real diameter voltage, temperature and optical signal monitoring in proactive network management.
-
Cisco Compatibility Cisco is fully compatible with most Cisco switches and routers, and will work with them plug-and-play.
Technical Specifications
|
Feature |
Specification |
|
Data Rate |
10 Gbps |
|
Wavelength |
1550 nm |
|
Fiber Type |
Single-Mode Fiber (SMF) |
|
Connector Type |
LC Duplex |
|
Maximum Link Length |
Up to 80 km |
|
Power Consumption |
≤ 6.5 W |
|
Operating Temperature |
0°C to 70°C (Commercial) |
|
Digital Diagnostics |
Supported (DDM/DOM) |
|
Compliance |
MSA Compliant, RoHS Compliant |
Product Information
The Cisco SFP-10G-ZR is designed to support single-mode fiber 10GbE connectivity over ultra-long distances, which means that it can be used in metro networks, interconnecting campuses, and also in long-distance connections between data centers. Its hot-swappable design guarantees very little network disturbance when installing or changing it and real-time Digital Diagnostics Monitoring (DDM/DOM) makes it feasible to monitor optical power, voltage, and temperature proactively in order to guarantee network reliability.
The SFP-10G-ZR supports link distances of up to 80 km and is a high-performance and scalable solution for the enterprise and service provider network. It is widely Cisco interoperable and has a combination of all these features that make it a reliable and efficient option in the deployment of high-bandwidth and long-range networks.
