Product Overview

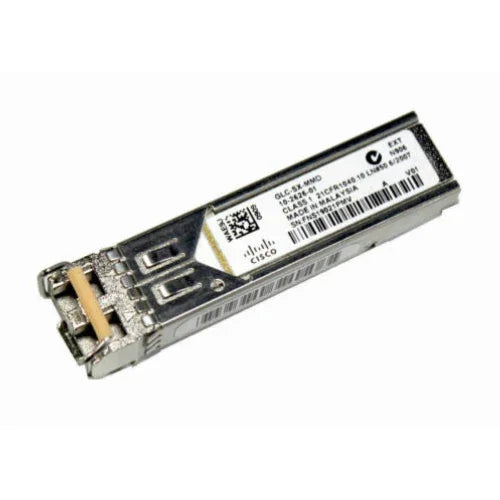

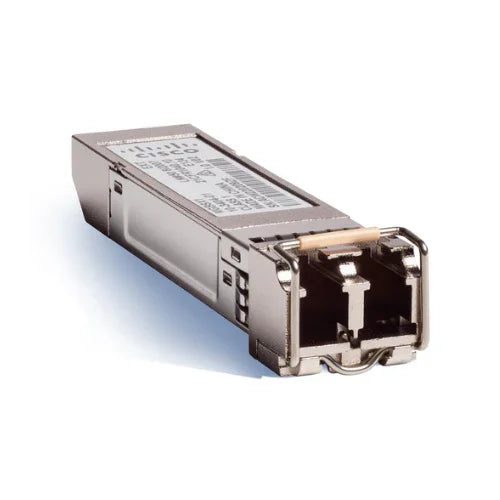

Cisco GLC-SX-MMD is a Small Form-Factor Pluggable (SFP) transceiver that is high-performance and hot-swappable to provide dependable Gigabit Ethernet (1GbE) connectivity on multimode fiber (MMF). This module is suitable for enterprise networks, data centers, as well as environments of service providers and allows transmission of short-distance, high-speed data streams, with low latency and signal integrity. It is a perfect fit for the Cisco networking devices and this is what makes it a perfect fit when expanding the network, upgrading, or even replacing the existing SFP modules.
Key Features and Benefits
-
Stable 1GbE Performance - Provides quick and solid Gigabit Ethernet accessibility throughout the network structures.
-
Multimode Fiber Support- Supports 850 nm wavelengths, which are compatible with standard multimode fiber installations.
-
Short-Distance Connectivity Supports up to 550 meters on OM2 fiber and 300 meters on OM1 fiber, which is optimal in data center or campus applications.
-
Hot-Pluggable Convenience -Enables simple installation or replacement without network downtime, which facilitates continuous business operations.
-
Digital Diagnostics Monitoring (DDM) – Gives real-time monitoring of the operating parameters of the modules, like optical power, voltage, and temperature, to proactively manage the network.
-
Cisco Compatibility Broadly compatible with Cisco switches and routers, which means compatibility and ease of use in a broad range of Cisco devices, and simplified installation.
Technical Specifications
|
Feature |
Specification |
|
Data Rate |
1 Gbps |
|
Wavelength |
850 nm |
|
Fiber Type |
Multimode Fiber (MMF) |
|
Connector |
LC Duplex |
|
Maximum Link Length (OM1) |
Up to 300 meters |
|
Maximum Link Length (OM2) |
Up to 550 meters |
|
Power Consumption |
≤ 1 W |
|
Operating Temperature |
0°C to 70°C (Commercial) |
|
Digital Diagnostics |
Supported (DDM/DOM) |
|
Compliance |
MSA Compliant, RoHS Compliant |
Visual Tip: Use fiber type icons, reach indicators, and speed badges to make the table visually intuitive for technical manuals or catalogs.
Product Information
The Cisco GLC-SX-MMD SFP transceiver is designed to have short-range Gigabit Ethernet connectivity over multimode fiber. It has a hot-swappable feature so that it can be installed or changed easily without shutting down devices; due to this feature, it has reduced operational interruptions. Real-time Digital Diagnostics Monitoring (DDM) makes it possible to ensure active control over optical power, temperature, and voltage to maintain network performance and reliability.
The GLC-SX-MMD supports link lengths of up to 550 meters on OM2 fiber, so it is ideal in data centers, campus networks, and enterprise networks that need high-speed and reliable connections. It is widely compatible with Cisco and can therefore be easily integrated with all switches and routers and can be a reliable and cost-effective option when upgrading or expanding a network.| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable |
| Network Technology | 1000Base-SX |
| Brand Name | AddOn |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| TAA Compliant | Yes |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | GLCSXMMDAO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Model | GLC-SX-MMD-AO |
| Product Name | Cisco SFP (mini-GBIC) Module |
| Brand Name | AddOn |
| Interfaces/Ports Details | 1 x LC 1000Base-SX Network |
| Total Number of Ports | 1 |
| Maximum Distance Supported | 0.55 km |
| Network Technology | 1000Base-SX |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Compatibility | Cisco Systems:
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 0.15 lb |
| Height | 0.4" |
| Width | 0.6" |
| Depth | 2.2" |
