Product Overview

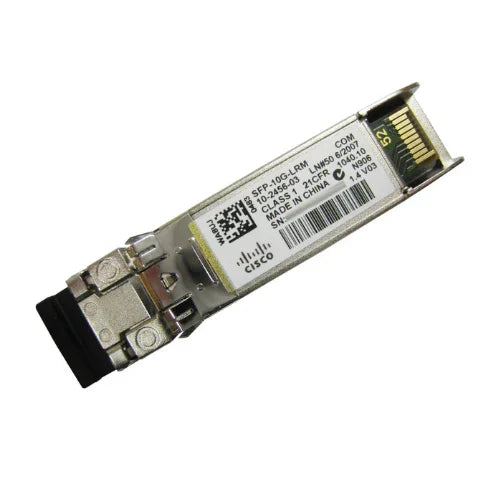

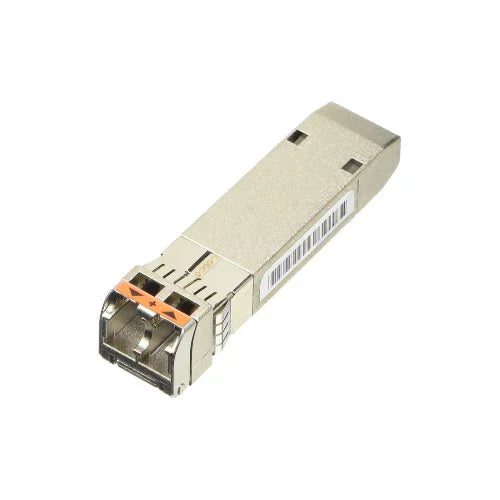

Small Form-Factor Pluggable (SFP+) transceivers. The Cisco SFP-10G-LRM is a high-speed, hot-swappable transceiver that supports 10GbE over multimode fiber (MMF). This module is the best fit in an enterprise network, data center, and service provider environment, and it supports transmissions of short-to-medium distances of up to 220 meters through standard multimode fiber, providing reliable operation with low latency and high bandwidth. It is compatible with Cisco networking equipment in a seamless way; therefore, it can be deployed easily with operational efficiency.
Key Features and Benefits
-
10GbE Networking: High-speed networking and dependable connection over standard Ethernet networks.
-
Multimode Fiber Compatibility: Compatible with 1310 nm wavelength, which may be utilized together with standard multimode fiber (MMF) infrastructure.
-
Extended Reach on MMF: Supports up to 220 meters on either OM1, OM2 or OM3 fiber, which works over short-to-middle applications.
-
Hot-Pluggable Design: This enables hot replacement or installation without shutting down the network equipment, with the minimum downtime.
-
Digital Diagnostics Monitoring (DDM/DOM): This enables real-time optical power, voltage and temperature monitoring to support proactive network functions.
-
Large Cisco Compatibility: There is a wide choice of Cisco switches and routers with which the product is compatible.
Technical Specifications
|
Feature |
Specification |
|
Data Rate |
10 Gbps |
|
Wavelength |
1310 nm |
|
Fiber Type |
Multimode Fiber (MMF) |
|
Connector Type |
LC Duplex |
|
Maximum Link Length (OM1) |
Up to 33 meters |
|
Maximum Link Length (OM2) |
Up to 82 meters |
|
Maximum Link Length (OM3) |
Up to 220 meters |
|
Power Consumption |
≤ 1.5 W |
|
Operating Temperature |
0°C to 70°C (Commercial) |
|
Digital Diagnostics |
Supported (DDM/DOM) |
|
Compliance |
MSA Compliant, RoHS Compliant |
Product Information
Cisco SFP-10G-LRM is a transceiver device with a 10GbE connection that supports a short-medium range network by 10GbE over multimode fiber. It has a hot-swapping structure that gives the network engineers the ability to upgrade or swap the module without interfering with the network process.
The module provides a real-time Digital Diagnostics Monitoring (DDM/DOM) to provide insight into the optical power, temperature and voltage in order to carry out proactive network maintenance and reduce downtime. The SFP-10G-LRM supports up to 220 meters of OM3 fiber and is suitable for enterprise, campus, and data center environments. It offers high reliability with its wide Cisco integration to give a seamlessly integrated switch and router with high performance to suit the current networking needs.
| Product Type | SFP+ |
| Form Factor | Hot-swappable |
| Network Technology | 10GBase-LRM |
| Brand Name | Cisco |
| Maximum Data Transfer Rate | 10 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Product Type | SFP+ |
| Manufacturer Part Number | SFP-10G-LRM= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | SFP-10G-LRM |
| Product Name | SFP-10G-LRM SFP+ Transceiver |
| Brand Name | Cisco |
| Interfaces/Ports Details | 1 x LC/PC Duplex 10GBase-LRM Network |
| Total Number of Ports | 1 |
| Network Technology | 10GBase-LRM |
| Maximum Data Transfer Rate | 10 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Single-mode |
| Height | 0.3" |
| Width | 0.5" |
| Depth | 2.2" |
