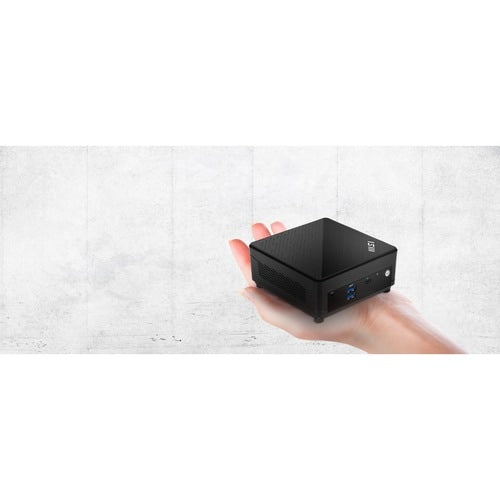

Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
PEACE of MIND
- Easy to use and make life simple
Support Up To 8K Resolution
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.
Bolt To The Next Power
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
See More, Do More

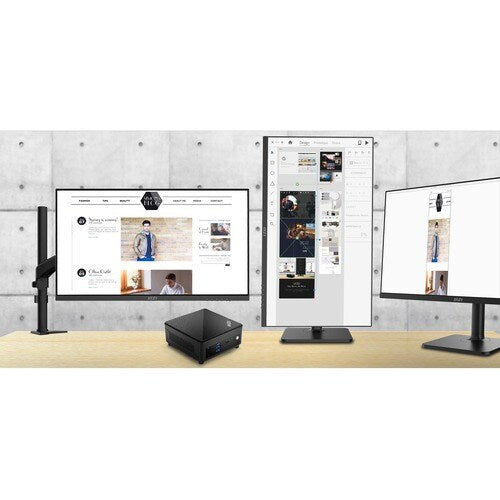

With HDMI, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
MSI Cloud Center Fast, Secure & Wireless Backup
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI Center
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
Key Features
- Windows 11 Home - MSI recommends Windows 11 Pro for business
- Up to 12th Gen Intel® Core™ i7 Processors
- Support up to 8K UHD Display
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
- Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- Experience 75% lower latency with WiFi 6E technology(optional)
- FW TPM design secures your confidential data with encryption keys

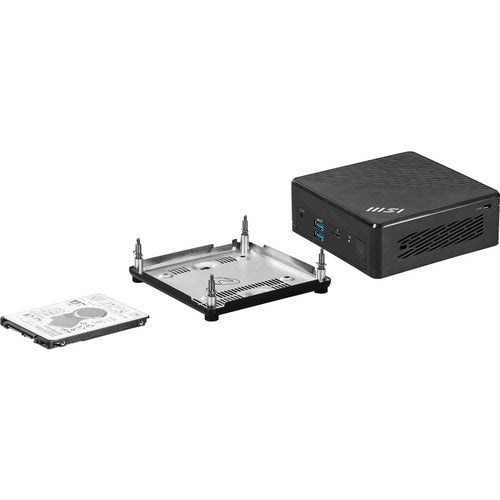

- Supports standard VESA-mount
Dimensions
| Height | 4 inches |
|---|---|
| Width | 8.95 inches |
| Length | 8.3 inches |
| Product Type | Barebone System |
| Maximum Memory Supported | 64 GB |
| Limited Warranty | 12 Month |
| Chipset | Intel |
| Form Factor | Mini PC |
| Processor Supported | Core i7 |
| Processor Supported | Core i5 |
| Processor Supported | Core i3 |
| Processor Type | Core i5 |
| Brand Name | MSI |
| Operating System Supported | Windows 11 Pro |
| Operating System Supported | Windows 11 Home |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21333 |
| Graphics Controller Model | UHD Graphics |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Graphics Memory Accessibility | Shared |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Maximum Power Supply Wattage | 65 W |
| Product Family | Cubi 5 12M |
| Total Number of USB Ports | 4 |
| Product Color | Black |
| Color Family | Black |
| Total Number of Memory Slots | 2 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Chipset Manufacturer | Intel |
| Product Type | Barebone System |
| Manufacturer Part Number | CUBI512M015B |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | Cubi 5 12M-015BUS |
| Product Name | Cubi 5 12M-015BUS Barebone System |
| Product Line | Cubi 5 12M |
| Brand Name | MSI |
| Number of Total Expansion Bays | 1 |
| Total Number of USB Ports | 4 |

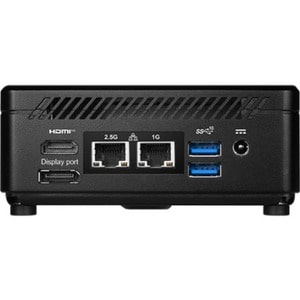

| HDMI (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of Thunderbolt 4 Ports | 1 |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21333 |
| Total Number of Memory Slots | 2 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Form Factor | Mini PC |
| Height | 2.1" |
| Width | 4.9" |
| Depth | 4.9" |
| Product Color | Black |
| Color Family | Black |
| Maximum Power Supply Wattage | 65 W |
| Processor Supported | Core i5 |
| Processor Supported | Core i7 |
| Processor Supported | Core i3 |
| Processor Type | Core i5 |
| Processor Model | i5-1235U |
| 64-bit Processing | Yes |
| Processor Generation | 12th Gen |
| Processor Supported | Core i3 |
| Processor Supported | Core i7 |
| Processor Supported | Core i5 |
| Processor Type | Core i5 |
| Processor Model | i5-1235U |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Processor Generation | 12th Gen |
| Limited Warranty | 12 Month |
