Product Overview

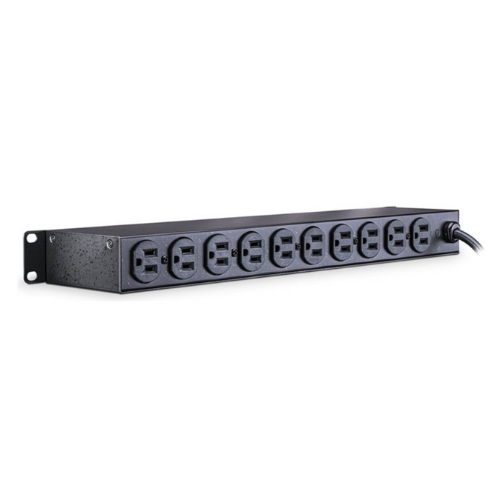

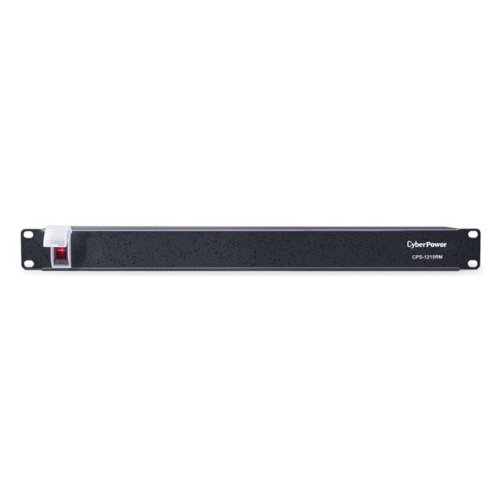

The CyberPower CPS1215RM is a premium and durable 1U rackmount power distribution unit (PDU) to provide data centers with a high-quality and reliable power supply to the IT servers, server rooms, and network closets. The PDU has a capacity of 1800 VT/15A, which will provide the equipment connected to it with constant and stable AC power, and eradicate power disturbances (surges, spikes, and turn-offs) that occur due to power disturbances.
Key Features and Benefits
-
High Capacity: It provides up to 1800 VA /15A of unfiltered AC power, and can therefore provide power to high-demand equipment.
-
10 NEMA 5-15R Power outlets: Adequate slots to carry a large variety of gadgets with different kinds of plugs.
-
15-Foot Power Cord: The optional power cord is more flexible and has the option of using it where it will fit in the rack.
-
Durability: This will also provide with more durability and reliability in the event of extreme use.
-
Cord Retention Tray: The Cord Retention Tray is designed in a manner that avoids any accidental disconnection by tying power cords.
-
UL Recognized: Complies with high standards of safety, ensuring user safety.
-
Flexible Mounting: It is fitted with a horizontal or vertical mount to fit a wide range of rack designs.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1800VA / 15A |
|
Input Voltage |
100–125V AC |
|
Input Plug Type |
NEMA 5-15P |
|
Output Receptacles |
10 x NEMA 5-15R |
|
Power Cord Length |
15 feet (4.57 meters) |
|
Housing |
Metal |
|
Mounting Options |
Horizontal / Vertical |
|
Cord Retention Tray |
Yes |
|
Safety Certifications |
UL Recognized |
|
Dimensions (WxHxD) |
17.25" x 1.75" x 4.75" (438.15mm x 44.45mm x 120.65mm) |
|
Weight |
5 lbs (2.27 kg) |
|
Operating Temperature |
-4°F to 115°F (-20°C to 46°C) |
Product Information
CyberPower CPS1215RM Basic PDU is developed to meet the demands of the existing IT facilities by means of power distribution. It is also made in a 1U rack, which is extremely space-efficient, and the metal housing is robust and can withstand extreme conditions. The 15-foot power flex helps in giving some flexibility during installation, and the PDU could be located at the optimum position within the rack.
CPS1215RM has 10 NEMA 5-15R outlets, thus accommodating many gadgets, and each gadget will have enough power to do its maximum. Cords can also be secured by a cord retention tray that holds the power cords so that they do not fall out of their sockets and consequently cause any accidental disconnection.
The PDU is made to be flexible, with the installation able to be mounted either horizontally or vertically to fit other rack systems. Its UL recognition makes it clear that it meets the highest standards of safety, and this gives the user the feeling of assurance with the way it performs and its reliability.
