Product Overview

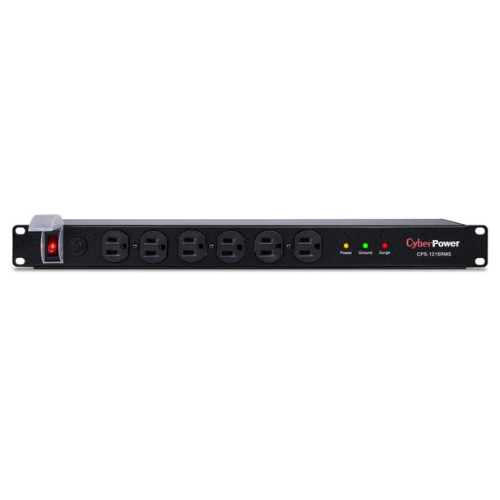

CyberPower CPS1215RMS is a stable 1U rackmount power distribution unit (PDU) that has been created to deliver clean and stable power to the network devices, servers, and other sensitive equipment within the data centers and other IT settings. It has 12 NEMA 5-15R outlets with a 15-amp circuit breaker to provide a high-efficiency delivery of power and to control the overloading situation.
The CPS1215RMS is also available in a 1U horizontal (horizontal mounting) and 0U vertical (vertical mounting) with flexible mounting, thus suitable for network racks, server cabinets, and audio/video installations. It is designed to be plumbed in either horizontal (1U) or vertical (0U) mode. The metal case makes it more reliable, and its power cord is 15 feet in length, thus able to reach power outlets easily.
The unit is programmed to work continuously, where one 120 V AC power source is divided to supply various appliances connected to it. It has an overload protection system that automatically switches off power whenever the load is too high and the equipment is not damaged. This is a cost-efficient and energy-efficient PDU that is ideal for small and medium-sized network systems in need of reliable power distribution and surge suppression.
Key Features
-
12 Power outlets: have twelve NEMA 5-15R outlets to ensure that power is distributed reliably.
-
15A Circuit breaker: An inbuilt overload and short circuit protection.
-
Rackmount Design: 19-inch 1U standard size perfectly fits into server racks and cabinets.
-
Sturdy Build: Strong metal casing that is used in the professional setting.
-
Long Power Cord: It has a 15-foot NEMA 5-15P cord that is long enough and can be installed easily.
-
Flexible Installation: It can be installed either as 1U or 0U.
-
Engineered Reliable Power Distribution: Furnishes 120 V AC power on one input to numerous outputs.
-
Protection against overload: It is automatically switched off when there are power surges or overload.
-
IT and AV Systems - Ideal: Should also be used in network closets, data centers, and audio-visual installations.
-
Energy Efficient: It is designed with low power loss and high operation efficiency.
Technical Specifications
|
Feature |
Specification |
|
Brand |
CyberPower |
|
Model |
CPS1215RMS |
|
Product Type |
Rackmount Power Distribution Unit (PDU) |
|
Form Factor |
1U Rackmount |
|
Input Voltage |
120V AC |
|
Input Plug Type |
NEMA 5-15P |
|
Output Receptacles |
12 x NEMA 5-15R |
|
Maximum Current |
15 Amps |
|
Maximum Power Capacity |
1.8 kVA (1800W) |
|
Circuit Breaker |
15A Resettable Circuit Breaker |
|
Cord Length |
15 ft (4.57 m) |
|
Mounting Options |
Horizontal (1U) / Vertical (0U) |
|
Material |
Metal Housing |
|
Color |
Black |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Dimensions (H x W x D) |
1.75 x 17.25 x 3.5 in (44 x 438 x 89 mm) |
|
Weight |
5.0 lbs (2.27 kg) |
|
Warranty |
3-Year Limited Warranty |
