Product Overview
The CyberPower OR1000LCDRM1U is a small-sized, 1U rackmount uninterruptible power supply (UPS), which is aimed at protecting critical IT infrastructure. It provides reliable power (1000 VA / 600 W) to servers, network devices, and workstations, preventing unforeseen outages, voltage drops, and surges. It has a lucid LCD interface designed to enable IT specialists to monitor, control, and ensure uptime. It also offers an optional remote control, which can be used to manage the device. This UPS is ideal to use in small to medium-sized data centers, network closets, as well as enterprise locations, as it has integrated a high-line-interactive technology with an easy-to-use design.
Key Features and Benefits
-
Stable Power Backup: The server, network equipment, and workstations will not switch off during power outages with a high stable power of 1000 VA / 600 W.
-
Automatic Voltage Regulation (AVR): Stabilizes voltage variation without battery drainage, and therefore, increases battery life and minimizes downtime.
-
LCD Display Easy to use: View real-time system status, load levels, and battery conditions, and make decisions in a few seconds.
-
Rackmount Design flexibility: Design fits in 1U rack spaces, freeing up data center space.
-
Surge and Spike Protection: Insulates equipment against damaging surges up to 1150 Joules, extending equipment life.
-
Universal Networking USB and relay connections to local monitoring, optional RMCARD205 remote control.
-
Efficient Battery Performance: The fast charge (approximately 8 hours to 90% complete) will allow one to be ready to face unforeseen power outages.
Technical Specifications
|
Feature |
Specification |
|
UPS Capacity |
1000 VA / 600 W |
|
Topology |
Line-Interactive |
|
Waveform |
Simulated Sine Wave |
|
Input Voltage Range |
90–140 VAC |
|
Output Voltage |
120 VAC ±10% |
|
Surge Protection |
1150 Joules |
|
Runtime at Half Load |
13 minutes |
|
Runtime at Full Load |
3 minutes |
|
Form Factor |
1U Rackmount |
|
Outlets |
6 × NEMA 5-15R (4 battery + surge, 2 surge-only) |
|
Plug Type & Cord |
NEMA 5-15P, 10 ft. |
|
Battery Type |
4 × 6V 7.0Ah Sealed Lead-Acid |
|
Charging Time |
~8 hours to 90% capacity |
|
Weight |
30.2 lbs (13.7 kg) |
|
Dimensions (HxWxD) |
1.75 × 15.75 × 17.25 in |
Product Information

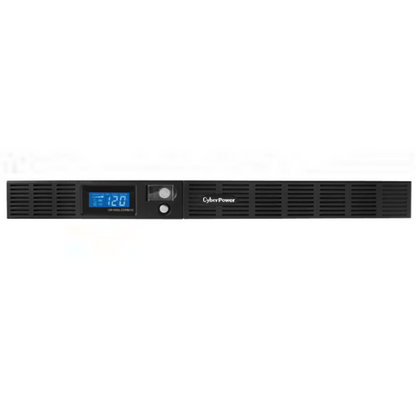

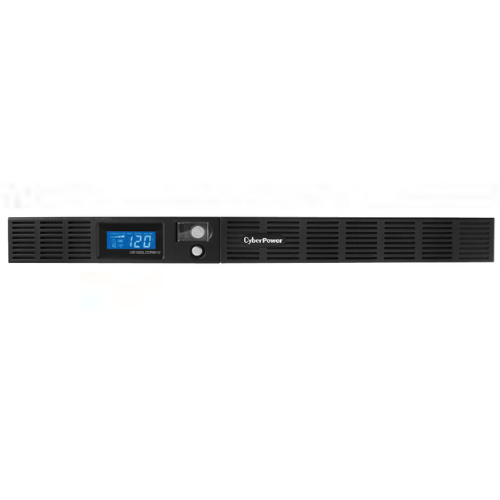

OR1000LCDRM1U is an intelligent design with high-quality performance that offers reliable power protection at a small size. The line-interactive topology rectifies minor irregularities in voltage without battery power; the AVR feature decreases wear on the battery. The LCD on the front side offers a very user-friendly interface, enabling IT professionals to keep an eye on load measurements, battery status, and system readiness at a single glance.

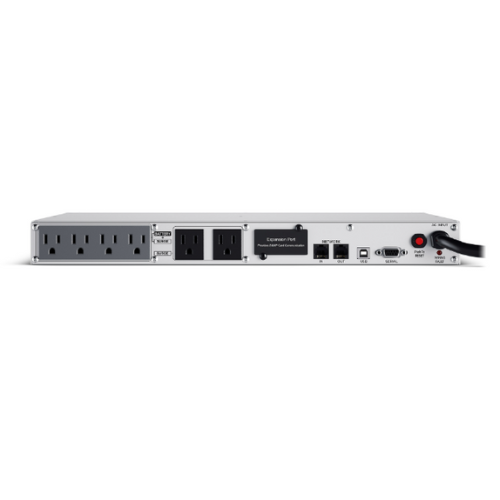

It has six outlets in total, four of which have both battery backup and surge protection solutions, which support various connections of devices in the racks of networks and server closets. Remote management through RMCARD205 is optional, and makes the monitoring more advanced and straightforward to fit in centralized IT infrastructure systems.
The surge protection of 1150 Joules and quick charge battery recharge is beneficial as it provides uninterrupted power to sensitive equipment, and the 1U rackmount enclosure saves important data center space. The OR1000LCDRM1U comes with a three-year limited warranty and is designed to be reliable, more efficient, and a piece of mind in the business requirements, which cannot be considered casual.
