Product Overview
The CyberPower OR1500LCDRT2U Smart App LCD UPS is a high-performance uninterruptible power supply (UPS) that has been structured to offer surge protection and reliable battery back-ups to critical electronic devices. The convertible 2U rackmount or tower UPS in the capacity of 1500VA/900W will ensure that you stay in business even when power goes off, and your equipment is not affected by changes in voltage. Its line interactive topology and Automatic Voltage Regulation (AVR) provide clean and stable power, and a simulated sine wave power output gives it compatibility with sensitive electronics.
Key Features and Benefits
-
AVR Line-Interactive Topology: Operates during small dips without going to the battery and has the benefit of extending battery life, as well as maintaining constant voltage levels.
-
Simulated Sine Wave Output: This is used to supply even power to the devices it is connected to, hence making it work optimally and have a long lifespan.
-

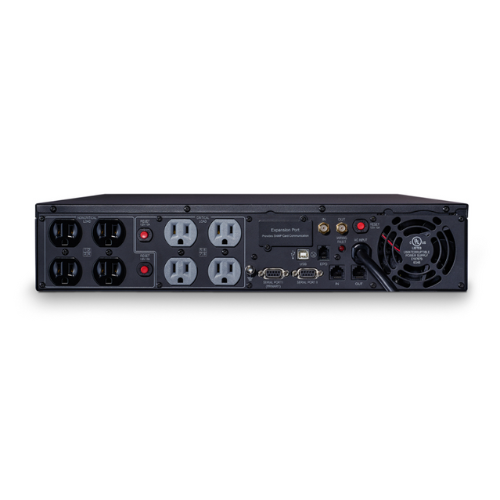

8 Outlets: This has an adequate number of outlets to connect to different devices, which have six battery outlets, surge-protected outlets, and two surge-only outlets.
-

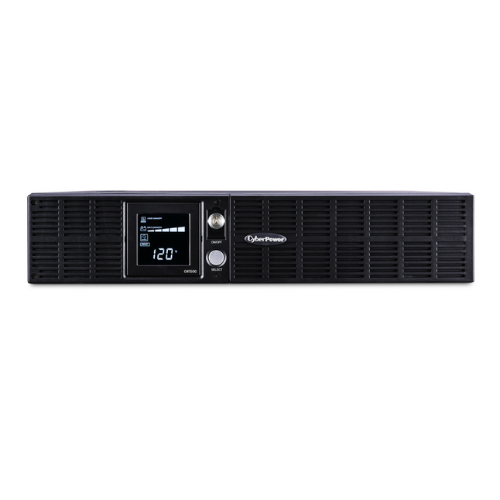

Rotatable LCD Display: It also has real-time information concerning the UPS status, battery capacity, and load levels, which is easy to monitor and control.
-
ENERGY STAR Certified: Meets the high requirements of energy efficiency, which reduces the cost of operation and its effect on the environment.
-
Remote Management: Supports USB, serial, and SNMP communication ports, which can be used to monitor and control remote devices.
-
Data Line Protection: This is used to safeguard the connected equipment by surging power that is traveling on the telephone, coaxial, and Ethernet lines.
-
PowerPanel Business Edition Software: provides the IT personnel with a chance to track and manage the UPS and backup power.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1500 VA / 900 W |
|
Topology |
Line Interactive |
|
Waveform |
Simulated Sine Wave |
|
Input Voltage |
120V AC ± 10% |
|
Output Voltage |
120V AC ± 10% |
|
Outlets |
8 (6 Battery & Surge Protected, 2 Surge-Only) |
|
Plug Type & Cord |
NEMA 5-15P, 10 ft. cord |
|
Communication Ports |
USB, Serial, SNMP |
|
Management Software |
PowerPanel® Business Edition |
|
Data Line Protection |
Telephone, Network, Coaxial |
|
Battery Type |
Sealed Lead-Acid |
|
Runtime at Half Load |
Approximately 18 minutes |
|
Runtime at Full Load |
Approximately 6 minutes |
|
Dimensions (WxHxD) |
17.25" x 3.5" x 15.75" (438 mm x 89 mm x 400 mm) |
|
Weight |
48.4 lbs (21.9 kg) |
|
Warranty |
3 years (repair or replace) |
|
Compliance |
ENERGY STAR Certified, UL1778, cUL, CSAC22.2, 107.1, FCC DOC Class B |
Product Information
CyberPower OR1500LCDRT2U Smart App LCD UPS is a device designed to offer quality and effective power safety to electronic equipment of utmost importance. Its AVR-based line interactive topology provides a stable voltage to connected equipment, and the simulated sine wave output is compatible with sensitive electronics. The UPS has eight outlets, which is quite convenient in terms of connectivity of various devices. The LCD panel is rotatable, allowing real-time view of the UPS status, battery capacity, and load levels, and it is easy to monitor and manage. The UPS has been certified by ENERGY STAR, which has ensured that it satisfies high-quality standards of energy efficiency to cut down on the expenses incurred in its operation and environmental impact. The remote management functions, such as USB, serial, and SNMP communication ports, can be conveniently monitored and controlled. Also, the data line protection will protect the equipment connected with it against power surges passing through telephone, coaxial, and Ethernet lines.
