Product Overview

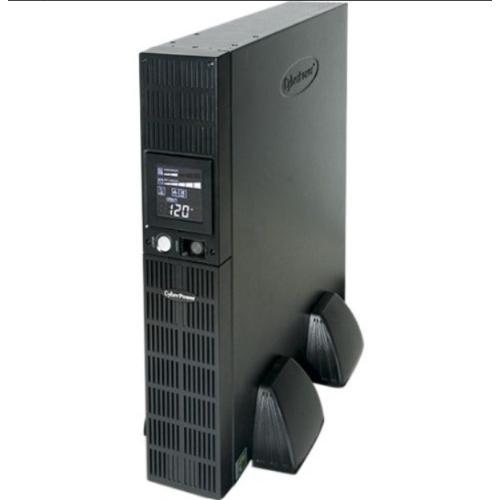

CyberPower OR1500PFCRT2U is a high-performance line interactive uninterruptible power supply (UPS) sold to offer reliable power protection to vital electronic devices. Having 1500 VA /1050 W capacity, this two-unit rackmount UPS provides the connected devices with constant power of good quality, and it protects against power outages such as surges, spikes, and outages.
Key Features and Benefits
-
Pure Sine Wave Output: Provides clean and stable power and is therefore applicable in sensitive equipment such as servers, networking equipment, and point of sale equipment.
-
Automatic voltage Regulation (AVR): This corrects small voltage changes without changing the battery, which prolongs battery life and maintains constant voltages.
-
GreenPower UPS ™ Bypass Design: Saves energy, noise, and heat generation by allowing the utility power to bypass the UPS transformer when AC power is stable.
-
Rotatable Multifunction LCD Panel: It offers easy-to-read and understand information on UPS status, battery health, and power conditions, allowing easy configuration and monitoring.
-
Surge Protection: Provides 1470 Joules of surge energy rating to server-connected equipment against power surges.
-
Data Line Protection: Eliminates any power surge that moves through telephone, Ethernet, and coaxial lines, damaging electronics.
-
Flexible Mounting Configuration: Provides rack mount brackets and stands enabling the device to be installed in a flexible, wide range of applications.
-
Energy Star Certified: Triggers high standards of energy efficiency, which lessens the use of electricity and operating expenses.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1500 VA / 1050 W |
|
Topology |
Line Interactive |
|
Waveform Output |
Pure Sine Wave |
|
Input Voltage Range |
86–142 VAC |
|
Output Voltage |
120 VAC ± 5% |
|
Surge Protection |
1470 Joules |
|
Battery Type |
Sealed Lead-Acid (VRLA) |
|
Runtime (Full Load) |
7.7 minutes |
|
Runtime (Half Load) |
17 minutes |
|
Recharge Time |
10 hours |
|
LCD Display |
Rotatable Multifunction |
|
Communication Ports |
USB, Serial, EPO |
|
Outlets |
8 x NEMA 5-15R |
|
Dimensions (HxWxD) |
3.5" x 17" x 15.3" (89 x 432 x 389 mm) |
|
Weight |
50.6 lbs (22.9 kg) |
|
Warranty |
3 years |
Product Information
The CyberPower OR1500PFCRT2U PFC Sinewave UPS is designed to provide reliable power protection to numerous types of electronic equipment. It has a line-interactive topology, which corrects minor variations in voltage without using the battery, and therefore extends the life of the battery. The output is the pure sine wave, which delivers clean and consistent power and is thus suitable in connection to sensitive equipment where there should be consistency in voltage levels.

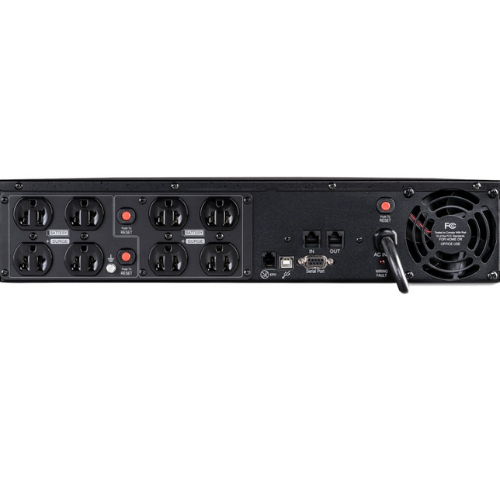

It has an adjustable multitasking LCD that allows users to be informed easily about the UPS position, battery status, and power available. The unit has 8 NEMA 5-15R outlets and is thus capable of connecting many devices. Also, the UPS has USB and serial ports of communication, which can be easily integrated with other communication devices.
The OR1500PFCRT2U has a surge protection rating of 1470 joules to protect against power surges, diverted from the sensitive equipment. The unit is also available to protect data line telephone, Ethernet, and coaxial lines to avoid surges that damage the equipment.
The UPS has both rackmount brackets and stand mounts, enabling it to be installed in a wide range of applications. The fact that it is an Energy Star-certified product highlights its compliance with strict energy efficiency guidelines, minimizing the use of electricity, both in terms of its consumption and operation.
The CyberPower OR1500PFCRT2U PFC Sinewave UPS comes with a 3-year warranty with the added benefit of covering the UPS and batteries themselves, making it a sure way of protecting any essential electronic appliance
