Product Overview

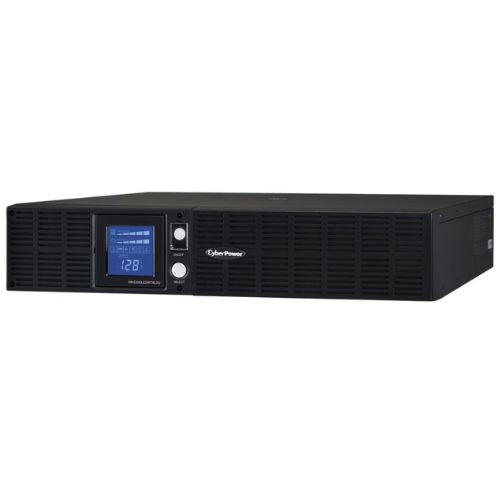

The CyberPower OR2200LCDRTXL2U Smart App LCD UPS is a high-quality Power protection with excellent delivery of reliable, professional-level protection to servers, network equipment and other critical business systems. It has the power of 2100VA/1650W, which is a constant pure sine wave output, thus providing a steady and clean power supply to the load. Its topology is line-interactive and has Automatic Voltage Regulation (AVR) that prevents surges, sags and power fluctuations without transitioning to battery mode, thus extending battery life.
The UPS has a multifunction LCD that enables one to see the voltage levels, load capacity, battery status, and estimated runtime at a glance. The rack/tower convertible 2U design has the option of flexible installation in both data centres and offices. Also, this UPS is compatible with optional network management cards, which give the option of controlling and monitoring the UPS remotely via the software suite, the PowerPanel by CyberPower.
Key Features
-
Large power capacity: 2100VA/1650W pure sinewave output to provide steady and clean power output.
-
Line-Interactive Topology: This protects equipment that is attached to the line against irregularities in power with real-time voltage correction.
-
Automatic Voltage Regulation (AVR): Stabilises the input voltage levels without the use of the battery.
-
Multitask LCD Display: Shows complete system information, load levels, and run time estimation.
-
Rack/Tower Convertible: 2U form factor, which can be installed in IT racks or office configurations.
-
Intelligent Battery Management: Long battery life through fine charging.
-
Communication Ports: Incorporates USB and serial connections so that it can easily connect with IT systems.
-
Remote Management Ready: Accepts optional network management cards to monitor and control.
-
Surge and Spike Protection: Protection against temporary volts and power spikes.
-
Energy Efficient: Conforms to the energy efficiency requirement to reduce power usage and operational cost.
Technical Specifications
|
Feature |
Specification |
|
Brand |
CyberPower |
|
Model |
OR2200LCDRTXL2U |
|
Product Type |
Line-Interactive UPS |
|
Capacity |
2100VA / 1650W |
|
Input Voltage |
120V |
|
Output Voltage |
120V ±5% |
|
Waveform |
Pure Sinewave |
|
Topology |
Line-Interactive |
|
Display |
Multifunction LCD |
|
Voltage Regulation |
Automatic (AVR) |
|
Outlets |
8 x NEMA 5-15R |
|
Communication Ports |
USB, Serial, EPO Port |
|
Expansion Slots |
Optional RMCARD205 for Remote Management |
|
Battery Type |
Sealed Lead-Acid, Maintenance-Free |
|
Backup Time (Half Load) |
Up to 10 minutes (approx.) |
|
Form Factor |
2U Rack/Tower Convertible |
|
Dimensions (H x W x D) |
3.4 x 17 x 19.8 in (approx.) |
|
Weight |
54 lbs (approx.) |
|
Certifications |
Energy Star, cUL, FCC Class B |
|
Part Number |
OR2200LCDRTXL2U |
