Product overview

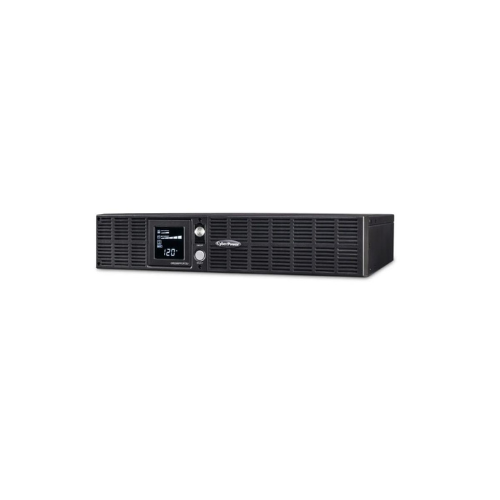

CyberPower OR2200PFCRT2U is a line interactive, pure sinewave UPS that is intended to protect the most important IT and AV equipment related to the mission-critical equipment during surges, sags, brownouts, and outages. Having a 2200 VA / 1980 W power envelope and automatic voltage regulation (AVR), it conditioning power always and leaves battery to real emergencies - perfect in servers, storage, network closets and pro-AV racks.
The 2U rack/tower-convertible chassis is engineered to support easy deployment and day-2 operations, with hot-swappable batteries, outlet-group control to support sequenced startup and remote reboots and a clear front LCD to support local diagnostics. USB/serial and optional SNMP/HTTP expansion slots provide local and remote monitoring and optional external battery packs increase the runtime during longer rides during utility events.
Key features
-
Pure sinewave, AVR (boost/trim) Line-interactive topology.
-
2200 VA / 1980 W dense edge rack capacity and small server stack capacity.
-
Hot-swappable battery; long-run time and optionally external packs.
-
Remote reboot and orderly power sequencing outlet group control.
-
Front LCD to provide at-a-glance status, load, battery and event diagnostics.
-
USB and Serial control and SNMP/HTTP card slot in remote monitoring.
-
User-configurable alarms to avoid overloads as well as data-line protection.
-
Rack/tower convertible 2U including rails/brackets (kit optional).
Technical specifications
|
Category |
Details |
|
Model |
OR2200PFCRT2U |
|
Series |
Smart App PFC Sinewave, Rack/Tower |
|
Topology |
Line-interactive with AVR (boost and trim) |
|
Output waveform |
Pure sinewave |
|
Capacity |
2200 VA / 1980 W |
|
Nominal voltage |
120 V single-phase |
|
Input connector |
NEMA 5-20P (20 A) |
|
Output receptacles |
8 × NEMA 5-20R (grouped for switched control) |
|
Transfer time |
~4–8 ms (typical for line-interactive) |
|
Efficiency |
High-efficiency operating mode (load dependent) |
|
Battery |
Sealed lead-acid (VRLA), hot-swappable |
|
External battery |
Supported (optional pack for extended runtime) |
|
Communications |
USB, Serial (RS-232); SNMP/HTTP slot for optional network card |
|
Display & alerts |
Front LCD, status LEDs, audible alarms, event logs |
|
Protection |
Surge suppression, overload/short-circuit protection, data-line protection |
|
Form factor |
2U rack/tower convertible |
|
Typical applications |
Server/network closets, storage arrays, pro-AV racks, POS/retail, edge compute |
