Product Overview

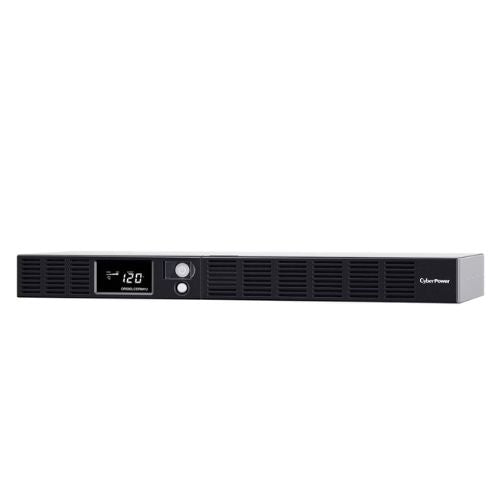

The CyberPower OR500LCDRM1U is a miniature and smart line interactive UPS that has been configured to protect Network equipment, servers and storage devices against power failures, voltage variations and surges. Providing 500 VA / 300W of stable backup power, it can supply uninterrupted performance to small to medium IT with rack-mount systems and telecommunication installations.
Mastered in the Automatic Voltage Regulation (AVR) technology, the UPS stabilizes the incoming AC power without using battery mode, which prolongs battery life and provides stable power to the equipment that is connected. The front-facing multifunction LCD provides real-time system data including the power load, battery capacity, and the estimated run time that can assist the administrator in tracking the health of the system effectively.
The 1U rack-mountable design of the OR500LCDRM1U is designed to fit perfectly into regular 19-inch racks, which is why it has been created to suit a setting where space is limited. It has NEMA 5-15R equipment compatibility outlets with NEMA 5-15P input. Also, it can be easily integrated with the network management system through the use of USB and serial communication ports to be monitored remotely by using CyberPower PowerPanel Business software.
The CyberPower OR500LCDRM1U is designed to protect your critical network and data infrastructure, maintaining low operation and maintenance, and with 100% reliability performance.
Key Features
-
Dependable Backup Power: 500VA / 300W is sufficient to run small rack-mount applications.
-
Automatic Voltage Regulation (AVR): Has a constant output voltage but does not utilize the battery.
-
LCD Control Panel: Shows the input/output voltage, battery, load, and fault.
-
Compact Rack Design: 1U rack-mountable form factor that will fit network closets and server racks.
-
Ready to manage Networks: USB and serial ports to integrate and monitor the system.
-
NEMA Outlets: Typical U.S. plug-in standard to be deployed easily.
-
Surge and Spike Protection: Protects delicate electronics against short-term voltages.
-
GreenPower UPS™ Technology: saves on operating costs and energy.
-
Hot-Swappable Battery: Ensures that it is operational even in the course of maintenance.
Technical Specifications
|
Feature |
Specification |
|
Brand |
CyberPower |
|
Model |
OR500LCDRM1U |
|
Series |
Smart App LCD UPS Systems |
|
UPS Type |
Line-Interactive |
|
Capacity |
500VA / 300W |
|
Input Voltage |
120V AC |
|
Input Plug Type |
NEMA 5-15P |
|
Output Voltage |
120V AC ±5% |
|
Output Receptacles |
(6) NEMA 5-15R |
|
Waveform Type |
Simulated Sine Wave |
|
AVR (Automatic Voltage Regulation) |
Yes |
|
Surge Energy Rating |
1030 Joules |
|
Communication Ports |
USB, Serial |
|
Display |
LCD Status Screen (Input/Output Voltage, Battery, Load) |
|
Battery Type |
Sealed Lead-Acid, Maintenance-Free |
|
Battery Recharge Time |
Approx. 8 hours |
|
Runtime (Half Load) |
~10 minutes |
|
Runtime (Full Load) |
~3 minutes |
|
Rack Height |
1U |
|
Form Factor |
Rack-Mountable |
|
Dimensions (W x D x H) |
17.25" x 9.25" x 1.75" (approx.) |
|
Weight |
~18 lbs (8.2 kg) |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Certifications |
UL1778, FCC Class B, Energy Star |
|
Warranty |
3-Year Limited Warranty (Includes Battery) |
