Product Overview

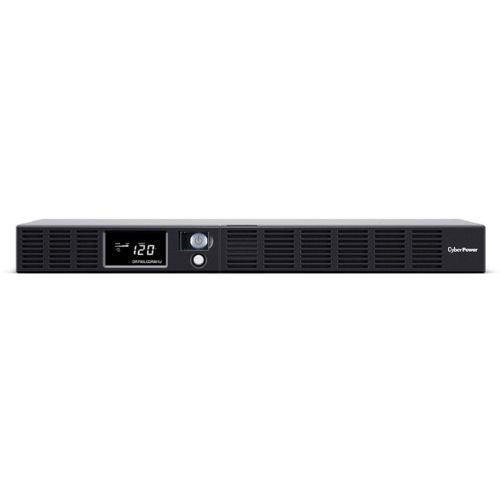

The CyberPower OR700LCDRM1U Smart App LCD UPS System provides reliable power protection and battery backup for network equipment, servers, and data center devices. The 700 VA/400 W line interactive UPS is built to be efficient and easy to manage so that it can operate smoothly during power cuts to prevent any data loss, surges, and changes in voltage to the critical IT infrastructure.
The OR700LCDRM1U is installed in a 1U rackmount form factor, which makes it suitable for small space network cabinets and rack setups. It is equipped with automatic voltage regulation (AVR) to stabilize the incoming AC power without switching to the battery, and this lengthens battery life and enhances performance.
Its integrated multi-function LCD panel gives real-time power status, battery status, and load, and Smart App management software remote monitoring and setup to be used either via USB or serial connection.
Having NEMA 5-15R outlets, network-grade surge protection, and the economy of GreenPower UPS 2 brand technology, this UPS has been designed to bring high reliability, low operating costs, and a long life span. It is the ideal power protection for network servers, VoIP, and other critical electronics of a mission.
Key Features
-
Reliable Power Backup: 700VA/ 400W Power backup to supply continuous power during blackouts.
-
Line-Interactive Topology: This includes automatic voltage regulation (AVR) to compensate for minor power irregularities.
-
Bright LCD Display: Displays real-time data of input/output voltage, load, battery capacity, and system status.
-
1U Rackmount Design: Small and space-constrained, perfect for rack-mounting network applications.
-
GreenPower UPS 00: Technology: It saves energy through consumption and heat emissions in operations.
-
NEMA Outlets: Each Outlet has the standard NEMA 5-15R outlets to allow the connection of various devices.
-
Data Line Protection: Enhances protection against equipment connected to network lines or phone lines against surges.
-
USB and Serial Connectivity: Provides remote control via Smart App tracking software.
-
Replaceable Battery: Makes the product easier to maintain and increases its life.
-
Automatic Restart: Does not need the operator to restart after a power outage.
Technical Specifications
|
Feature |
Specification |
|
Brand |
CyberPower |
|
Model |
OR700LCDRM1U |
|
Series |
Smart App LCD |
|
Topology |
Line-Interactive |
|
Capacity |
700VA / 400W |
|
Input Voltage |
120V AC |
|
Input Plug Type |
NEMA 5-15P |
|
Output Voltage |
120V AC ±5% |
|
Output Receptacles |
(6) NEMA 5-15R |
|
Waveform Type |
Simulated Sine Wave |
|
Surge Energy Rating |
1030 Joules |
|
AVR Function |
Automatic Voltage Regulation |
|
Display Type |
Multifunction LCD Panel |
|
Communication Ports |
USB, Serial, SNMP (optional) |
|
Software |
PowerPanel® Business Edition |
|
Battery Type |
Sealed Lead-Acid (User Replaceable) |
|
Typical Recharge Time |
8 Hours |
|
Rack Height |
1U |
|
Form Factor |
Rackmount |
|
Cooling Method |
Fan |
|
Operating Temperature |
32°F – 104°F (0°C – 40°C) |
|
Relative Humidity |
0% – 95% non-condensing |
|
Dimensions (H × W × D) |
1.75 × 17.25 × 9.25 in (44 × 438 × 235 mm) |
|
Weight |
19.8 lb (9 kg) |
|
Certifications |
UL1778, FCC Class B |
|
Warranty |
3-Year Limited Warranty (Including Connected Equipment Guarantee) |
