Product Overview

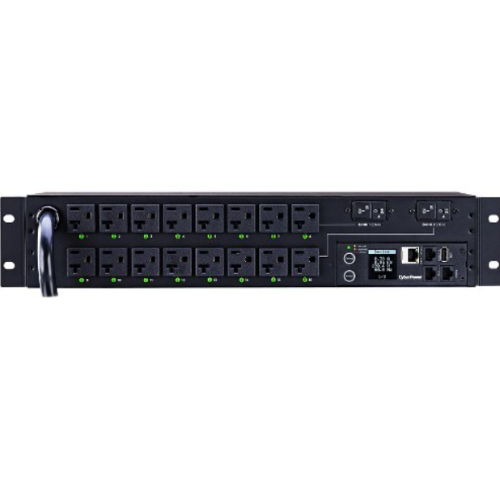

The CyberPower PDU41003 is a 2U rackmount, switched power distribution that is of high capacity, which is utilised to deliver decent and efficient power management to vital IT infrastructure. With a 120 V/30A output and 16 NEMA 5-20R outlets, the specified PDU will ensure a continuous power supply to all kinds of devices, such as servers, networking tools, and telecommunication equipment. It is an ideal data center, server room, and network closet application due to its high potential and wide features, including remote maintenance and real-time monitoring.
Key Features and Benefits
-
High Power Capacity: 120 V/30A output on 16 NEMA 5-20R outlets, high power permits a vast, wide range of equipment to be installed.
-
Real-Time Monitoring: It possesses a multifunction LCD, as the amperage, voltage, kilowatts, and IP address can be observed to understand the immediate system state.
-
Overload Protection: It has an inbuilt overload protection, which prevents any damage to the devices connected to it via power overload.
-
Environmental Sensor Support: It supports optional environmental sensors to monitor the level of temperature and humidity.
-
Easy-to-use interface: Hot-swappable LCD and LED status indicators to ensure ease of use and maintenance.
-
Durability: The metal case of the product is of industrial grade, which gives it a lot of strength and endurance under extreme circumstances.
-
Guarantee: Warranty Support; A 3-year limited warranty provides assurance of a carefree life.
Technical Specifications
|
Feature |
Specification |
|
Model |
PDU41003 |
|
Form Factor |
2U Rackmount |
|
Input Voltage |
100–120V AC |
|
Input Current |
30A (derated to 24A) |
|
Input Plug |
NEMA L5-30P (12 ft cord) |
|
Output Voltage |
100–120V AC |
|
Output Current |
30A |
|
Output Receptacles |
16 x NEMA 5-20R |
|
Frequency |
50/60 Hz |
|
Overload Protection |
Yes |
|
Environmental Sensor |
Supported (optional) |
|
LCD Display |
Multifunction, hot-swappable |
|
LED Indicators |
Yes |
|
Network Interface |
RJ45 Ethernet Port |
|
Management Protocols |
SNMP, HTTP, Email, SMS |
|
Dimensions (W x D x H) |
17.05" x 4.41" x 3.5" |
|
Weight |
7.3 lbs |
|
Warranty |
3-Year Limited Warranty |
Product Information
The CyberPower PDU41003 has been designed to address the requirements of the current IT environment for power distribution. Its 2U rackmount design is very effective in terms of utilizing space and the ability to install it anywhere with a 12-foot NEMA L5-30P input cord. The 16 NEMA 5-20R outlets can be switched separately, with the possibility to control the connected devices perfectly.
The PDU41003 has a multifunction LCD screen that displays real-time data on essential parameters like amperage, voltage, and kilowatts, allowing proactive control of power consumption. Hot-swappable LCD design and LED status indicators make the product very easy to maintain and operate.
To monitor the environment more closely, the PDU41003 can be configured to use environmental sensors, which enable people to monitor the temperature and humidity level inside the rack as well. This is very useful in data centers where environments may affect the performance of equipment.
Well constructed and with a high level of functionality, the CyberPower PDU41003 has a great warranty that would ensure that it is a very reliable and efficient tool when it comes to the management of power allocation in intensive IT infrastructures.
