Product Overview

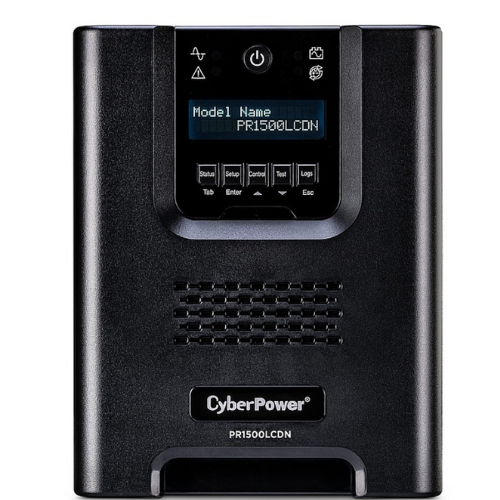

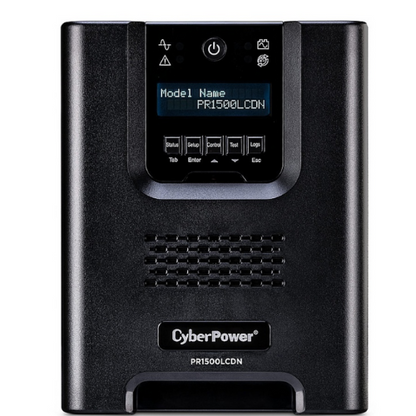

The CyberPower PR1500LCDN is a 1500 VA (1050W) line interactive uninterruptible power supply (UPS), which is excellent for offering reliable battery backup and burst protection to sensitive electronic gadgets. This UPS comes in a mini-tower shape, which is suitable for protecting the work stations, networking peripherals, and building entertainment systems against power outages. Its sine wave output also makes it compatible with Active PFC power supplies, and the Automatic Voltage Regulation (AVR) is able to correct small power fluctuations without switching to battery power, and battery life is increased.
Key Features and Benefits
-
Large Power Capacity Protection: 1500VA (1050W) of dependable power, so that connected gadgets can be used during power interruptions.
-
Sine Wave Output: Clean and stable power is provided, and therefore, it can be compatible with sensitive electronics and Active PFC power supplies.
-
Automatic Voltage Regulation (AVR): Adjusts small, sporadic increments of power without changing to battery power to save battery life in case of significant disturbances.
-
Extensive Monitoring: The Monitors are fitted with a pre-built RMCARD205, which provides the ability to remotely manage and configure the device through a standard web browser or a network management system (NMS).
-
Surge Protection: Discharges extra voltage to the ground during an AC power spike or power surge to stop damaging equipment.
-
LCD Display: Displays real-time status information, such as runtime, battery capacity, and load levels.
-
Small Size: The mini-tower size enables placement in any other place, be it in the office or at home.
-
Warranty and Protection: Three-year warranty and Connected Equipment Guarantee.
Technical Specifications
|
Feature |
Specification |
|
Model |
PR1500LCDN |
|
Form Factor |
Mini-Tower |
|
Input Voltage |
120V AC |
|
Output Voltage |
120V AC |
|
Capacity |
1500 VA / 1050 W |
|
Topology |
Line Interactive |
|
Waveform |
Sine Wave |
|
Outlets |
8 x NEMA 5-15R |
|
Input Plug |
NEMA 5-15P |
|
Battery Type |
Sealed Lead-Acid (SLA) |
|
Battery Quantity |
2 x 12V 7Ah |
|
Recharge Time |
8 hours |
|
Run Time (Full Load) |
Approximately 8 minutes |
|
Run Time (Half Load) |
Approximately 24 minutes |
|
Communication Ports |
USB, Serial, SNMP, Relay, EPO |
|
Remote Management |
RMCARD205 Pre-installed |
|
LCD Display |
Multifunction, hot-swappable |
|
Operating Temperature |
0–40°C (32–104°F) |
|
Operating Humidity |
0–95% (non-condensing) |
|
Dimensions (W x D x H) |
5.5" x 11.5" x 10.5" |
|
Weight |
18.5 lbs (8.4 kg) |
|
Warranty |
3-Year Limited Warranty |
Product Information
The CyberPower PR1500LCDN is designed to provide high-quality and effective power protection to vital computer hardware and devices. Its line-interactive topology has the benefit of giving connected devices with clean and stable power, unaffected by voltage changes and disruptions. The UPS includes a sine wave output, and therefore, it can be used in sensitive electronics that need high-quality power.
The PR1500LCDN has a pre-installed RMCARD205 enabling it to be remotely monitored and managed using the standard web browser or network management system (NMS). This is a required feature for IT administrators who are required to ensure continuous functionality and promptly react to possible problems.

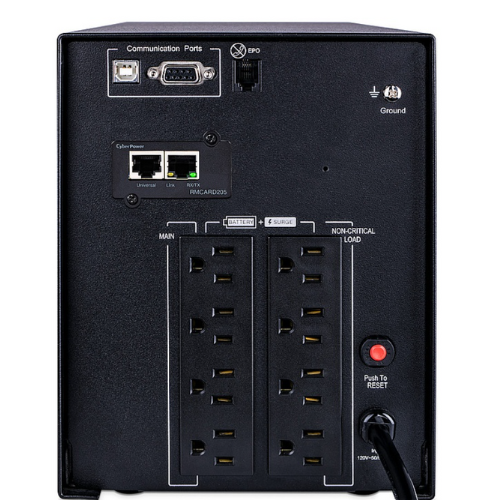

The UPS is made to be flexible, and the mini-tower shape makes it very easy to locate in most environments. The 8 NEMA 5-15 R outlets offer the champion connectivity of various gadgets, and the surge protection option diverts extra voltage to the unprotected electronic devices during an AC power surge or power spike to avert harm.
To ensure more extended periods of operation even in cases of a power cut, the PR1500LCDN can take extra external battery packs (sold separately), which enable the businesses to continue operating without hitches as long as power is cut off.
To conclude, the CyberPower PR1500LCDN is a powerful and flexible UPS solution that offers a high capacity of the provided power safety, a long-term operation, and a high level of monitoring, which is why it can be considered an ideal solution to protect critical IT infrastructure.
