Product overview

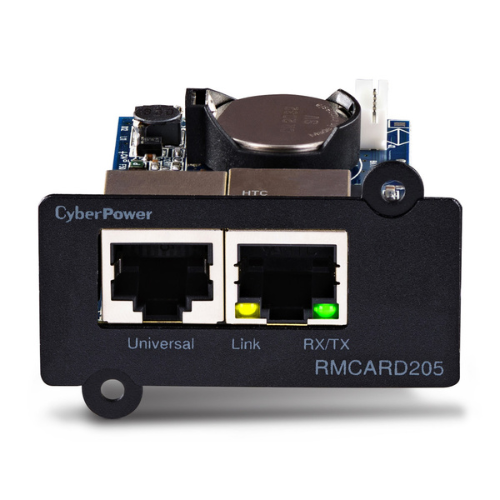

The CyberPower RMCARD205 provides secure, browser-based management as well as SNMP management to the compatible CyberPower UPS systems, ATS switches, and some PDUs. When installed in the expansion slot of the device and plugged to the network, it allows remote monitoring, configuration and graceful shutdown workflows thus you can control power infrastructure without rolling a truck.
It is designed to support IPv4/IPv6 network in both large and small IT environments, user-defined alarms, email and SNMP trap notifications, and event logging to enable audit. There is an environmental sensor port (optionally with a probe) that increases the visibility to temperature and humidity and allows you to prevent harm to gear and identify room level problems before they affect uptime.
Key features
-
Remote monitoring and control via web, SNMP and CLI.
-
SNMP trap and email alerts with user scheduled thresholds.
-
IPv4/IPv6, DHCP/static IP, NTP time sync and syslog export.
-
software-dependent beautiful shutdown integrations of linked servers.
-
Ready Environmental monitoring through optional temp/humidity probe.
-
Easily upgradeable firmware; user accounts and secure protocols.
-
Compatible with UPS/ATS/PDU models that have a compatible management card slot.
Technical specifications
|
Category |
Details |
|
Model |
RMCARD205 |
|
Device type |
Network management card for compatible CyberPower UPS/ATS/PDU |
|
Network interface |
10/100 Ethernet (RJ-45) |
|
Protocols & access |
HTTP/HTTPS, SNMP v1/v3, SMTP email alerts, SSH/CLI (feature set firmware dependent) |
|
IP support |
IPv4/IPv6, DHCP or static configuration |
|
Notifications |
Email, SNMP traps, event logging, syslog export |
|
Time sync |
NTP |
|
Environmental |
Port for optional temperature/humidity sensor (probe accessory) |
|
Security |
Role-based users, encrypted management (HTTPS/SNMPv3/SSH), password policies |
|
Compatibility |
CyberPower models with a supported expansion slot (UPS/ATS/PDU families) |
|
Power source |
Powered by host device; no external PSU required |
|
Installation |
Slide-in card with retaining screws; hot-swap availability depends on host device |
|
Operating conditions |
Typical IT room environment (0–40 °C, non-condensing humidity range) |
|
Use cases |
Remote status/alerts, configuration, scheduled tests, graceful shutdown orchestration |
