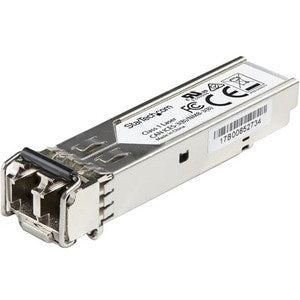

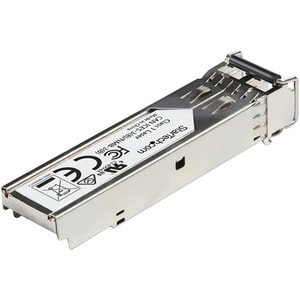

The SFP1GLXEMCST is a Dell EMC SFP-1G-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310nm
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Single Mode

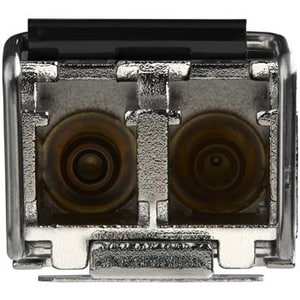

- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 53,972,659 hours
- Power Consumption: < 1.3W
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
More from the Manufacturer
Key Features
- With 1000Base-LX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- Up to 10x faster than standard Ethernet connection and provides high-performance
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- SFP (mini-GBIC) offers enhanced dependability with maximum productivity
- SFP (mini-GBIC) with optical network application/usage for maximum productivity and usability
- Hot-swappable form factor allows hassle-free and easy usage with increased efficiency
Dimensions
| Height | 1.3 inches |
|---|---|
| Width | 3.6 inches |
| Length | 4.5 inches |
| Weight | 0.1 pounds |
| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable |
| Network Technology | 1000Base-LX |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | SFP1GLXEMCST |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Dell EMC SFP-1G-LX Compatible SFP Transceiver Module - 1000Base-LX |
| Brand Name | StarTech.com |
| Interfaces/Ports Details | 1 x LC 1000Base-LX Network |
| Total Number of Ports | 1 |
| Network Technology | 1000Base-LX |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 0.07 lb |
| Height | 0.5" |
| Width | 2.3" |
| Depth | 0.5" |
