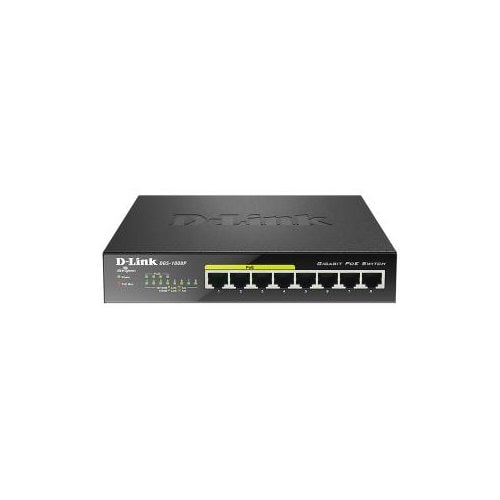

The DGS-1008P PoE Gigabit Desktop switch provides a cost-effective way for office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones. It also provides the opportunity to add additional Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. This compact PoE switch is equipped with Gigabit ports for faster speeds and operates quietly, making it ideal for use in virtually any room or office. In addition, D-Link's Green Ethernet technology saves power when the switch is active and inactive.
Cable diagnostics function
Every time the DGS-1008P is powered up, it runs a micro diagnostics routine to check the integrity of the connected Ethernet cables. If a failure is detected, the switch will flag it by means of its front panel LEDs, making it easy for the user to troubleshoot wiring problems.
Key Features
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 8 networking ports
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
Dimensions
| Height | 5.35 inches |
|---|---|
| Width | 3.25 inches |
| Length | 13 inches |
| Weight | 1.35 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Desktop |
| Brand Name | D-Link |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DGS-1008P |
| Manufacturer Website Address | http://www.dlink.com |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DGS-1008P |
| Product Name | DGS-1008P Ethernet Switch |
| Brand Name | D-Link |
| Number of Network (RJ-45) Ports | 4 |
| Number of PoE (RJ-45) Ports | 4 |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5e |
| Media Type Supported | Twisted Pair |
| Certifications & Standards |
|
| Layer Supported | 2 |
| Height | 1.5" |
| Width | 7.5" |
| Depth | 4.7" |
| PoE (RJ-45) Port | Yes |
