Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

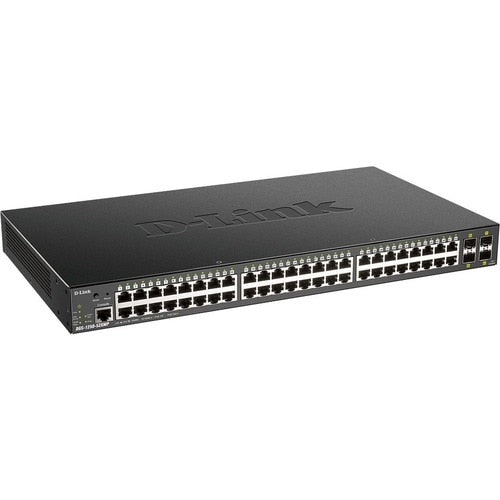

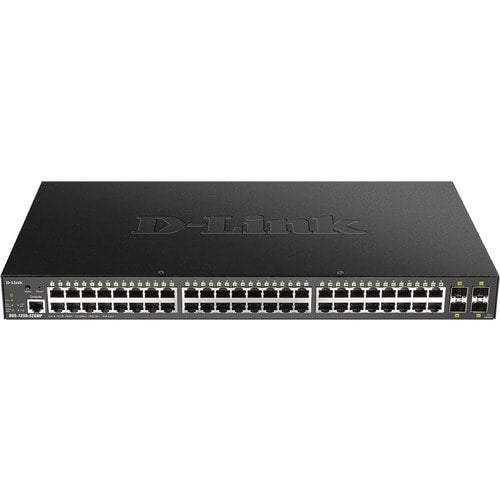

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers - enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation. Full Command Line Interface (CLI) functionality enables remote configuration without need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
High PoE Budget (370W)
The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies deployment of IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch's management interface, an administrator can control various PoE functions, such as remotely rebooting Cameras or Access Points, from anywhere on the network, including over the Internet. All PoE models support the IEEE 802.3af and 802.3at standards.
Extensive Management and Advanced Features
The DGS-1250 Series supports IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series supports the D-Link Network Assistant (DNA) utility so I.T. professionals can remotely control their network to the port level. DNA allows them to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Dimensions
| Height | 3.6 inches |
|---|---|
| Width | 15.5 inches |
| Length | 22.3 inches |
| Weight | 10.9 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DGS125052XMP6KV |
| Manufacturer Website Address | http://www.dlink.com |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DGS-1250-52XMP |
| Product Name | 52-Port 10-Gigabit Smart Managed PoE Switch |
| Product Series | DGS-1250 |
| Brand Name | D-Link |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 52 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE |
| Manageable | Yes |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Country of Origin | Taiwan |
| Layer Supported | 3 |
| Weight (Approximate) | 8.49 lb |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 9.8" |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
