AMD EPYC 7003 Series Processors
The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS700A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
GPU and FPGA Support
ASUS RS700A-E11 servers feature a powerful GPU architecture that supports one dual-slot GPU such as NVIDIA A100 in one 1U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.
ASUS AMD EPYC 7003-based series are Xilinx Alveo-qualified servers to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
CPU-balanced Architecture
The new AMD EPYC 7003 processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.
This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.
Modular design

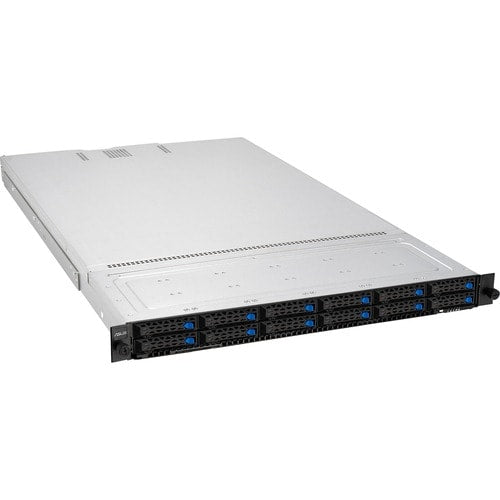

ASUS RS700A-E11 servers offer a flexible, modular design to enable easy scale-up of configurations to meet increasing data-center workloads.
Scalable Storage Solution

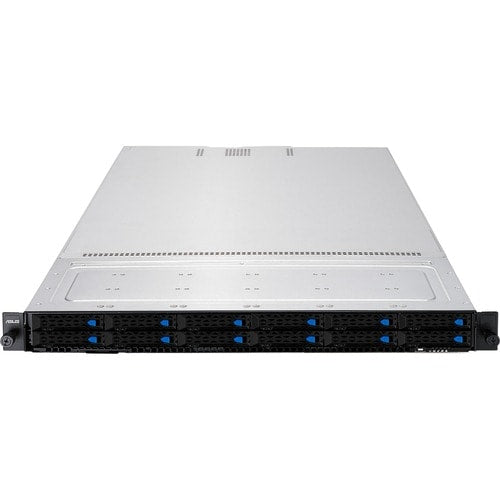

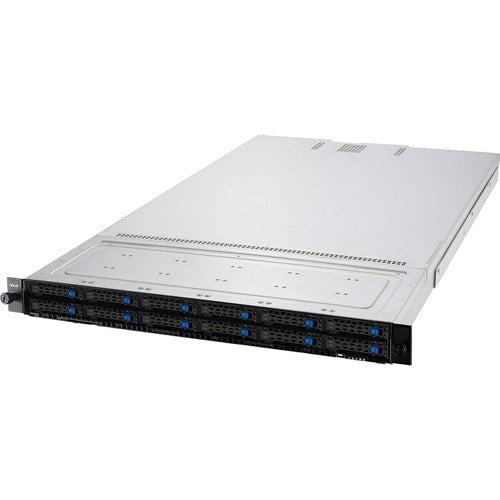

ASUS RS700A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 12 all-flash NVMe drives on front panel enable extensive storage and high-throughput performance.
Key Features
- Compatible EPYC processor lets you perform all your computational tasks at a swift pace
- Serial ATA/600 interface provides quick data transfer and greater throughput
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Provides 2 USB ports for responsive and expanded device connections
Dimensions
| Product Type | Barebone System |
| Maximum Memory Supported | 4 TB |
| Chipset | AMD |
| Form Factor | Rack-mountable |
| Processor Supported | EPYC |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket SP3 |
| Rack Height | 1U |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Graphics Controller Model | AST2600 |
| Number of SATA Interfaces | 12 |
| Graphics Memory Capacity | 64 MB |
| Number of Processors Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Power Supply Wattage | 1600 W |
| Product Family | RS700A-E11-RS12U |
| Total Number of USB Ports | 2 |
| Total Number of Expansion Slots | 3 |
| Total Number of Memory Slots | 32 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Chipset Manufacturer | AMD |
| Controller Type | Serial ATA/600 |
| Product Type | Barebone System |
| Manufacturer Part Number | RS700A-E11-RS12UWOCPU043Z |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | RS700A-E11-RS12UWOCPU043Z |
| Product Name | RS700A-E11-RS12UWOCPU043Z Barebone System |
| Product Series | RS700A-E11-RS12U |
| Brand Name | Asus |
| Number of Total Expansion Bays | 12 |
| Total Number of Expansion Slots | 3 |
| Number of SATA Interfaces | 12 |
| Total Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 41.56 lb |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.7" |
| Depth | 33.2" |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1600 W |
| Processor Supported | EPYC |
| Processor Socket | Socket SP3 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Processor Supported | EPYC |
| Processor Socket | Socket SP3 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | AMD |
| Number of Processors Supported | 2 |
