Product Overview

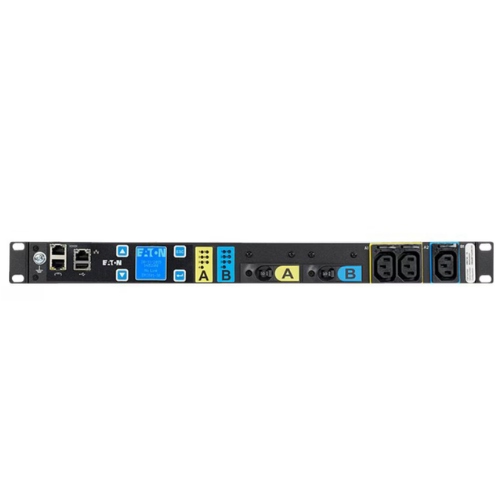

Eaton EMAT06-10 Managed ePDU is a high-performance rack-mount power distribution unit designed to address the new data center and enterprise IT demands, which require high reliability and remotely controlled power distribution. The ePDU is a solution that offers mission-critical equipment with a 24A single-phase input and greater control and protection functionalities, and real-time monitoring.
The EMAT06-10 is engineered using the Intelligent Power Management (IPM) technology that enables the administrator to remotely monitor power usage, manage outlets individually or in groups, and receive real-time notifications to avoid overloads. L6-30P input connector, 10 outlets are designed to be used in a variety of rack designs to provide a secure and efficient distribution of power to connected devices.
It occupies less space as it fits nicely into standard server racks with its 1U rack-mountable design, making it accessible. The Eaton EMAT06-10 can be used in enterprise networks, server rooms, and edge computing environments to improve operational reliability and make the data center environment smarter and more energy efficient.
Key Features
-
High-Capacity Power Distribution: Provides 24A single-phase supply with input of L6-30P to feed high-demand rack equipment.
-
10 Controllable Outlets: This enables offering on/off switching and monitoring of the devices connected, which is more than beneficial to control and uptime.
-
Progressive Network Management: It has an integrated Ethernet functionality with SNMP, web, and Telnet that can be utilized to monitor and control on the fly.
-
Intelligent Power Management (IPM): Intelligent power usage analytics, threshold notifications, and response actions.
-
1U Rack-Mount Design: Saves rack space and keeps the cables clean and organized.
-
Improved Reliability: Engineered to be used in IT and industrial applications that require constant operation.
-
Environmental Monitoring Support: Supports optional temperature and humidity monitors.
-
Native Interoperability: Supports centralized power management software in Eaton.
-
Complete Protection: Incorporates circuit breakers and surge protection to protect equipment that is connected.
-
Sturdy Construction: Construction is of an industrial grade and is stable and long-lasting in demanding tasks.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Eaton |
|
Model |
EMAT06-10 |
|
Series |
Managed ePDU |
|
Product Type |
Managed Power Distribution Unit (PDU) |
|
Input Voltage |
208V / 240V AC |
|
Input Current |
24A |
|
Input Connector |
NEMA L6-30P |
|
Output Outlets |
10 x IEC C13/C19 (varies by configuration) |
|
Power Phase |
Single-Phase |
|
Mounting Type |
Rack-Mountable (1U) |
|
Monitoring |
Local and Remote (SNMP/Web/Telnet) |
|
Control Type |
Individual and Group Outlet Switching |
|
Network Interface |
Ethernet (RJ-45) |
|
Power Management Software |
Eaton Intelligent Power Manager (IPM) |
|
Circuit Protection |
Circuit Breaker |
|
Environmental Monitoring |
Optional Temperature/Humidity Sensors |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Dimensions (H x W x D) |
1.7 x 17 x 8 in (approx.) |
|
Weight |
~6.8 lbs (3.1 kg) |
|
Color |
Black |
|
Warranty |
2-Year Limited Warranty |
