Advanced Routing Technology for the Masses
Ubiquiti introduces five new routers for the EdgeMAX® platform:
- EdgeRouter™ 12P
- EdgeRouter 12
- EdgeRouter 10X
- EdgeRouter 6P
- EdgeRouter 4
They join the array of cost-effective Gigabit routers:
- 8-Port EdgeRouter Pro
- 8-Port EdgeRouter
- 5-Port EdgeRouter PoE
- 3-Port EdgeRouter Lite
High Performance
The EdgeRouters offers superior routing combined with top price/performance value for your routing applications.
The EdgeRouter 4, 6P, 12, and 12P are each capable of routing up to 3.4 million packets per second.
The 8-Port EdgeRouter and EdgeRouter Pro route up to 2 million+ packets per second, while the EdgeRouter Lite and EdgeRouter PoE route up to 1 million packets per second.
PoE Flexibility
The EdgeRouter 6P, PoE, and 12P include configurable PoE ports to power airMAX® products, and the EdgeRouter 12 has a PoE input port and a PoE passthrough port.
Fiber Connectivity

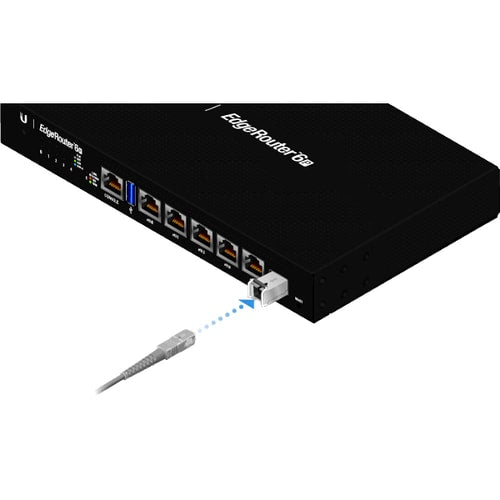

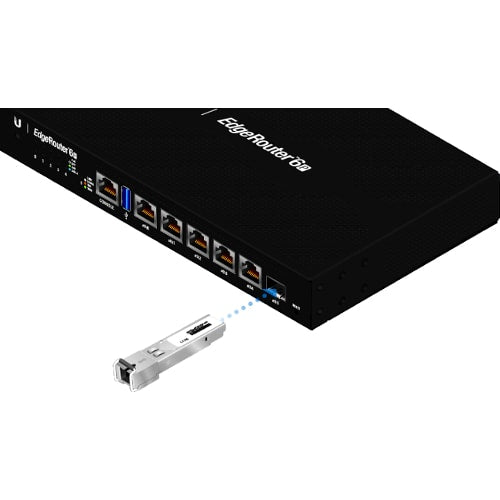

The EdgeRouter 4 and EdgeRouter 6P provide an SFP port. The EdgeRouter 12 and 12P feature dual SFP ports, while the 8-Port EdgeRouter offers two combination RJ45/SFP ports.
Manage Your Network
DHCP Server Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces.
Easily control dynamic and static IP addressing for your network devices.

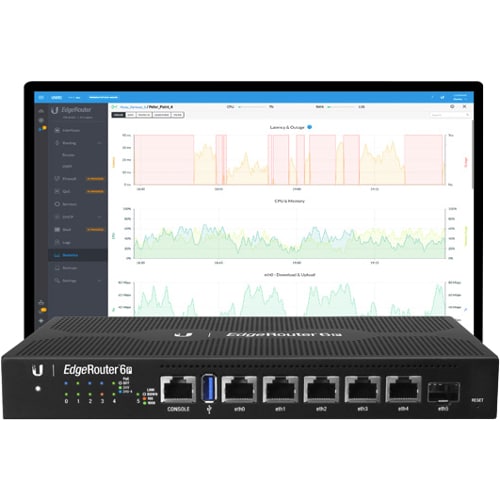

Monitoring Tools Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
Secure Your Network
Firewall Policies Organize the rules you apply in the order you specify.
Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number.
NAT Rules The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.
Direct Traffic Flow
Interfaces Each port functions as an independent interface.
You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.
Routing Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.

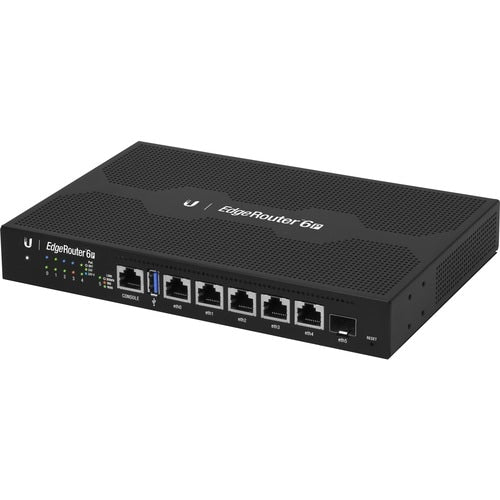

Key Features

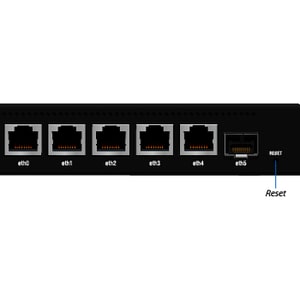

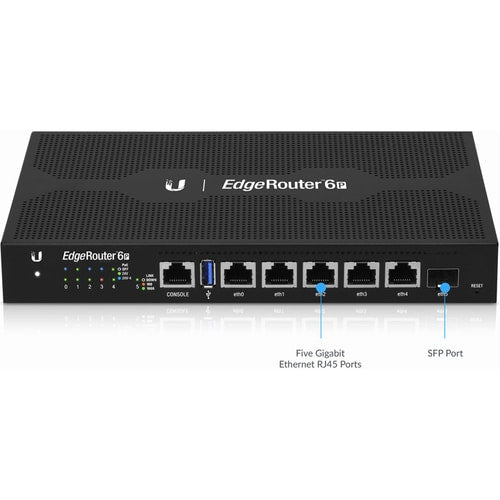

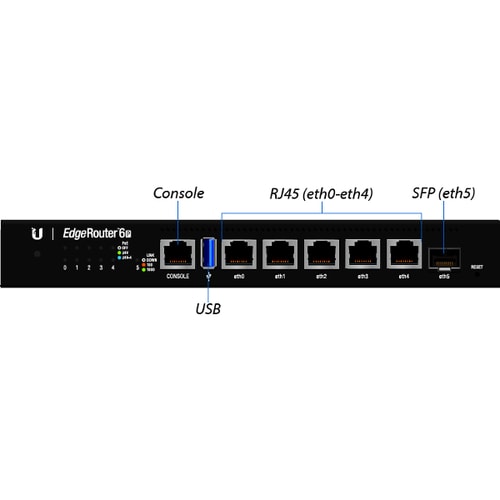

- (5) Gigabit RJ45 routing ports
- 24V PoE support on RJ45 ports
- (1) Gigabit SFP port
- 3.4 million packets per second for 64-byte packets
- 6 Gbps for packets 256 bytes or larger in size
- Silent, fanless operation
- Compact, durable metal case
Dimensions
| Height | 2.7 inches |
|---|---|
| Width | 10.2 inches |
| Length | 11.5 inches |
| Weight | 3.45 pounds |
| Product Type | Router |

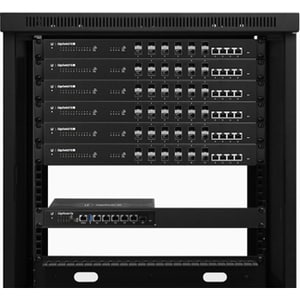

| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Brand Name | Ubiquiti |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | EdgeRouter 6P |
| Total Number of Ports | 6 |
| Total Number of Expansion Slots | 1 |
| Product Type | Router |
| Manufacturer Part Number | ER-6P |
| Manufacturer Website Address | http://www.ui.com |
| Manufacturer | Ubiquiti Inc. |
| Product Model | ER-6P |
| Product Name | ER-6P Router |
| Product Line | EdgeRouter 6P |
| Brand Name | Ubiquiti |
| Expansion Slot Type | SFP (mini-GBIC) |
| Total Number of Expansion Slots | 1 |
| Number of Network (RJ-45) Ports | 5 |
| Management Port | Yes |
| Total Number of Ports | 6 |
| Package Contents |
|
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Weight (Approximate) | 1.61 lb |
| Height | 1.2" |
| Width | 9" |
| Depth | 5.4" |
| Compatible Rack Unit | 1U |
| PoE (RJ-45) Port | Yes |
