Advanced Gigabit PoE Managed Switch
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch XP is available in multiple versions to meet your deployment needs.
EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following:
Intuitive Configuration Interface
EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
Advanced Features
EdgeSwitch XP is loaded with a variety of advanced features, including
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch XP is available in multiple versions to meet your deployment needs.

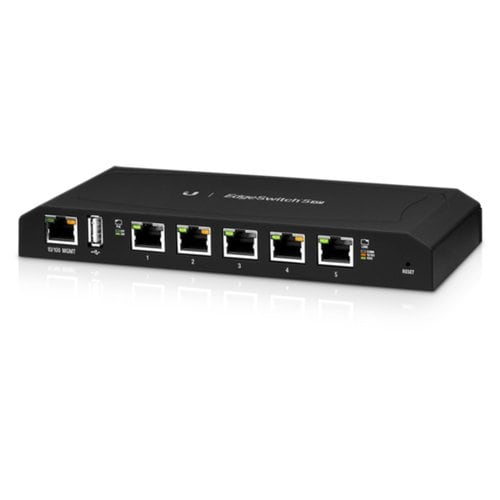

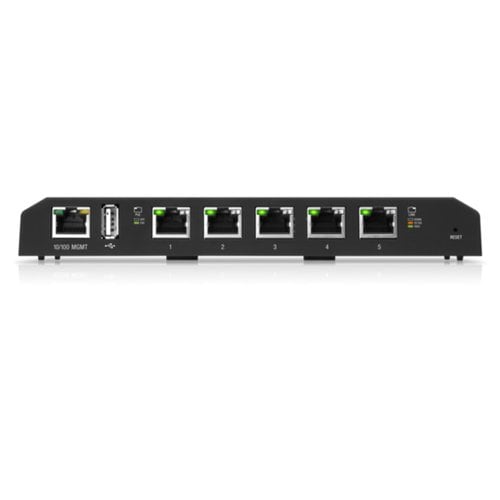

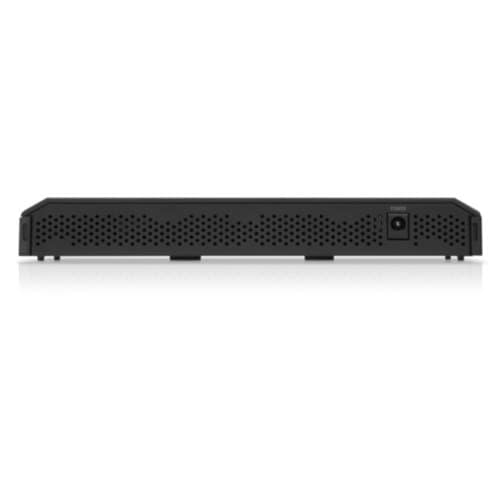

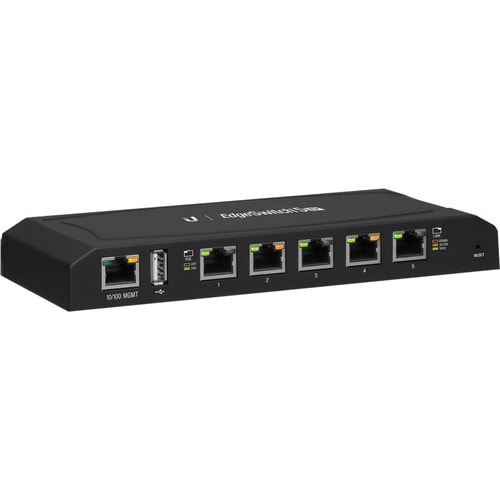

- EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.
- EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software.
- EdgeSwitch 16XP features dual EdgeSwitch 8XP systems in a rack-mountable, 1U form factor with 300 watts of power supporting up to 16 devices.
EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following:
- 8 PoE adapters
- 8 power cords
- 8 power outlets
- 8 Ethernet patch cables
Intuitive Configuration Interface
EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
Advanced Features
EdgeSwitch XP is loaded with a variety of advanced features, including
- Port monitoring
- System connection and management services
- Virtual Local Area Network (VLAN) configuration
- Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)
- Jumbo Frame Support
- Ping Watchdog
- Configurable alerts
Key Features
- 5 Gigabit PoE Ports
- 24V Configurable Passive PoE
- EdgeSwitch XP Configuration Interface
- Wall-Mountable
Dimensions
| Height | 3.2 inches |
|---|---|
| Width | 4.8 inches |
| Length | 8.7 inches |
| Weight | 1.65 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Adapter |
| Layer Supported | 2 |
| Form Factor | Wall Mountable |
| Brand Name | Ubiquiti |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | EdgeSwitch |
| Stack Port | No |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5 |
| Redundant Power Supply Supported | No |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | ES-5XP |
| Manufacturer Website Address | http://www.ui.com |
| Manufacturer | Ubiquiti Inc. |
| Product Model | ES-5XP |
| Product Name | EdgeSwitch ES-5XP Ethernet Switch |
| Product Line | EdgeSwitch |
| Brand Name | Ubiquiti |
| Modular | No |
| Uplink Port | No |
| Stack Port | No |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Layer Supported | 2 |
| Weight (Approximate) | 8.82 oz |
| Height | 1.1" |
| Width | 7.8" |
| Depth | 3.4" |
| Redundant Power Supply Supported | No |
