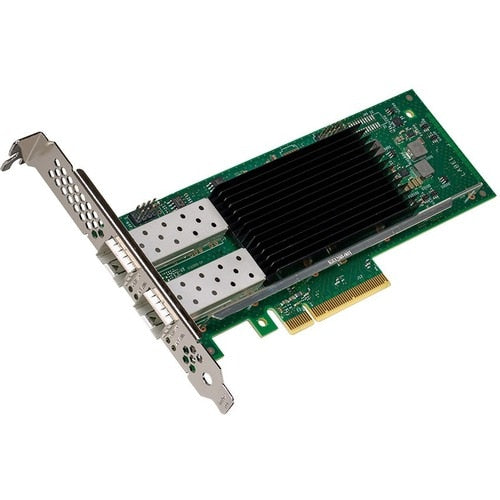

Intel® Ethernet800 Series improve application efficiency and network performance with innovative and versatile capabilities that optimize high-performance server workloads such as NFV, storage, HPC-AI, and hybrid cloud. With two 25GbE SFP28 ports and key performance optimizations, the E810-XXVDA2 supports solutions across Cloud, Enterprise, and Communications.
Performance optimizations for Cloud, Enterprise, and Storage deployments
- Application Device Queues (ADQ) provides dedicated traffic queues to reduce latency and increase application throughput
- Dynamic Device Personalization enables protocol- specific traffic acceleration to improve packet processing efficiency and reduce CPU overhead
- iWARP and RoCEv2 support provides high-speed, low-latency, high-throughput connectivity for storage targets and initiators
Accelerated packet processing for Communications workloads
- Enhanced Data Plane Development Kit (DPDK)support increases packet processing speeds
- Dynamic Device Personalization enables protocol- specific traffic acceleration and reduces CPU overhead for emerging high-bandwidth workloads
- IEEE 1588 PTP v2 support enables precise clock synchronization across 5G RAN deployments
Flexible Configurations
Intel® Ethernet Optics, and specification-compliant Active Optical Cables and Direct Attach Cables, can support multiple configurations.
Key Features
- Dual Port SFP28
- PCI Express (PCIe) 4.0 x8
- Application Device Queues (ADQ)
- Dynamic Device Personalization (DDP)
- Supports both RDMA iWARP and RoCEv2
- IEEE 1588 Precision Time Protocol (PTP)
Dimensions
| Height | 1.25 inches |
|---|---|
| Width | 5.75 inches |
| Length | 9 inches |
| Weight | 0.5 pounds |
| Host Interface | PCI Express 4.0 x16 |
| Product Type | 25Gigabit Ethernet Card |
| Device Supported | Server |
| Form Factor | Plug-in Card |
| Network Technology | 25GBase-CR |
| Network Technology | 25GBase-SR |
| Network Technology | 25GBase-LR |
| Brand Name | Intel |
| Expansion Slot Type | SFP28 |
| Maximum Data Transfer Rate | 25 Gbit/s |
| Product Family | 800 |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | 25Gigabit Ethernet Card |
| Manufacturer Part Number | E810XXVDA2 |
| Manufacturer Website Address | http://www.intel.com |
| Manufacturer | Intel Corporation |
| Product Model | E810-XXVDA2 |
| Product Name | Ethernet Network Adapter E810-XXVDA2 |
| Product Series | 800 |
| Brand Name | Intel |
| Expansion Slot Type | SFP28 |
| Host Interface | PCI Express 4.0 x16 |
| Total Number of Ports | 2 |
| Media Type Supported | Optical Fiber |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Technology | 25GBase-SR |
| Network Technology | 25GBase-LR |
| Network Technology | 25GBase-CR |
| Form Factor | Plug-in Card |
| Bracket Height | Full-height/Low-profile |
| Chipset Manufacturer | Intel |
| Chipset Model | E810-XXVAM2 |
