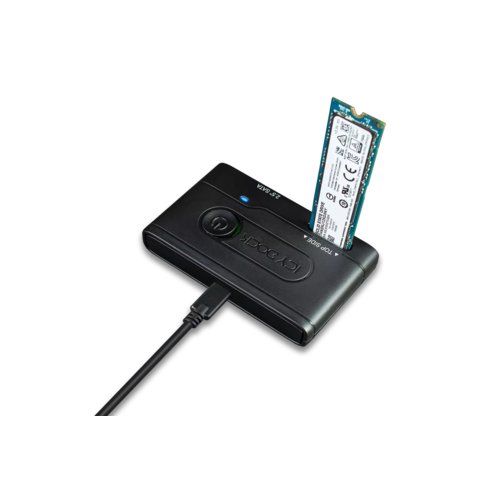

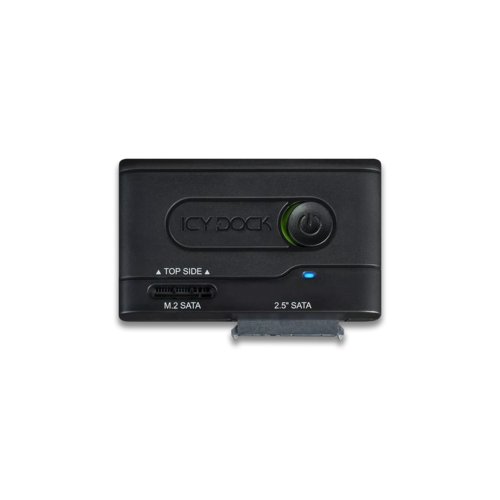

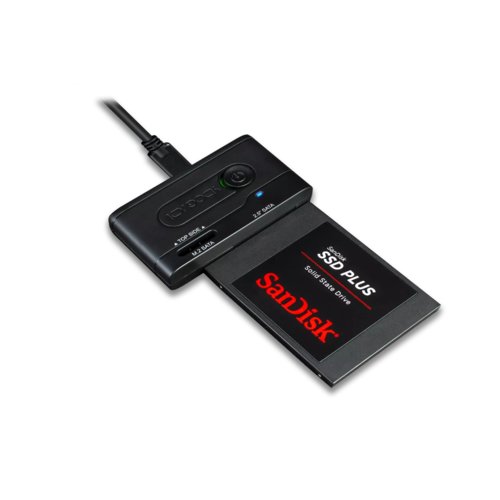

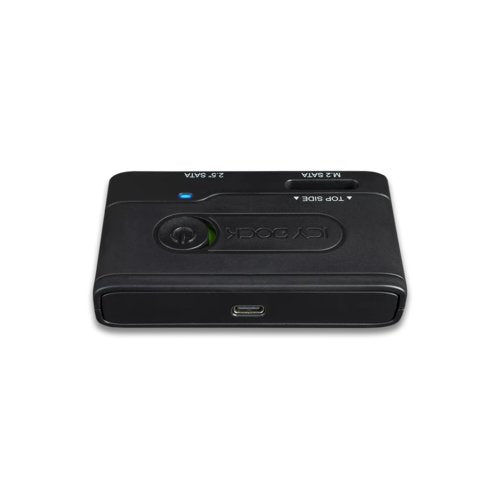

The EZ-Adapter MB031U-1SMB provides users the quickest and the easiest way to access their 2.5-inch SATA HDD/SSD or M.2 SATA SSD through any systems equipped with the USB port.
Key Features
- Plug and Play. Simply connect the 2.5-inch or M.2 SATA drive* to the EZ-Adapter and then plug the USB type C to A cable into the system to immediately start the data transfer.
- The open-air design allows 2.5” and M.2 drive to be fully exposed for best passive heat dissipation.
- The MB031U-1SMB has been engineered for mobility but does not compromise functionality and durability. The adapter is made out of lightweight but durable ABS plastic with a smooth finish.
- The EZ-Adapter comes with a USB type C to A cable and supports data transfer speeds up to 5Gbps via USB 3.2 Gen 1 port. It’s backward compatible with the USB 2.0 ports.
- The EZ-Adapter is equipped with a LED indicator light that shows the drive power and activity. The power switch allows users to power off the drive when it is not used to reduce drive usage
Dimensions
| Height | 1.2 inches |
|---|---|
| Width | 3.8 inches |
| Length | 6.3 inches |
| Weight | 0.25 pounds |
| Host Interface | USB 3.2 (Gen 1) Type C |
| Product Type | Drive Enclosure |
| Form Factor | External |
| Product Line | EZ-Adapter |
| Brand Name | Icy Dock |
| Wireless LAN | No |
| Number of Total Expansion Bays | 1 |
| Number of 2.5" Bays | 1 |
| Drive Interface | M.2 |
| Drive Interface | SATA |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | MB031U-1SMB |
| Manufacturer Website Address | http://www.icydock.com |
| Manufacturer | Icy Dock |
| Product Model | MB031U-1SMB |
| Product Name | 2.5" & M.2 SATA Hard Drive/SSD to USB 3.2 Gen 1 Adapter |
| Product Line | EZ-Adapter |
| Brand Name | Icy Dock |
| Number of Total Expansion Bays | 1 |
| Number of 2.5" Bays | 1 |
| Host Interface | USB 3.2 (Gen 1) Type C |
| Drive Interface | M.2 |
| Drive Interface | SATA |

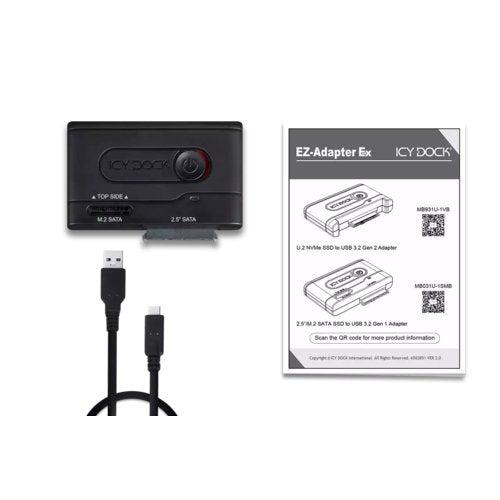

| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Wireless LAN | No |
| Weight (Approximate) | 0.65 oz |
| Form Factor | External |
| Height | 2.4" |
| Width | 3.6" |
| Depth | 0.7" |
| Product Color | Black |
| Color Family | Black |
| Limited Warranty | 3 Year |
| Number of Hard Drives Supported | 1 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
